Product Introduction

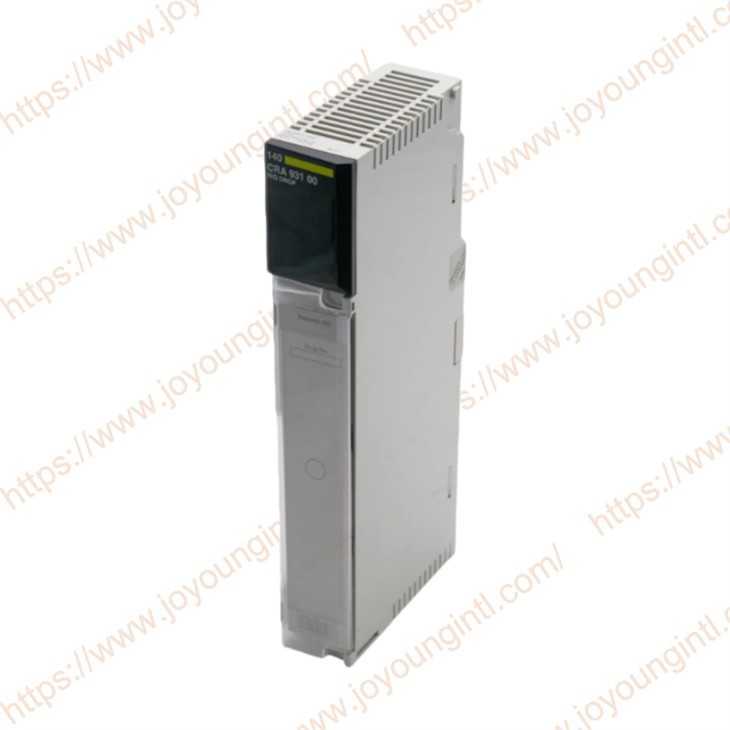

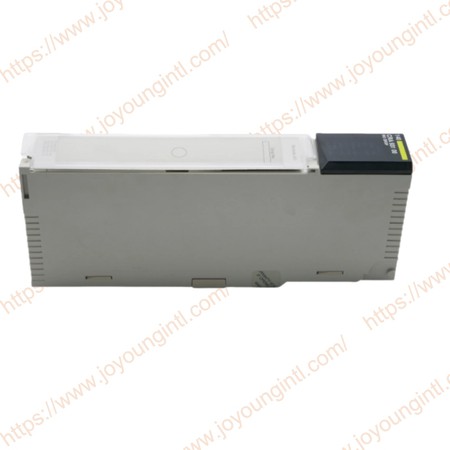

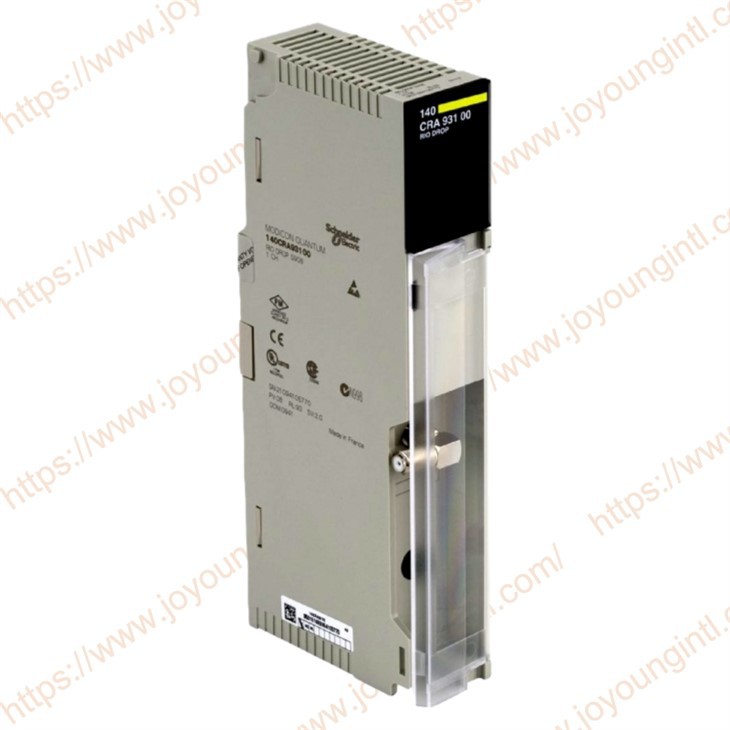

Schneider 140CRA93100 is a RIO (Remote I/O) drop adaptor module designed for use within Quantum automation systems. As a communication bridge between the Quantum series PLC and remote I/O devices, it overcomes the problem of insufficient local I/O points of the PLC and the difficulty in controlling remote devices. Through the RIO network architecture, it establishes connections between remote I/O devices such as sensors, actuators, relays, etc., scattered in different areas of the industrial site and the central PLC.
Technical Specifications
|
Brand |
Schneider |
|
Model |
140CRA93100 |
|
Part Number |
140CRA93100 |
|
Description |
RIO Drop Adaptor Module |
|
Origin |
France |
|
Dimension |
18*13*5cm |
|
Weight |
0.3kg |
Product Details
Efficient Data Transmission and Network Expansion
The 140CRA93100 RIO Drop Adaptor Module supports the integration of up to 27 I/O expansion modules, making it scalable for large automation setups. Its dynamic range of 35 dB and isolation voltage of 500 V DC between the coaxial center and ground provide robust signal integrity and protection from electrical interference. This allows for stable, long-distance communication without compromising data accuracy. The module uses a single female F-elbowed connector with a single coaxial cable, simplifying installation while maintaining connectivity.
Advanced Diagnostic and Power Efficiency Features
The 140CRA93100 RIO Drop Adaptor Module includes built-in diagnostic capabilities that ensure system reliability. It performs executive checksum verification, power-up and runtime diagnostics, and RAM address/data checks, allowing for early detection of potential issues. With a power dissipation of only 3W on a single channel and a bus current requirement of 600 mA, this module offers an energy-efficient solution for remote I/O applications.
Modular design makes it easy to maintain and upgrade
The modular design makes the installation, maintenance, and upgrade of the equipment more convenient. Whether it is daily operations or system adjustments, users can maintain the best performance of the system with the least cost and time investment.
Optimized system monitoring and diagnostic functions
This module is equipped with advanced diagnostic functions, supporting real-time monitoring and providing detailed feedback on operational status. It helps engineers promptly identify potential issues and carry out maintenance, thereby enhancing the stability and reliability of the system.
High reliability and durability
Designed to meet industrial-grade quality standards, the 140CRA93100 RIO Drop Adaptor Module can withstand harsh operating environments, providing long-term trouble-free operation and ensuring the stability and efficiency of the system.
FAQ
Q: What is the power dissipation of the module?
A: The 140CRA93100 is an RIO drop adaptor module that dissipates 3W on a single channel, making it an energy-efficient option for automation systems. That facilitates communication between a Quantum processor and remote I/O expansion modules, ensuring seamless data transfer in an industrial automation system.
Q: What is the module's data transmission rate?
A: The 140CRA93100 operates at a transmission rate of 1544 Mbit/s, ensuring fast and efficient communication within industrial automation networks.
Q: What diagnostic features are included in this module?
A: The module includes executive checksum verification, power-up and runtime diagnostics, and RAM address/data checks, which allow for early detection of issues and maintain system stability.
