Product Introduction

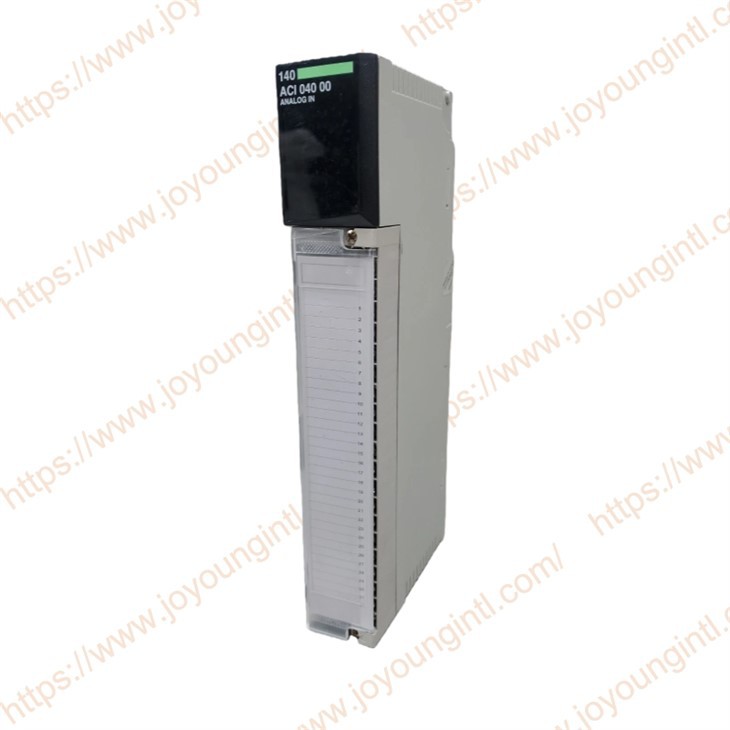

140ACI04000 analog input module is designed for integration with Modicon M340 series PLCS and other compatible automation systems. This module supports up to 16 analog input channels and is capable of handling various types of analog signals, such as voltage (0-10V) and current (4-20mA), and is widely used in multiple fields, including industrial automation, process control, and energy management.
Technical Specifications
|
Brand |
Schneider |
|
Model |
140ACI04000 |
|
Part Number |
140ACI04000 |
|
Description |
Analog Input Module |
|
Origin |
France |
|
Dimension |
18*13*5cm |
|
Weight |
0.3kg |
Product Details
140ACI04000 Main features
Support for multiple input signals
Voltage and current input: 140ACI04000 supports multiple standard analog input signal types, including voltage signals (such as 0-10V) and current signals (such as 4-20mA). This makes it applicable to various on-site sensors and capable of processing data from different devices.
Flexible configuration: Users can select the appropriate input type as needed to meet the requirements of different applications.
16-channel input
The 140ACI04000 Analog Input Module is equipped with up to 16 input channels, providing sufficient input interfaces for complex automation systems to meet the requirements of large-scale monitoring or multi-device connections.
Independent channel isolation: Each input channel is electrically isolated to help avoid signal interference and ensure that multiple signal sources can operate simultaneously without affecting each other.
Fast response: Suitable for applications such as industrial control and process monitoring that require rapid response.
DIN rail installation: The module adopts the DIN rail installation method, which is convenient for installation and disassembly in the industrial control cabinet. This design also supports the expansion and maintenance of the system.
Compatibility with PLC systems: This module has good compatibility with Schneider Electric's Modicon M340 series PLC and other compatible systems, and can be easily integrated into existing automation systems.
Communication and diagnostic functions
Support Modbus protocol: This module supports the Modbus communication protocol (RTU/TCP), ensuring reliable data transmission with PLCS and other devices. Through standard communication interfaces, the system can conveniently exchange data with other devices.
Diagnosis and Status Monitoring: Built-in fault diagnosis and status monitoring functions help users understand the working status of the module in real time, so as to handle possible faults or abnormal situations promptly and improve the reliability of the system.
Environmental adaptability
Operating temperature range: The operating temperature range of the 140ACI04000 module is from -25°C to +70°C, which can adapt to various industrial environments and is suitable for applications under different temperature conditions.
Anti-interference capability: This module is designed with a certain ability to resist electromagnetic interference and can maintain stable performance in complex industrial environments.
Technical specifications
Input signal range
Current input: 4-20mA
Voltage input: 0-10V
The input types supported by each channel can be selected according to the application requirements.
Resolution
12-bit resolution or higher ensures the accurate capture of subtle changes in the input signal.
Sampling speed
It has a moderate signal sampling speed and is suitable for most industrial control and data acquisition applications.
Power supply requirements
Power supply voltage: 24V DC
Power consumption: Low-power design. The specific power requirement can be determined according to the actual configuration.
Operating temperature range
From -25°C to +70°C, suitable for various industrial field environments.
Installation method
The DIN rail installation method complies with industrial standards and facilitates quick and convenient installation and disassembly.
Communication protocol
Supports Modbus RTU/TCP protocol and communicates with PLC and other control systems througRS-48585 or Ethernet interfaces.
Schneider 140ACI04000 Analog Input Module (16‑Channel)
| Parameter | Specification |
|---|---|
| Product Type | Analogue input module |
| Platform | Modicon Quantum automation platform |
| Number of Analog Inputs | 16 channels |
| Input Type | Differential |
| Filter Type | Single pole low pass - 3 dB at 34 Hz ± 25% |
| Addressing Requirement | 17 input words |
| Update Time | ~15 ms (2 wires/4 wires) |
| Absolute Maximum Input | 30 mA |
| Input Impedance | 250 Ohm |
| Bus Current Required | ~360 mA |
| Power Dissipation | ~5 W |
| Module Format | Standard |
| Isolation (Channel to Bus) | 1780 VAC for 60 seconds |
| Common Mode Rejection | > –90 dB @ 60 Hz |
| Weight | ~0.3 kg |
