Product Introduction

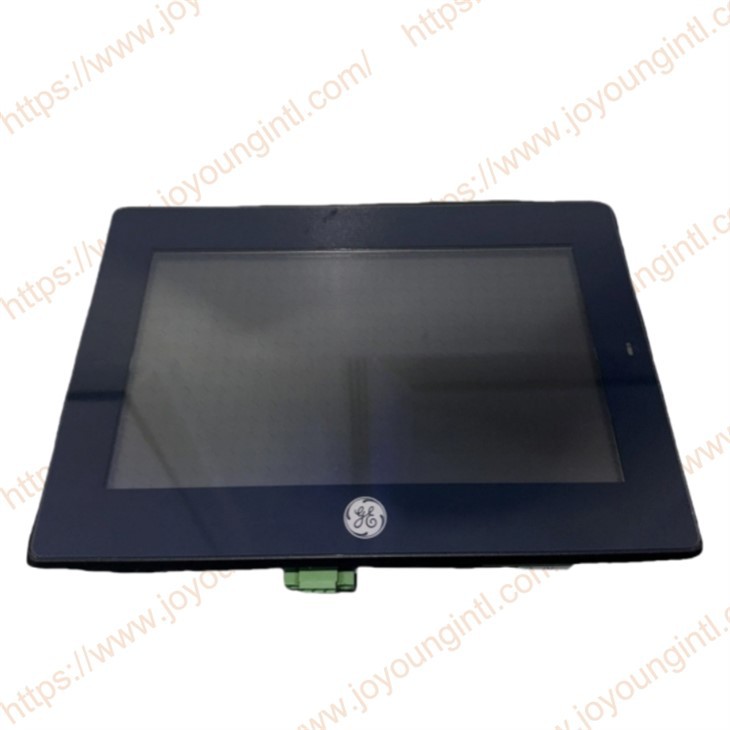

IC755CSW07CDA is an industrial touch screen produced by GE Intelligent Platforms, belonging to the QuickPanel + series. It supports panel mounting or bracket mounting by the VESA 75 standard, which can flexibly adapt to different industrial environments.
Technical Specifications
|
Manufacture |
GE Fanuc
|
|
Model |
IC755CSW07CDA |
| Part Number | IC755CSW07CDA |
|
Description |
QuickPanel+™ Operator Interface for Industrial Internet |
|
Origin |
USA |
|
Dimension |
35*30*10cm |
|
Weight |
2.0kg |
Product Details
IC755CSW07CDA performance and configuration:
Processor: Intel Freescale i.MX535 1GHz ARM Cortex-A8 dual-core processor, which can easily handle 2D and 3D graphics, equipped with neon SIMD media accelerator and vector floating-point coprocessor, which helps to handle graphics-intensive processes and logical operations.
Memory: 512 MB DDR2 SDRAM and 4 GB SLC NAND flash memory, providing sufficient storage space and data processing capabilities.
Communication interface: It has Ethernet, RS-232, RS-485, and USB interfaces, supports a variety of industrial communication protocols, and facilitates data exchange and connection with PLCs, other industrial network devices, and external storage devices.
Operating system: Pre-installed Windows Compact Embedded 7 operating system, providing a friendly user configuration environment, as well as connection functions, terminal management functions, and tools.
Processor: Intel Freescale i.MX535 1GHz ARM Cortex-A8 dual-core processor, which can easily handle 2D and 3D graphics, equipped with neon SIMD media accelerator and vector floating-point coprocessor, which helps to handle graphics-intensive processes and logical operations.
Memory: 512 MB DDR2 SDRAM and 4 GB SLC NAND flash memory, providing sufficient storage space and data processing capabilities.
Communication interface: It has Ethernet, RS-232, RS-485, and USB interfaces, supports a variety of industrial communication protocols, and facilitates data exchange and connection with PLCs, other industrial network devices, and external storage devices.
Operating system: Pre-installed Windows Compact Embedded 7 operating system, providing a friendly user configuration environment, as well as connection functions, terminal management functions, and tools.
Streamline your system and simplify development and maintenance with one powerful device for both your operator interface (OI) and control requirements. The IC755CSW07CDA QuickPanel+ is a multifunctional device that delivers actionable data and insight-smarter, faster, and easier than ever before.
IC755CSW07CDA QuickPanel+ integrates process control, view, and an option to run an embedded data historian to improve real-time control and simplify integration into plant-wide systems. The QuickPanel+ brings machine interfaces into the Industrial Internet age for new levels of productivity, insight, and user experience.
Ordering Information：
|
6" Units
|
|
|
IC755CKS06RDM
|
QuickPanel+ 6" screen with RSTi Modbus TCP
|
|
IC755CKS06RDMEP
|
QuickPanel+ 6" screen with RSTi-EP Modbus TCP
|
|
IC755CSS06RDA
|
QuickPanel+ 6" screen with View and Control
|
|
IC755CBS06RDA
|
QuickPanel+ 6" screen with View and Control (blank bezel)
|
|
IC755CSS06RDACA
|
QuickPanel+ 6" screen with View and Control (conformal coated)
|
|
7" Units
|
|
|
IC755CKW07CDMEP
|
QuickPanel+ 7 " screen with RSTi-EP Modbus TCP
|
|
IC755CKW07CDM
|
QuickPanel+ 7 " screen with RSTi-EP Modbus TCP
|
|
IC755CBW07CDA
|
QuickPanel+ 7" screen with View and Control (blank bezel) |
|
IC755CSW07CDA
|
QuickPanel+ 7" screen with View and Control
|
|
IC755CSW07CDACA
|
QuickPanel+ 7" screen with View and Control (conformal coated)
|
|
10" Units
|
|
|
IC755CKW10CDM
|
QuickPanel+ 10" screen with RSTi Modbus TCP
|
|
IC755CKS10CDMEP
|
QuickPanel+ 10" screen with RSTi-EP Modbus TCP
|
|
IC755CSS10CDA
|
QuickPanel+ 10" screen with View and Control
|
|
IC755CBS10CDA
|
QuickPanel+ 10" screen with View and Control (blank bezel)
|
|
IC755CSS10CDACA
|
QuickPanel+ 10" screen with View and Control (conformal coated)
|
|
12" Units
|
|
|
IC755CKS12CDMEP
|
QuickPanel+ 12 " screen with RSTi-EP Modbus TCP
|
|
IC755CKW12CDM
|
QuickPanel+ 12" screen with RSTi Modbus TCP
|
|
IC755CSS12CDB
|
QuickPanel+ 12" screen with View and Control
|
|
IC755CBS12CDB
|
QuickPanel+ 12" screen with View and Control (blank bezel)
|
|
IC755CSS12CDBCA
|
QuickPanel+ 12" screen with View and Control (conformal coated)
|
|
15" Units
|
|
|
IC755CKS15CDMEP
|
QuickPanel+ 15 " screen with RSTi-EP Modbus TCP
|
|
IC755CKW15CDM
|
QuickPanel+ 15" screen with RSTi Modbus TCP
|
|
IC755CSS15CDA
|
QuickPanel+ 15" screen with View and Control
|
|
IC755CBS15CDA
|
QuickPanel+ 15" screen with View and Control (blank bezel)
|
|
IC755CSS15CDACA
|
QuickPanel+ 15" screen with View and Control (conformal coated)
|
