Product Introduction

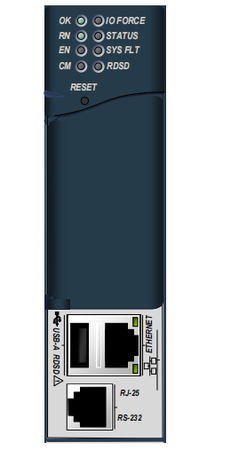

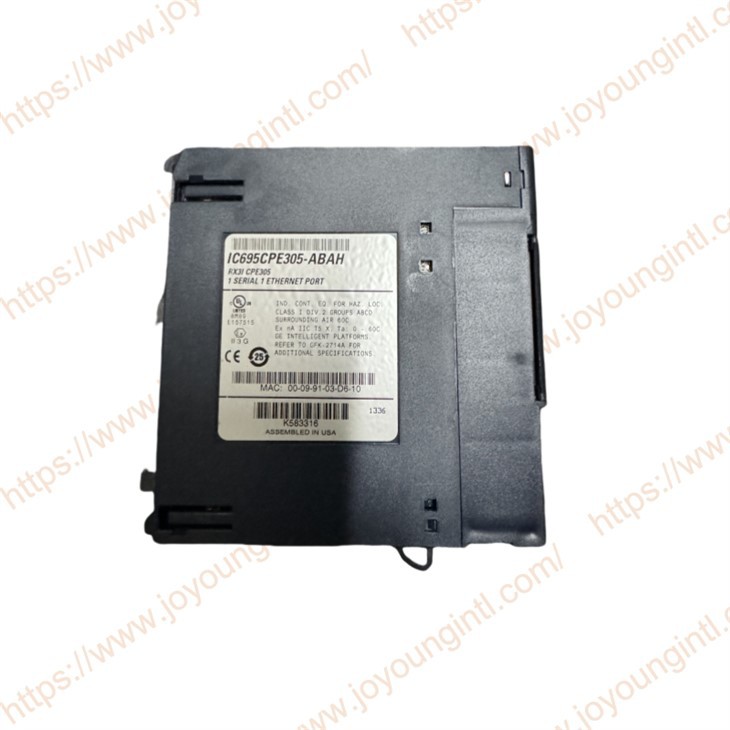

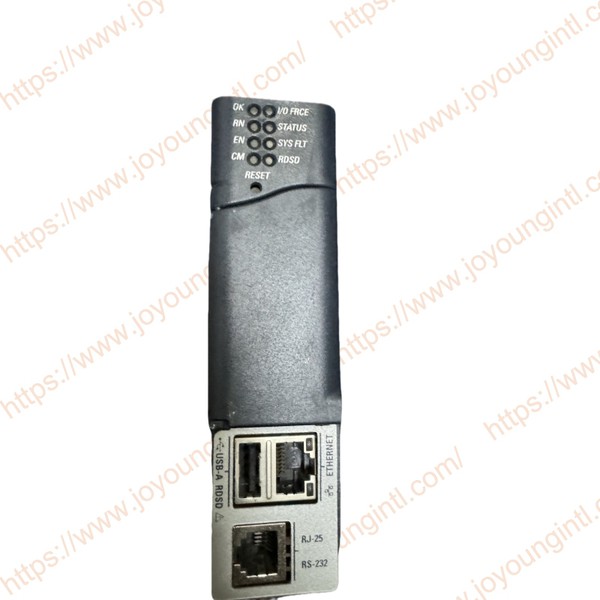

The PACSystems*RX3i IC695CPE305 can be used to perform real-time control of machines, processes, and material handling systems. The CPU communicates with the programmer via the internal Ethernet port or a serial port. It communicates with I/O and Intelligent Option modules over a dual PCI/Serial backplane.
Technical Specifications
|
Manufacture |
GE Fanuc
|
|
Model |
IC695CPE305 |
| Part Number | IC695CPE305 |
|
Description |
RX3I CPU SINGLE SLOT W/ ETHERNET |
|
Origin |
USA |
|
Dimension |
25*20*8cm |
|
Weight |
0.55kg |
Product Details
GE Fanuc IC695CPE305 RX3I CPU SINGLE SLOT W/ ETHERNET Features：
■Contains 5 Mbytes of user memory and 5 Mbytes of non-volatile flash user memory.
■Battery-less retention of user memory.
■Optional Energy Pack,* which, on system power loss, powers CPU long enough to write user memory to non-volatile storage (NVS).
■Configurable data and program memory.
■Programming in Ladder Diagram, Structured Text, Function Block Diagram, and C.
■Supports auto-located Symbolic Variables that can use any amount of user memory.
■Reference table sizes include 32Kbits for discrete %I and %Q and up to 32Kwords each for analog %AI and %AQ.
■Supports most Series 90-30 modules and expansion racks. For supported I/O, Communications, Motion, and Intelligent modules, see the PACSystems RX3i Hardware and Installation Manual, GFK-2314.
■Supports up to 512 program blocks. The maximum size for a block is 128 KB.
■An RS-232 serial port
■Embedded Ethernet interface supports a maximum of two programmer connections.
■Rack-based Ethernet Interface module(IC695ETM001) supports a complete set of Ethernet functionality. For details, see TCP/IP Ethernet Communications, GFK-2224.
■Time synchronization to SNTP Time Server on Ethernet network when used with a rack-based Ethernet module (IC695ETM001) version 5.0 or later.
■Ability to display serial number and date code in the programmer Device Information Details.
■Ability to transfer applications to and from USB 2.0 A-type compatible RDSDs (removable data storage devices).
■Compliant with EU RoHS Directive 2002/95/EC using the following exemptions identified in the Annex: 7(a), 7(c)-I and III, and 15.
Ordering Information：
|
Description
|
Catalog Number
|
|
RX3i 1.1GHz CPU
|
IC695CPE305
|
|
Standard Pwr Supplies
120/240VAC, 125VDC
24VDC
|
IC695PSA040
IC695PSD040
|
|
Multifunctional Pwr Supplies
120/240 VAC, 125 VDC
24 VDC
|
IC695PSA140
IC695PSD140
|
|
Rx3i Universal Backplane
7 Slot
12 Slot
16 Slot
|
IC695CHS007
IC695CHS012
IC695CHS016
|
|
Real Time Clock Battery
|
IC690ACC001
|
|
RX3i CPU Energy Pack
|
IC695ACC400
|
|
Energy Pack Cable
|
IC695CBL001
|
|
RS-232 cable
|
IC693CBL316
|
|
Note: For the Conformal Coat option, please consult the factory for price and availability.
|
|
Release History：
|
Catalog Number
|
FW Version
|
Comments
|
|
IC695CPE305-ABAC
|
7.13
|
Corrects issues with Logic Write to Flash (Service Request 57).
|
|
IC695CPE305-ABAB
|
7.11
|
Resolves the issues detailed in GFK-2714A.
|
|
IC695CPE305-AAAA
|
7.10
|
Initial release.
|
