Product Introduction

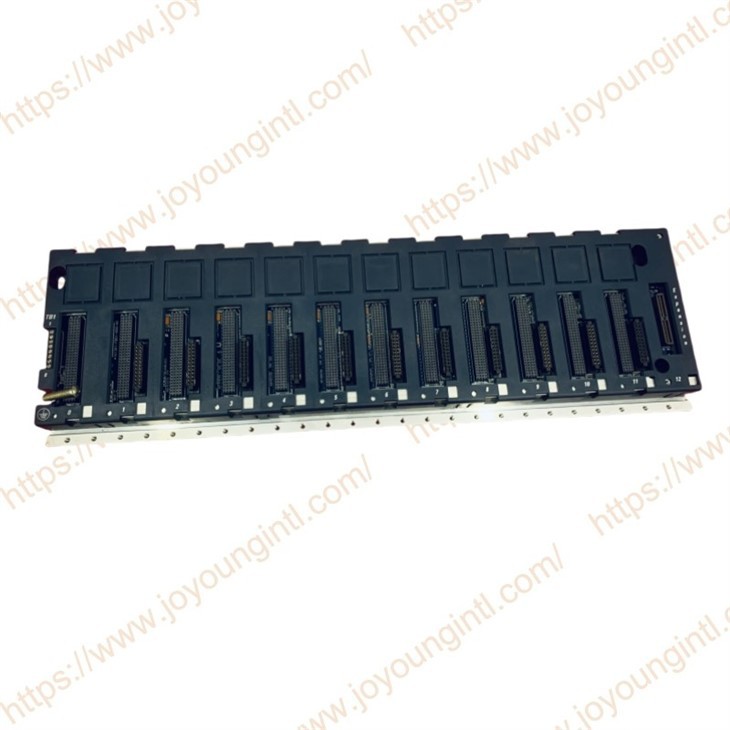

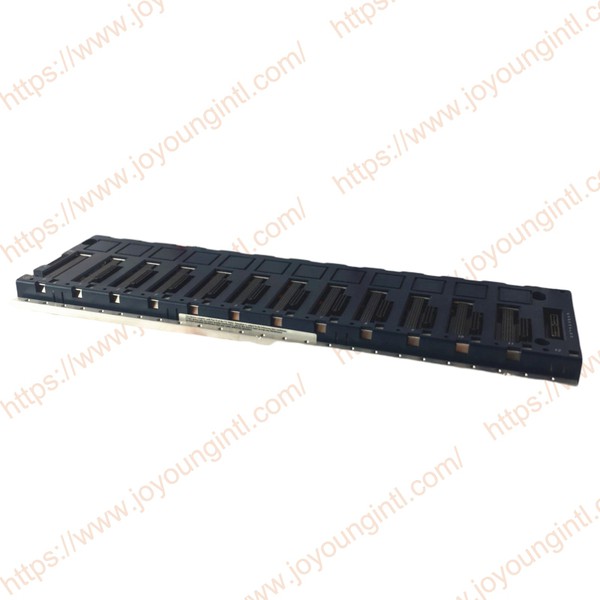

IC695CHS012 is a 12-slot universal backplane module for the GE Fanuc RX3i PACSystems series, supporting PCI (IC695) and serial (IC694) based I/O and option modules, and also supports GE Series 90 - 30 I/O modules and option modules. Supports hot swapping of modules, allowing modules to be replaced while the system is running, reducing downtime and facilitating maintenance.
Technical Specifications
|
Manufacture |
GE |
|
Model |
IC695CHS012 |
| Part Number | IC695CHS012 |
|
Description |
Rx3i PAC System slot universal base |
|
Origin |
USA |
|
Dimension |
14*12*3cm |
|
Weight |
0.5kg |
Product Details

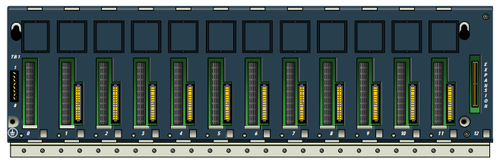

The RX3i Universal Backplane supports both PCI-based (IC695) and serial (IC694) I/O and option modules with its dual-bus backplane. The RX3i Universal Backplane also supports 90-30 IO and option modules. See the PACSystems RX3i System Manual, GFK-2314, for lists of supported modules. Features of the Universal Backplane include:
▪ Terminal Strip on the left end for Isolated +24V input
▪ Backplane grounding point
▪ An integral grounding bar for connecting module/shield grounds
▪ Serial Expansion connector for connection to Serial Expansion and Remote Backplanes
▪ Slot numbers are printed on the backplane that can be used as a reference for configuration.
Release History：
|
Catalog Number
|
Date
|
Description
|
|

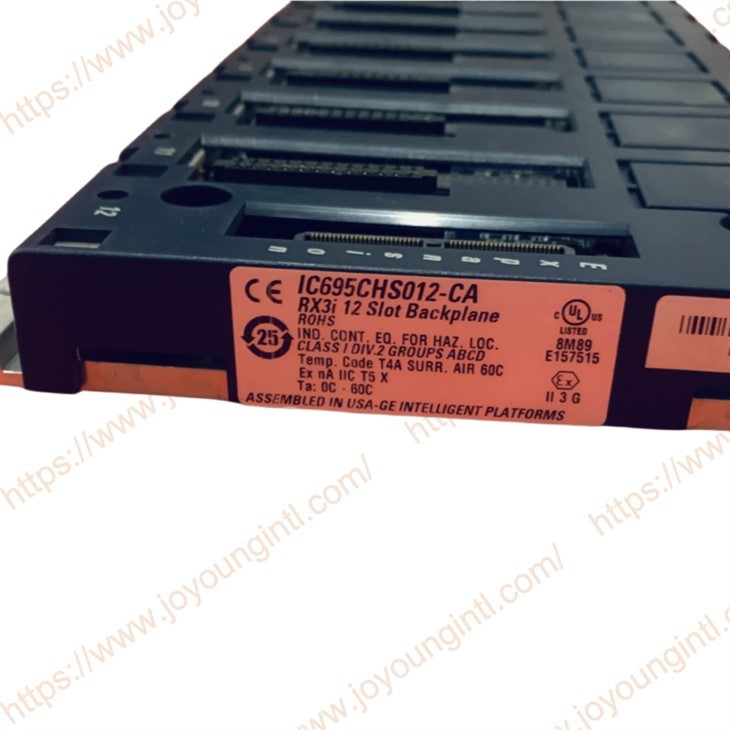

IC695CHS012-CA
|
April 2009
|
Hardware changes for EU-RoHS compliance
|
|
IC695CHS012-BAMP
|
February 2009
|
Improved immunity against environmental noise
|
|
IC695CHS012-BA
|
September 2007
|
ATEX approval for Group 2, Category 3 applications.
|
|
IC695CHS012A
|
August 2004
|
Initial product release
|
Installation in Hazardous Locations：
▪WARNING - EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR
CLASS I, DIVISION 2;
▪WARNING - EXPLOSION HAZARD - WHEN IN HAZARDOUS LOCATIONS, TURN OFF POWER BEFORE
REPLACING OR WIRING MODULES, AND
▪WARNING - EXPLOSION HAZARD - DO NOT CONNECT OR DISCONNECT EQUIPMENT UNLESS POWER
HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NONHAZARDOUS.
▪EQUIPMENT LABELED CONCERNING CLASS I, GROUPS A, B, C & D, DIV. 2 HAZARDOUS
LOCATIONS ARE SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C, D, OR NON-HAZARDOUS
LOCATIONS ONLY
