Product Introduction
The High-speed Counter module, IC694APU300, provides direct processing of rapid pulse signals up to 80 kHz. The module senses inputs, processes the input count information, and controls the outputs without needing to communicate with a CPU.
Technical Specifications
|
Manufacture |
GE |
|
Model |
IC694APU300 |
| Part Number | IC694APU300 |
|
Description |
High-speed counter module |
|
Origin |
USA |
|
Dimension |
18*18*5cm |
|
Weight |
0.25kg |
Product Details
High-speed Counter Module: IC694APU300
The High Speed Counter uses 16 bits of discrete input memory (%I), 15 words of analog input memory (%AI), and 16 bits of discrete output memory (%Q) in the CPU. The High-speed Counter can be configured to have:
▪4 identical, independent simple counters
▪2 identical, independent, more complex counters
▪1 complex counter

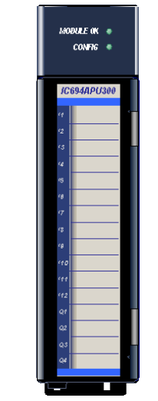

Two green LEDs indicate the operating status of the module and the status of configuration parameters. Additional module features include:
▪12 positive logic (source) inputs with input voltage range selection of either 5 VDC or 10 to 30 VDC
▪4 positive logic (source) outputs
▪Counts per timebase register for each counter
▪Internal module diagnostics
▪A removable terminal board for field wiring
Inputs can be used as count signals, direction, disable, edge-sensitive strobe, and preload inputs, depending on the counter type selected by the user. Outputs can be used to drive indicating lights, solenoids, relays, and other devices.
Power for the module is drawn from the backplane's 5VDC bus. Power sources for input and output devices must be supplied by the user or by the +24 VDC Isolated output of the power supply. The module also provides a selectable threshold voltage to allow the inputs to respond to either 5VDC signal levels or 10 to 30VDC signal levels.

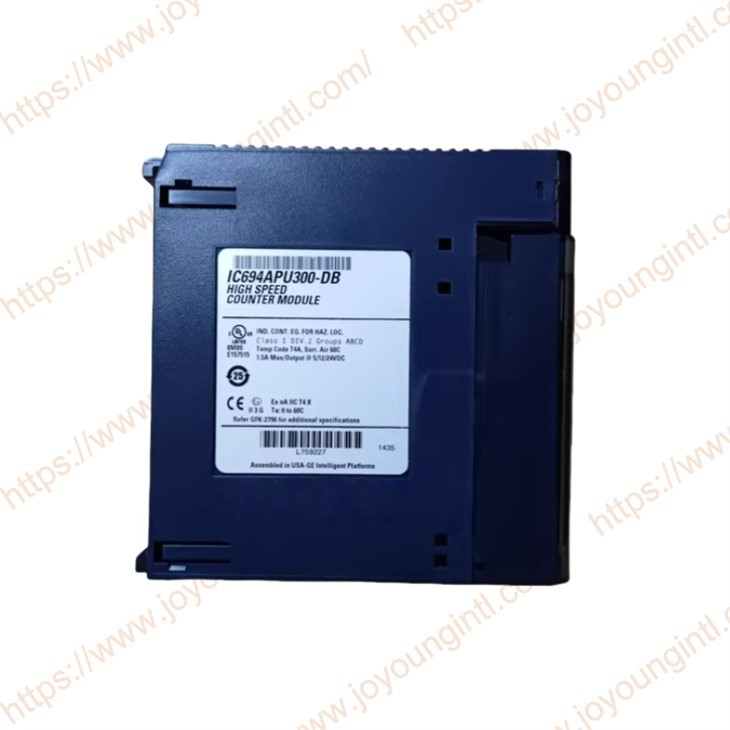

The blue bands on the label show that APU300 is a low-voltage module. This module can be installed in any I/O slot in an RX3i system.
