Product Introduction

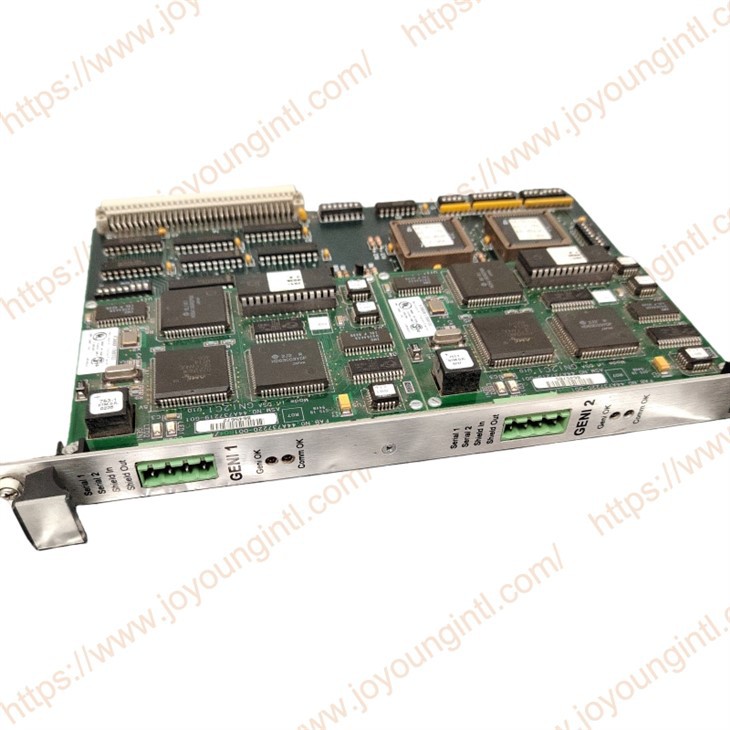

HE700GEN200 is a crucial control system module within General Electric (GE Fanuc). It belongs to the Genius Bus I/O expansion and VME bus interface type of equipment, and is used in industrial automation, process control, and embedded data processing systems. It is not a single I/O input/output module, but an industrial-level interface bridge and distributed I/O expansion unit.
Technical Specifications
|
Manufacture |
GE |
|
Model |
HE700GEN200 |
| Part Number |
HE700GEN200C |
|
Description |
Interface Module |
|
Origin |
USA |
|
Dimension |
30*20*6cm |
|
Weight |
0.35kg |
Product Details
As an industrial module, the HE700GEN200 exhibits general performance in terms of vibration resistance, electromagnetic interference resistance, and temperature adaptability, which complies with industrial standards (-20 °C to +60 °C). It is suitable for installation in control cabinets but not for direct use in unprotected on-site environments.
Product Parameters:
Power supply voltage: 24V DC
Power consumption: 5W
Operating temperature: -40°C to +85°C
Storage temperature: -40°C to +125°C
Relative humidity: 5% to 95% (non-condensing)
Protection level: IP67
Number and Type of I/O Points:
Number of I/O points: 20
I/O type: Configurable as digital input, digital output, analog input, or analog output
Voltage Range and Resolution:
Digital input: 24 VDC
Digital output: 24 VDC
Analog input: 0-10V or ±10V
Analog output: 0-10V or ±10V
Resolution: Input analog/output: 16 bits
Functions and Applications:
HE700GEN200 is mainly used to connect and transmit control signals, data, and instructions to achieve collaborative work and automatic control between devices
Technical Features:
1) High-speed transmission: Adopt high-speed communication technology to achieve fast data transmission and instruction delivery, and improve the response speed and efficiency of the control system
2) Multiple interfaces: Support multiple communication interfaces, such as Ethernet, serial port, CAN bus, etc., which can be connected and communicated with various devices and systems
3) Strong compatibility: Compatible with a variety of industrial automation control systems and equipment, convenient for integration with existing systems, and reduces transformation costs
4) High reliability: Adopt high-quality materials and manufacturing processes, with high stability and reliability, and can run stably for a long time in harsh industrial environments
5) Easy programming: Support multiple programming languages and development tools, convenient for users to program and debug
Procurement and Usage Suggestions
Contact: info@htechplc.com
Check for compatibility
Confirm that the control system is VME or compatible with VME architecture.
Confirm the existence of the Genius Bus network or similar protocols.
Determine that the controller (such as PLC series) can recognize the Genius interface address. If used solely in PAC/PLC systems (such as RX3i), an additional protocol conversion component is required, and it may not be directly compatible with HE700GEN200.
DIP switch configuration
The correctness of the on-site DIP switch configuration is of vital importance for the stability of communication:
✔ I/O addresses
✔ Interrupt vectors
✔ Communication channel selection
✔ Address duplication avoidance
Incorrect configuration may cause the system to be unable to communicate for an extended period of time.
Have Any Questions About HE700GEN200
Which module does it belong to?
1. Genius Bus Dual Channel Interface Module
2. A communication bridge device for bus centralization in the control architecture of GE Fanuc series (such as VME control framework)
The HE700GEN200 supports a dual-channel Genius Bus interface.
It can simultaneously handle I/O data exchange from two bus segments.
It enhances the communication bandwidth and redundancy of the system.
It enables chain (Daisy-chain) device connection, supporting up to 32 Genius Bus device nodes.
The device address and interrupt destination address can be quickly configured through DIP switches (no complex software configuration required on-site).
Main features of the product
Dual-channel Genius interface - Offers greater communication flexibility and scalability
DIP switch configuration - Simplifies on-site parameter settings, eliminating the need for dedicated debugging software and hardware
VMEbackplane compatibility - Enables direct bus data exchange with GE controller modules (such as PLC/CPU)
Adaptation to industrial environment - Design emphasizes resistance to vibration, interference, dust, and moisture, suitable for installation in field control cabinets
