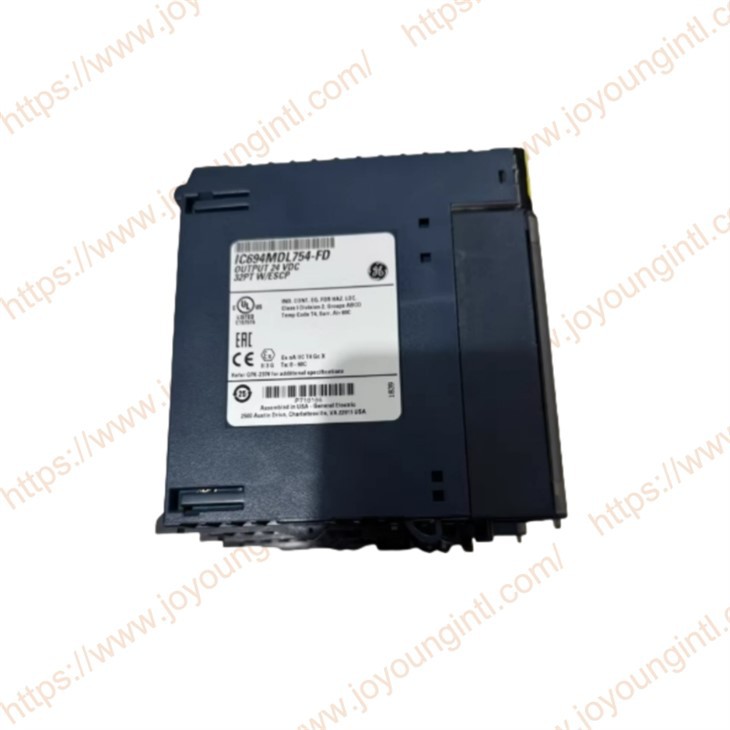

IC694MDL754 Output Module 32 Point

1) Support for positive logic Sourcing output
The output signal of IC694MDL754 32-point DC voltage output module, is positive pole drive (commonly used to drive relay coils, lamps, valves, relays, etc., as loads).
This positive drive method has a clear logic and simple wiring, and it is also a standard configuration in the industrial control field.
2) Wide voltage and current support
Supports a wide output voltage range of 10.2 - 30 VDC, ensuring stable output even when the supply power fluctuates slightly.
Each point can handle a maximum current of 0.75 A, capable of driving common DC relays, contactor coils, small solenoid valves, or sensors,s and other devices.
3) Rapid response performance
The single-point on/off response time is as fast as 0.5 milliseconds, which is conducive to the rapid execution of control logic and the high-frequency switching of loads.
4) Strong Isolation Design
There is high voltage isolation protection between the output groups and between the on-site end and the backplane (250 VAC for continuous duration; 1500 VAC for 1 minute withstand voltage), enhancing the anti-interference ability and safety.
5) Multi-layer automatic protection mechanism
Built-in electronic short-circuit protection (ESCP), overcurrent protection, and overtemperature protection, and all these protections are of the self-recovery type, to prevent long-term downtime due to transient faults.
6) Status Indication and Diagnostic Feedback
Each output point is usually equipped with a status LED indicator (which may vary depending on the specifications of different suppliers), allowing for an intuitive on-site view of the point status.
The IC694MDL754 32-point DC voltage output module can also send fault information back to the CPU, which is used for diagnostic alarms or maintenance.

1. The output resource allocation is more compact, which helps to optimize the utilization of control cabinet space.
IC694MDL754 32-point DC voltage output module integrates 32 DC output channels in a single slot, which helps reduce the number of modules in control systems with a large number of I/O points.
In the design of control cabinets with limited space, this high-density structure is conducive to improving the concentration of wiring and simplifying the system structure planning.
2. The group isolation structure helps enhance the flexibility of system wiring.
The IC694MDL754 32-point DC voltage output module is designed with two independent 16-point output groups, each with its own common terminal.
This grouping method enables different circuits or different load categories to be connected separately, which is helpful for:
Carry out regional control
Utilize different external power supply circuits
Reduce the mutual influence between the circuits
In multi-loop control systems, this structure is more conducive to electrical planning.
3. Response speed applies to conventional automated control scenarios
The typical switching response time of the module is within the millisecond range, which can meet the requirements for discrete signal switching in most industrial automation systems.
For load control scenarios such as relays, contactors, and solenoid valves, this response performance can be coordinated with PLC programs to achieve stable control logic.
