Product Introduction

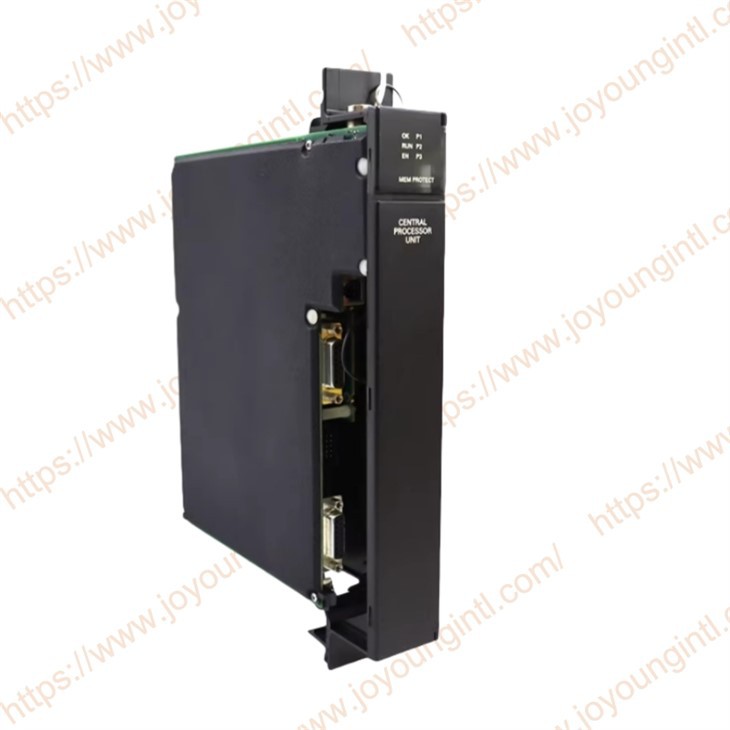

The IC697CPX928 is a single slot PLC CPU that is programmed and configured by MS-DOS or Windows based programming software to perform real time control of machines, processes, and material handling systems. It communicates with I/O and smart option modules over the rack-mounted backplane using the VME C.1 Standard format. Supported option modules include LAN Interface modules, Programmable Coprocessor, Alphanumeric Display Coprocessor, Bus Controller for IC660/661 I/O products, Communications modules, I/O Link Interface, and all of the IC697 family of discrete and analog I/O modules.
Technical Specifications
|
Manufacture |
GE |
|
Model |
IC697CPX928 |
| Part Number | IC697CPX928 |
|
Description |
Central Processing Unit |
|
Origin |
USA |
|
Dimension |
20*15*5cm |
|
Weight |
0.45kg |
Product Details
IC697CPX928 Features:
*Single slot CPU with three serial ports
*Provides 6 Mbytes of battery-backed memory in the same slot
*Contains 256K of non-volatile user flash memory
*Supports BMA in release 7.92 and later Supports floating point calculations
*12K inputs and outputs (any mix), and up to 8K analog I/O
*0.4 microseconds per boolean function
*96 MHz, 80486DX4 microprocessor
*Supports IC66 (can be IC660 or IC661) and IC697 I/O
*Programmed by MS-DOS software products, or Windows based software products running on Windows 95 or Windows NT over Ethernet TCP/IP or through an SNP port
*Configurable data and program memory
*Battery-backed calendar clock
*Three position operation mode switch
*Password controlled access
*Remote programmer keyswitch memory protection
*Seven status LEDs
*Software configuration (No DIP switches or jumpers)

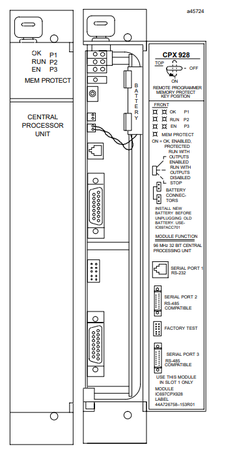

*Reference information inside front door
*In-system upgradable firmware
Operation of this module can be controlled by the three-position RUN/STOP switch or remotely by an attached programmer and programming software. Program and configuration data can be locked through software passwords or manually by the memory protect keyswitch. When the key is in the protected position, program and configuration data can only be changed by a programmer connected parallel only (to the Bus Transmitter module). The status of a CPU is indicated by the seven green LEDs on the front of the module.
The IC697CPX928 requires forced air cooling for proper operation in ambient temperatures greater than 50C (122F). A fan capable of 70 CFM (including filters) should be located beneath slot 1 of the rack containing the CPU.
Fan assemblies (IC697ACC 721, IC697ACC724, and IC697ACC744) can be ordered for direct mounting on the IC697 rack. Refer to the applicable Programmable Controller Installation Manual for detailed information.
