Description
Technical Parameters
Product Introduction
The GE IC694TBB032 is a terminal block assembly for the PACSystem RX3i series of programmable automation controllers. It is primarily intended for use with high-density I/O modules, especially discrete input and output modules, and is also compatible with some 90-30 series I/O modules. The module has terminal blocks doors on the front and an open-frame design on the rear. The outer shell of the block has thicker insulation than the interior to accommodate thicker wires.
Technical Specifications
|
Manufacture |
GE |
|
Model |
IC694TBB032 |
| Part Number | IC694TBB032 |
|
Description |
Rx3i PAC System Terminal Box Style |
|
Origin |
USA |
|
Dimension |
13*8*5cm |
|
Weight |
0.2kg |
Product Details

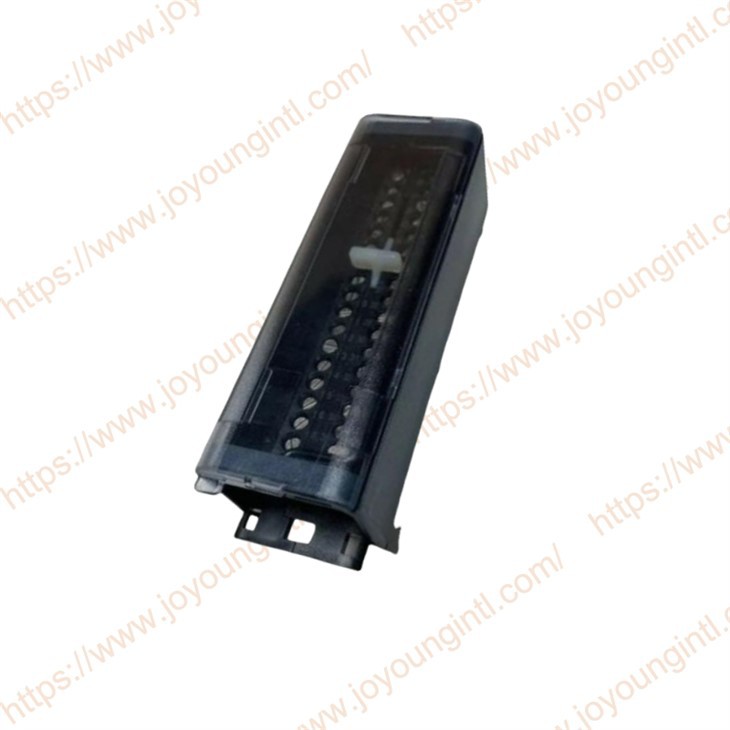

GE Fanuc IC694TBB032 Rx3i PacSystem Box Style High Density Terminal Block

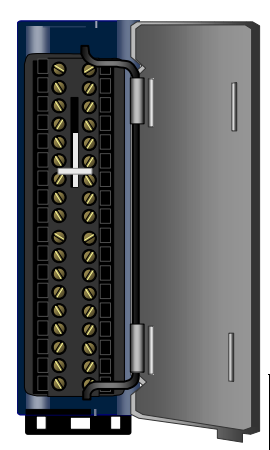

Box-style Terminal Blocks, IC694TBB032 and
IC694TBB132, are used with high-density PACSystems RX3i modules and equivalent Series 90-30 PLC modules.These terminal blocks provide 36 screw terminals for field wiring to the module.
Terminal Blocks IC694TBB032 and TBB132 are functionally identical. Terminal Block IC694TBB032 comes with a standard-depth outer cover. When installed, it is the same depth as most other PACSystems and Series 90-30
PLC modules.
Extended Terminal Block IC694TBB132 comes with an outer cover that is approximately ½-inch (13mm) deeper than Terminal Block IC694TBB032, to accommodate wires with thicker insulation, such as that typically used with AC I/O modules.
|
Terminal Block Type
|
Catalog Number
|
|
Box-style Terminal Block, 36 pins, One
|
IC694TBB032
|
|
Spring-style Terminal Block, 36 pins, One
|
IC694TBS032
|
|
Extended Box-style Terminal Block, 36 pins, One
|
IC694TBB132
|
|
Extended Spring-style Terminal Block, 36 pins, One
|
IC694TBS132
|
Connecting Field Wiring to a Box-Style High-density Terminal Block

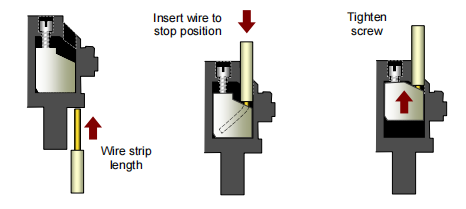

The bottom of the terminal block can be used as a gauge for the wire strip length, as shown below. The stripped wire must be fully-inserted into the terminal block so that the insulation meets the stop position inside the terminal, and the end of the wire is bent. Tightening the terminal screw raises the wire and clamps it in place.
