Product Introduction

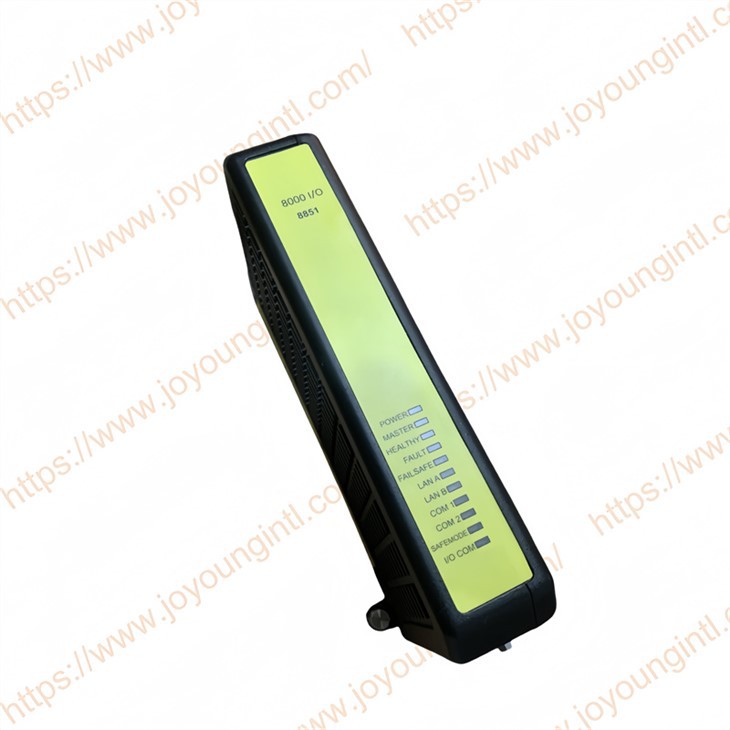

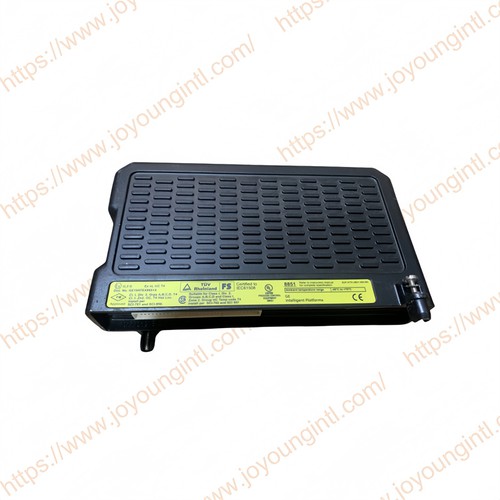

GE 8851-LC-MT SafetyNet Controller is mainly used to implement safety-related control functions, such as emergency stop, safe speed limit, safe direction control, etc., to ensure the safety and reliability of industrial processes. It adopts a modular design, users can flexibly configure and expand the system according to specific application requirements, and easily achieve seamless integration with other GE automation components to build a comprehensive automation control system.
Technical Specifications
|
Manufacture |
GE |
|
Model |
8851-LCMT |
| Part Number | 8851-LC-MT |
|
Description |
SafetyNet series safety controller module |
|
Origin |
Germany |
|
Dimension |
25*15*4cm |
|
Weight |
0.25kg |
Product Details
Support for redundancy and uninterrupted switching: The equipment can be configured in a redundant primary/backup mode, featuring a non-interfering (bumpless) switching function, which significantly enhances system availability and fault tolerance.
Dual redundant high-speed Ethernet communication: Built-in dual 10/100/1000 Mbps redundant Ethernet ports, achieving high reliability and strong fault tolerance for on-site network communication, and capable of seamless integration with upper-level systems, HMI, or SCADA systems.
Rich interface and protocol support: In addition to Ethernet, the controller also supports multiple serial port communications, providing greater flexibility for device connection and parameter monitoring.
Online configuration and hot-swappable maintenance: Supports online configuration updates and module hot-swapping, significantly enhancing on-site maintenance efficiency and avoiding production losses caused by maintenance shutdowns.
Event recording and diagnostic support: It can record up to 8,000 system events, providing detailed data support for on-site fault analysis and security audits.
How to select and purchase GE 8851-LC-MT
1. Confirm the security level requirements
The 8851-LC-MT complies with the IEC 61508 SIL 2 safety standard and is suitable for functional safety systems in general industrial settings (such as emergency shutdown, interlock protection, etc.).
2. Verify I/O expansion and communication requirements
Based on the number of on-site I/Os and the I/O module quantity required by the communication topology planning 8851-LC-MT (which supports up to 64 I/O units). At the same time, it is necessary to confirm whether the dual Ethernet ports of the controller meet the requirements of the network topology and protocol (supporting redundant LAN and interconnection with the upper system).
3. Matching the carrier with the power components
The 8851-LC-MT controller must be installed on a dedicated carrier platform (such as the Emerson 8751-CA-NS Controller Carrier), ensuring compatibility of power supply, communication, and the frame structure. Additionally, an 8913-PS-AC 12VDC power module is required to supply power to the controller.
4. Consider logistics, delivery ttimee and inventory status
Since this type of safety controller is a key component in industrial automation, the inventory may be limited. It is recommended to confirm the supply cycle, transportation method, and customs clearance requirements in advance to avoid project delays.
