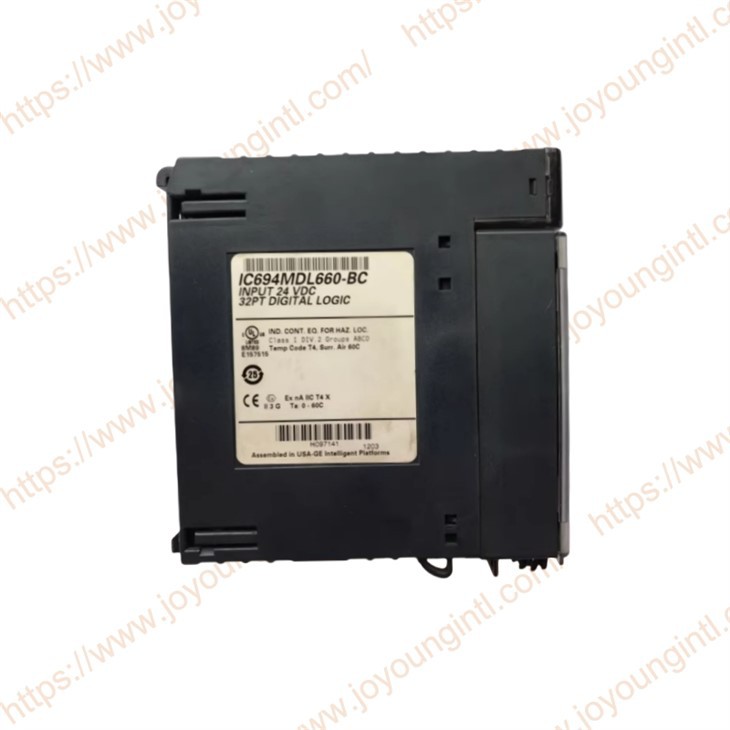

Specification Details
|
Manufacture |
GE |
| Part Number |
IC694MDL660-BC |
|
Description |
Digital Input Module |
|
Origin |
USA |
|
Dimension |
18*18*5cm |
|
Weight |
0.25kg |

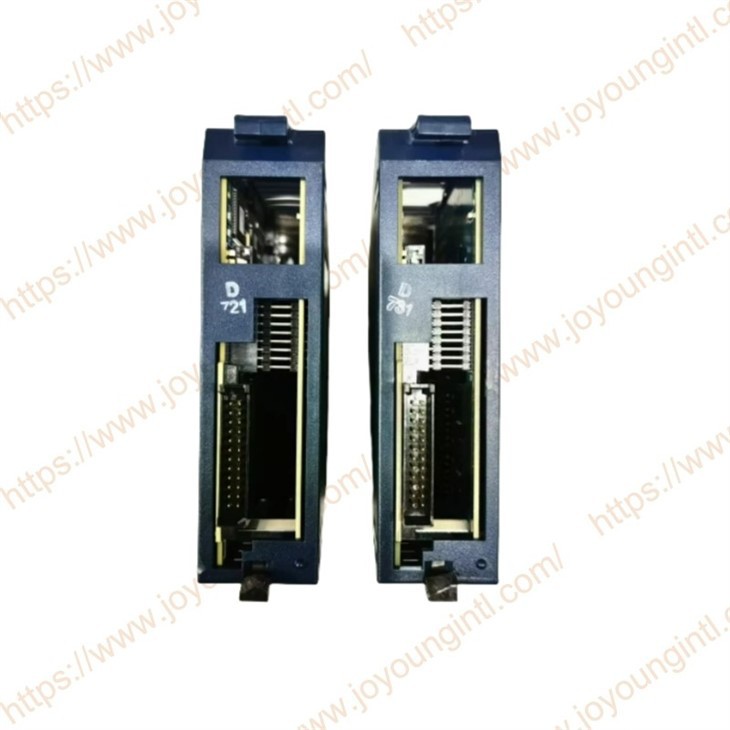

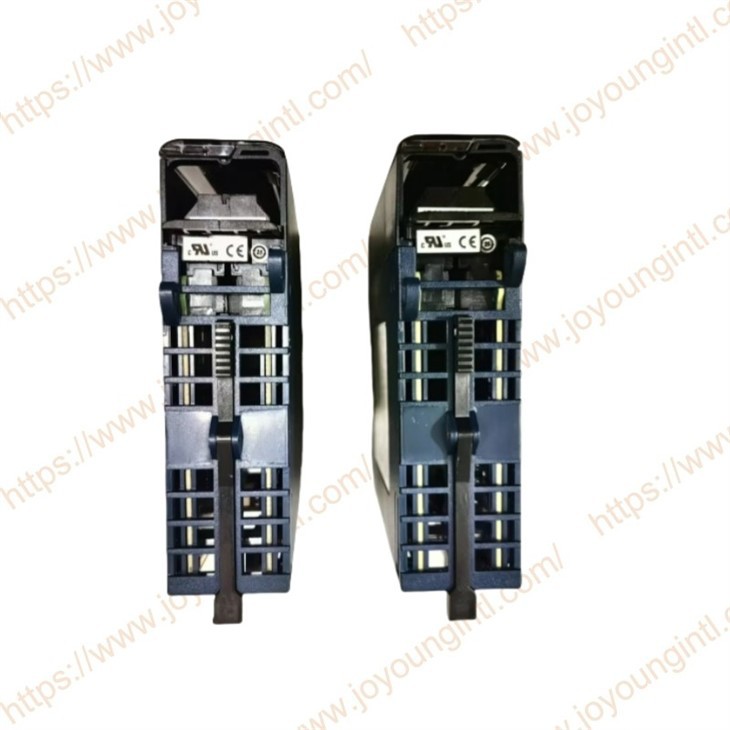

Why choose IC694MDL660 Digital Input Module
Positive and negative pressure logic compatibility
The IC694MDL660 Digital Input Module supports both positive logic (common anode) and negative logic (common cathode) wiring methods. These can be achieved through different on-site wiring configurations without the need for hardware jumpers or software settings. This flexibility enables the module to adapt to different wiring habits in various regions and industries, and also facilitates its use in conjunction with various types of sensors and actuators.
Intelligent diagnostic function
IC694MDL660 Digital Input Module is equipped with a terminal block detection mechanism, which can identify whether the terminal block is installed correctly and directly report the status to the RX3i CPU. This diagnostic function helps maintenance personnel quickly locate problems such as loose wiring or poor module contact, thereby reducing the time for troubleshooting.
Surge current withstand capability.
The IC694MDL660 Digital Input Module design can withstand a maximum surge current of 4.78 amperes for a duration of 10 milliseconds. This feature ensures that the module will not be damaged by instantaneous overcurrent when connecting capacitive loads or long cables, thereby enhancing its field adaptability.
IC694MDL660 Usage Requirements
----Module compatibility and system requirements
✅ It must be used in conjunction with the RX3i series PLC CPU, such as the PACSystems RX3i controller, and the CPU firmware version must be 2.90 or higher.
❌ This module is not compatible with older PLC CPU series from GE, such as 90-30 and 90-70.
----Mechanical and Installation Precautions
Before inserting the module into the backplane slot of the PLC rack, all power sources must be disconnected to prevent electrostatic breakdown or instantaneous current damage to the module.
----Power supply voltage and input logic
The input voltage for this module is 24 V DC (with a permitted input range of 0 - 30 V DC). Any voltage above 30 V will cause damage or result in non-identification.
----Temperature and humidity
The working temperature is generally limited to between 0°C and 60°C. The control cabinet should have good ventilation to prevent excessive temperature accumulation near the modules.
----Debugging and Fault Diagnosis
On each channel, there is an LED indicator light that shows the current input logic state (ON/OFF), which is used for quick diagnosis.
If a certain channel fails to reliably read the logical state, it is recommended to measure the actual voltage at the input terminal.
The module transmits the status of the terminal block to the PLC. When the terminal block is not properly installed, the CPU will receive an error.
Personal calls or visits are warmly welcome!
Contact: info@htechplc.com
Does the module provide status indicator lights?
Each channel is equipped with an LED status indicator, which can clearly display the on/off status and is convenient for on-site debugging.
Does IC694MDL660 require a matching wiring terminal?
Usually, it needs to be connected with IC694TBB032 or IC694TBS032, etc., as the terminal connectors.
What PLC backplane system does IC694MDL660 support?
It is used for the I/O backplane slot of GE Fanuc RX3i
How can this module be debugged together with other I/O modules?
In the RX3i PLC system, the input module communicates directly with the CPU via the backplane. Users can quickly set the input bit addresses and scan logic in the PLC software, without the need for additional wiring or communication protocols.
What is the input voltage of IC694MDL660?
The operating voltage of the module is 24 VDC (within the range of 0 – 30 VDC)
