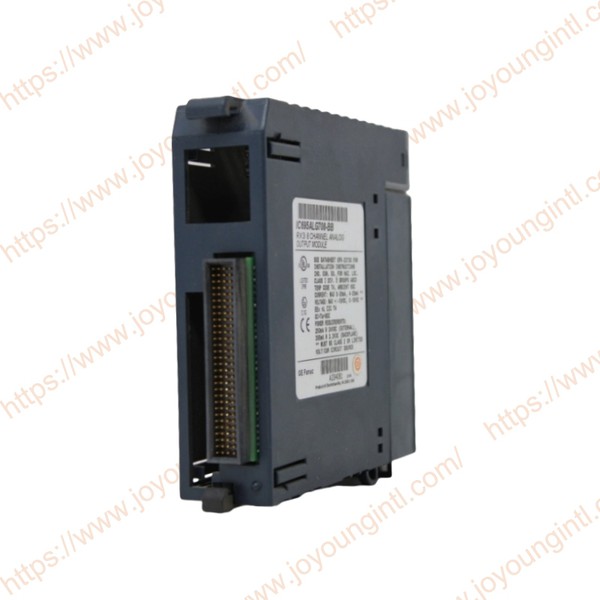

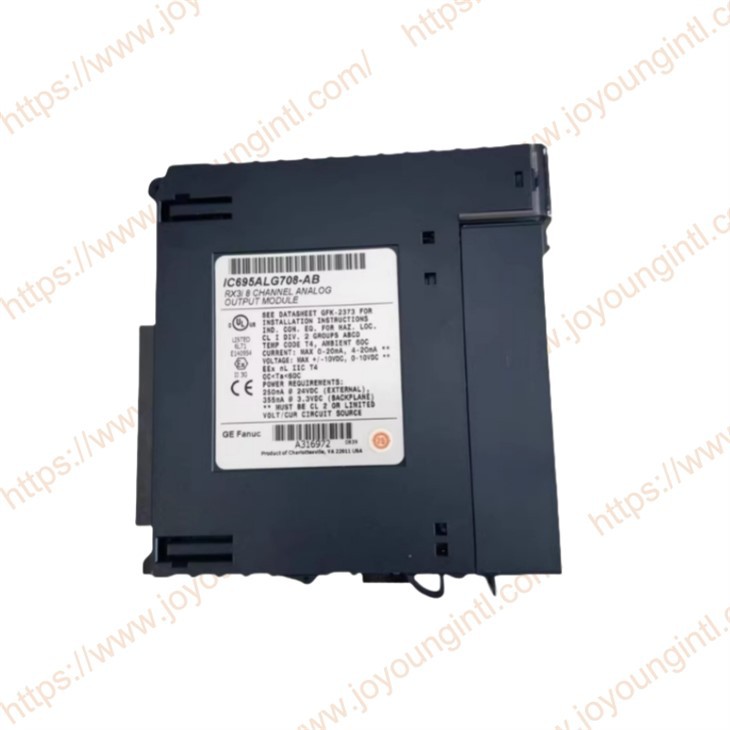

GE IC695ALG708 Analog Output Module

GE IC695ALG708 Analog Output Module

Item Number:IC695ALG708
Brand: GE
Price: $800
Lead Time: In stock
Condition: New
Payment: T/T
Shipping Port: Fujian，China
Send Inquiry
Download
Description
Technical Parameters
Product Introduction
IC695ALG708 GE PACSystem RX3i Programmable Automation Controller (PAC) non-isolated analog output module, configured with 8 output channels, each channel can be set with individual alarm settings, such as very low, very low, very high, and very high alarm; each output can also be clamped at specific high and low points for easy use with PID controllers.

IC695ALG708 Analog Output Module



Technical Specifications



Manufacture

GE

Model

 IC695ALG708
Part Number

IC695ALG708-CB

Description

 Output Analog Current/Voltage 8 Channels
Series PACSystems RX3i
Data format IEEE 32-bit Floating Point or 16-bit Integer
Installation method RX3i universal backplane socket

Origin

 USA

Dimension

14*12*3cm

Weight

0.5kg



Product Details
Non-Isolated Analog Voltage/Current Output module IC695ALG708, shown at left, provides 8 configurable voltage or current output channels. Analog channels can be configured for these output ranges:
▪Current: 0 to 20mA, 4 to 20mA
▪Voltage: +/- 10V, 0 to 10V

IC695ALG708
IC695ALG708 can be used with a Box-style (IC694TBB032), Extended Box-style (IC694TBB132), Spring-style (IC694TBS032), or Extended Spring-style (IC694TBS132) Terminal Block. Extended terminal blocks provide the extra shroud depth needed for shielded wiring. See chapter 15 for more information about Terminal Blocks. Terminal Blocks are ordered separately.
IC695ALG708 must be located in an RX3i Universal Backplane. They require an RX3i CPU with firmware version 3.0 or later. Machine Edition Version 5.0 SP3 Logic Developer-PLC or later must be used for configuration.



IC695ALG708 must receive its 24 VDC power from an external source. The external source must be connected directly to the module's terminal block. It cannot be connected via the TB1 connector on the RX3i Universal Backplane.
▪Completely software-configurable, no module jumpers to set
▪Individually enable or disable channels
▪Clamping and Alarm Limits
▪Latching of Alarms
▪Configurable output bias
▪Rapid channel acquisition times based on filter frequency
▪Full autocalibration
▪On-board error-checking
▪Configurable scaling and offsets per channel
▪High alarm, low alarm, high-high alarm, low-low alarm detection and reporting selectable per channel
▪Module fault reporting
▪Configurable Hold Last State or Output Defaults

Product LEDs
The IC695ALG708 Module OK LED indicates module status. The Field Status LED indicates whether the external +24 VDC power supply is present and at or above the minimum level, as well as whether any faults are present. All LEDs are powered from the backplane power bus.

LED
Indicates
Module OK
ON Green: Module OK and configured.
Quick Flashing Green: Module performing powerup sequence.
Slow Flashing Green or Amber: Module OK but not configured.
OFF: Module is defective or no backplane power present
Field Status
ON Green: No faults on any enabled channel, Terminal Block is present, and field power is present.
ON Amber and TB Green: Terminal Block is installed, fault on at least one channel, or field power is not present.
ON Amber and TB Red: Terminal Block not fully removed, field power still detected.
OFF and TB Red: Terminal block not present and no field power is detected.
TB
ON Red: Terminal block not present or not fully seated. See above.
ON Green: Terminal block is present. See above.
OFF: No backplane power to module.



Installation and Usage
IC695ALG708 is specifically designed for the PACSystems RX3i platform. It is integrated onto the RX3i universal backplane and seamlessly collaborates with the following system components:
RX3i CPU Controller (Requires firmware version requirements)
Universal Backplane
Standard IDC terminal block module
Prophesy Machine Edition Configuration Software

To ensure the long-term stable operation of IC695ALG708 in practical applications, the following installation and maintenance guidelines are recommended:
✔ Correct Installation
Make sure the module is securely inserted into the RX3i universal backplane and avoid any contact issues.
The external 24 VDC power supply should be directly connected to the terminal of the module, rather than being powered through the backplane.

FAQ

Q: What type of module is IC695ALG708?

A: IC695ALG708 is an 8-channel analog output module specifically designed for the PACSystems RX3i PLC system. It is used to convert the digital control signals of the PLC into analog signals that can be recognized by the field devices.

Q: Does this module require an independent power supply?

A: Yes, the IC695ALG708 requires an external 24 VDC power supply. The power supply should be directly connected to the power terminals of the module itself, and not rely on the power terminals of the RX3i backplane.

Q: Which platforms or tools can the IC695ALG708 be used with?

A: IC695ALG708 should be installed on the RX3i Universal Backplane and used in conjunction with a compatible RX3i CPU.

Q: How to Choose Terminal Blocks

A: The IC695ALG708 module usually does not come with terminal connection blocks. The commonly used options include Box-style or Spring-style 37-pin connection blocks (such as IC694TBB032, IC694TBS032, etc.)
