Product Introduction

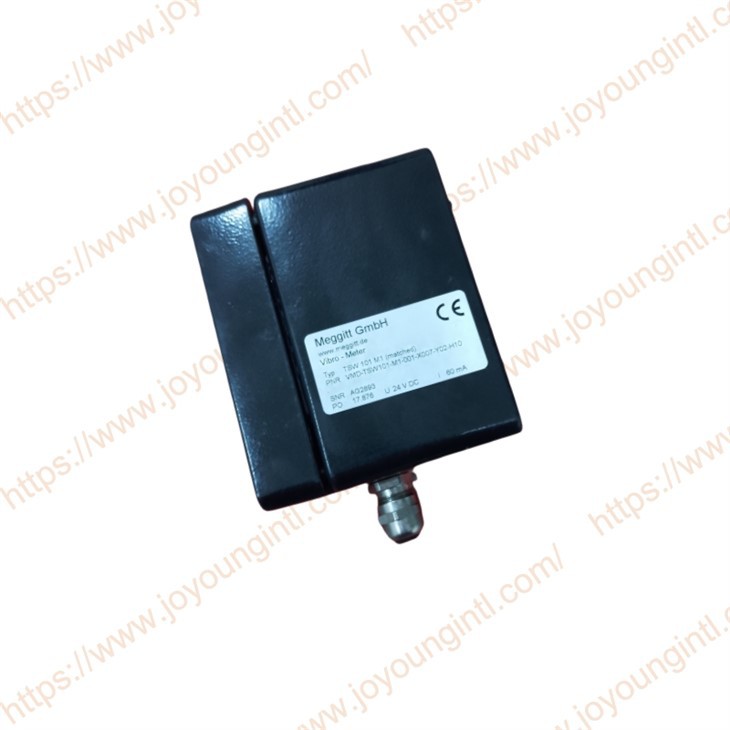

The one-channel vibration transmitter TSW 101 M1 measures with the assistance of the proximity transducer non-contactingly the relative shaft vibration Sppm.
If the materials of the measuring object different as the calibration material, or the measuring surface, or the distance to the casing ist to small, the sensitivity can be adjusted by potentiometer S.
Technical Specifications
|
Model |
TSW101M1 |
|
PN Number |
VMD-TSW101-M1-001-X007-Y02-H10 |
|
Description |
Transmitter |
|
Origin |
Switzerland |
|
Dimension |
20*20*10cm |
|
Weight |
0.25kg |
Product Details
Proximity transducer:
You can connect the proximity transducer type WW 007 with a cable length of 3 m, 5 m or 10 m. The pickups are exchangeable within the same cable length.
In delivery state this earth terminal (Casing potential) is connected to the outer shield of the transducer cable and terminal 5.
ORDERING CODE：
VMD –TSW101-M1-
| -Hxx(Gesamtlänge des systems) | ||
| 05 | 5 m | |
| 10 | 10 m | |
| -Xxxx(Type) | ||
| 007 | WW 007 | |
| -Yxx(Terminals / Klemmen) | ||
| 01 | Screw terminals | |
| 02 | Spring terminals |
