Product Introduction

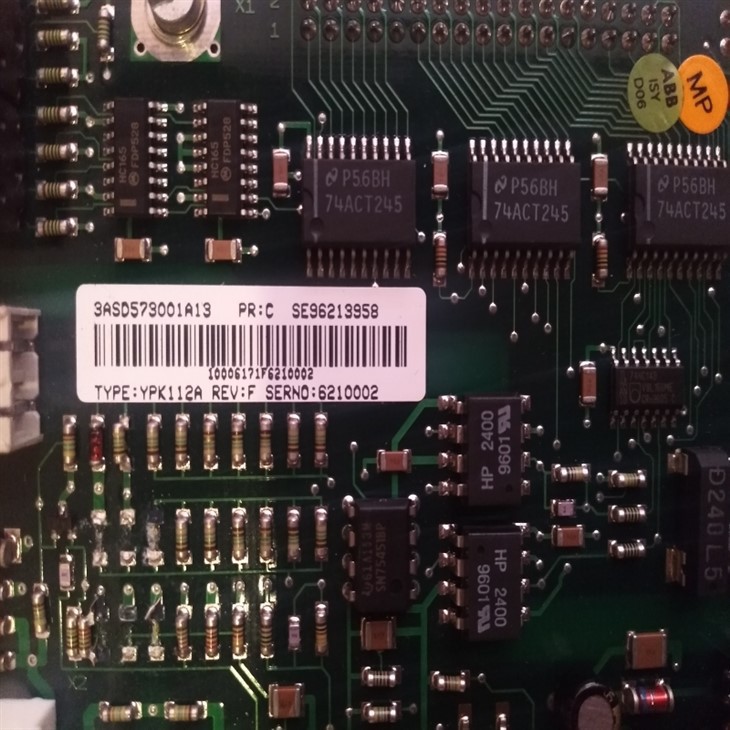

ABB YPK112A 3ASD573001A13 is a communication module, mainly used to realize data communication and control signal transmission between devices. It adopts high-quality electronic components and a strict manufacturing process, and has self-diagnosis and protection functions, which makes it convenient for users to maintain and troubleshoot. Through the communication function, it can realize the diagnosis and alarm of equipment failure.
Technical Specifications
|
Manufacture |
ABB |
|
Model |
YPK112A |
| Part Number | 3ASD573001A13 |
|
Description |
Communication Board |
|
Origin |
Sweden |
|
Dimension |
15*10*5cm |
|
Weight |
0.25kg |
Product Details

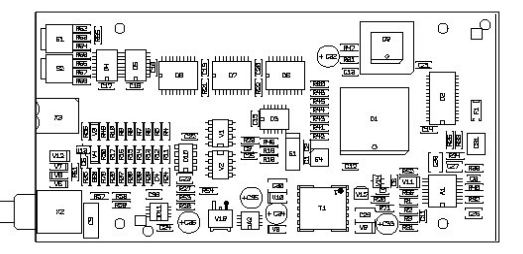

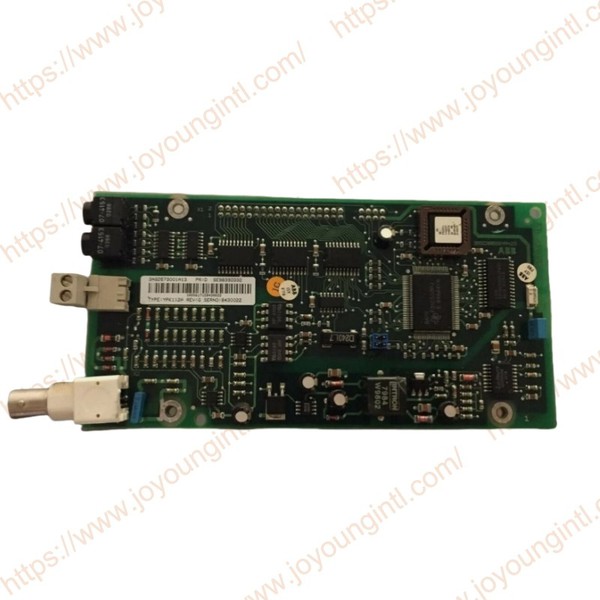

MB 90 / AF 100 Communication Board YPK 112A, Code:3AFE 10006171
This board is a MB 90 / AF 100 compatible high-speed serial bus interface for the APC. It is connected to the APC by plugging the board connector X1 to connector X6 on APC and is then fixed with four M3 screws. It does not need an external power supply.
The bus is a coaxial cable, and it is connected to connector X2 with a BNC connector. If the bus cable does not connect to the board, a T-connector has to be put between the connector X2 and the bus cable connector.
