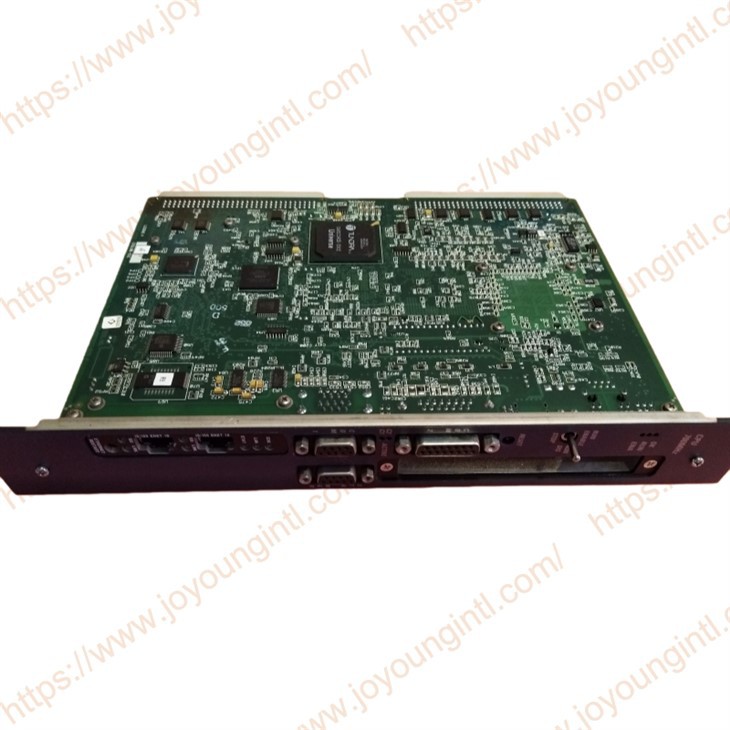

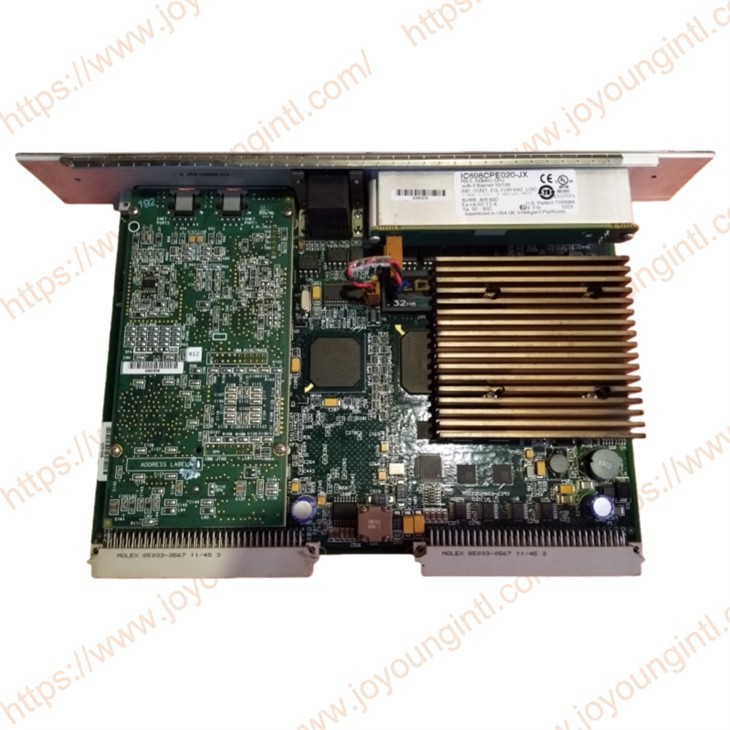

IC698CPE020 is an RX7i 700MHz CPU, a 700MHz main frequency central processing unit module in PACSystems' RX7i controller series. It represents the new generation of control platform following the classic Series 90-70, integrating high-speed backplanes, large-capacity memory and on-board 10/100Mbps industrial Ethernet interfaces. It is specifically designed for complex automation applications that require powerful processing capabilities, determinism and network performance.

Manufacture	General Electric(GE)
Model	IC698CPE020
Part Number	IC698CPE020
Description	RX7i 700MHz CPU
Origin	USA
Dimension	30205cm
Weight	0.5kg

IC698CPE020 Core features and specifications
1. Processor and Performance
CPU main frequency: 700 MHz Pentium-class processor, providing powerful computing capabilities.

Execution speed: The speed of processing logical instructions far exceeds that of the first-generation 90-70 CPUs (such as CPM790), and it is particularly adept at handling large and complex programs, including structured text and massive data processing tasks.

Deterministic control: While running multiple tasks, handling large amounts of I/O and complex network communications, it can still ensure predictable scanning cycles.

2. Memory configuration
User program memory: 20 MB (flash memory), used for storing logic, configuration and firmware.

User data memory: 10 MB (RAM), used for storing variables, arrays and temporary data.

Battery backup: The standard battery supports the retention of data memory (in case of power failure). Some models may have built-in supercapacitors to provide short-term data retention.

3. Communication interface
This is the outstanding highlight of this CPU:

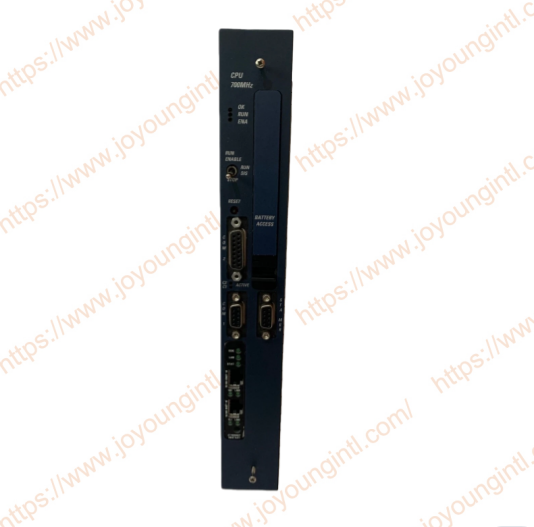

On-board dual-port Ethernet switch

Port 1 (P1) and Port 2 (P2): Two 10/100BASE-TX auto-detect RJ45 ports.

Built-in switch function: Allows devices to be connected in a "Daisy chain" manner without the need for additional external switches, simplifying wiring and enhancing reliability.

Supported protocols: Natively supports SRTP (GE's proprietary industrial Ethernet protocol for programming, HMI communication and data exchange) and Modbus TCP client/server functionality. This is the main way it communicates with the host computer (SCADA/HMI), programming stations, and other Ethernet-supported devices.

Serial port

Serial Port 1 (S1): Isolated RS-485 port, supporting SNP slave (for traditional programmer connection) and Modbus RTU master/slave protocol.

Serial Port 2 (S2) An isolated RS-232/RS-485 configurable port, offering greater flexibility in application.

4. Control and expansion capabilities
Local I/O: Connected via the RX7i high-speed PCI backplane (rack model such as IC698CHS117), it supports a large number of high-performance and high-density I/O modules.

Remote I/O: Distributed I/O can be connected via the Genius bus (using GBC modules) or more modern networks such as Profibus-DP and DeviceNet.

I/O capacity: Far exceeding the 90-70 series, supporting tens of thousands of digital and analog I/O points.

5. Software and Programming
Engineering software: Use Emerson Proficy Machine Edition or newer Proficy Control System (PCS) for hardware configuration, programming (ladder diagrams, function blocks, structured text, C language blocks), debugging and diagnosis.

Portability: Its programming concept emphasises single development, multi-platform deployment. Program logic can be ported between PACSystems platforms of different hardware (such as RX3i) to protect user investment.

IC698CPE020 Typical application scenarios
Large-scale and complex process control (Chemical Engineering, oil and gas)

High-speed and high-precision machine control (metal processing, printing)

Critical infrastructure control (water/wastewater treatment, energy management)

As the central master station of a large-scale distributed control system.
