Product Introduction

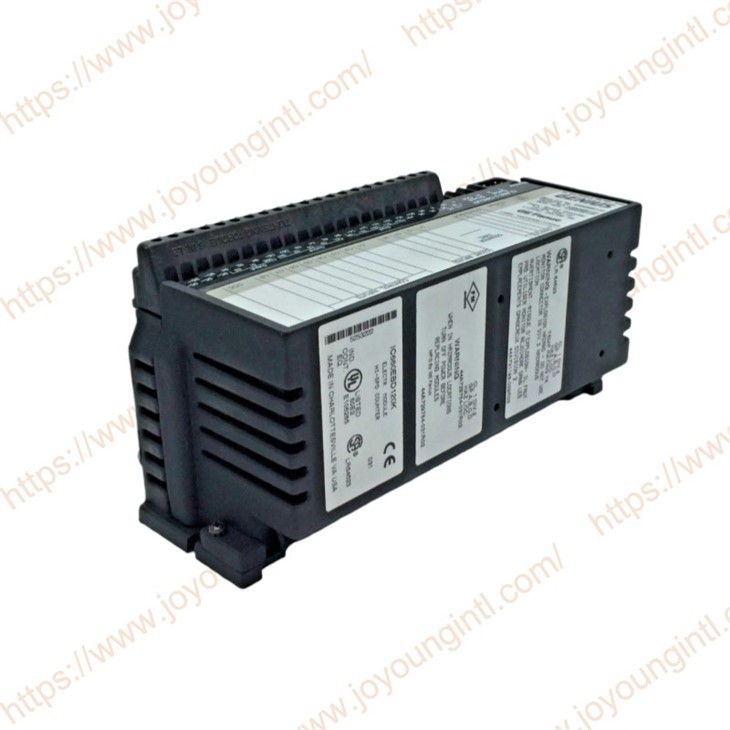

IC660BBD120 is a high-speed counter module from the GE Fanuc Genius I/O family. It offers one, two, or four counters of varying complexity, including four identical, independent simple counters, two identical, independent medium-complexity counters, and one complex counter. The high-speed counters can be easily configured to count up, down, or both ways, or calculate the difference between two changing values.
Technical Specifications
|
Manufacture |
General Electric(GE) |
|
Model |
IC660BBD120 |
| Part Number | IC660BBD120 |
|
Description |
Block High Speed Counter |
|
Origin |
USA |
|
Dimension |
23*9*10cm |
|
Weight |
1.8kg |
Product Details
The High-speed Counter block (IC660BBD120) provides direct processing of rapid pulse signals up to 200KHz for industrial control applications such as:
Turbine flowmeter
Meter proving
Velocity measurement
Material handling
Motion control
IC660BBD120 Features：
Block features include:

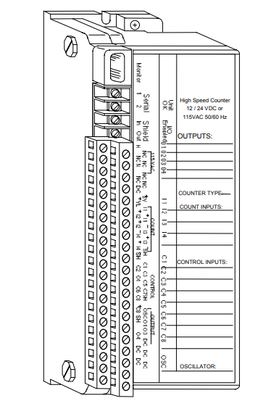

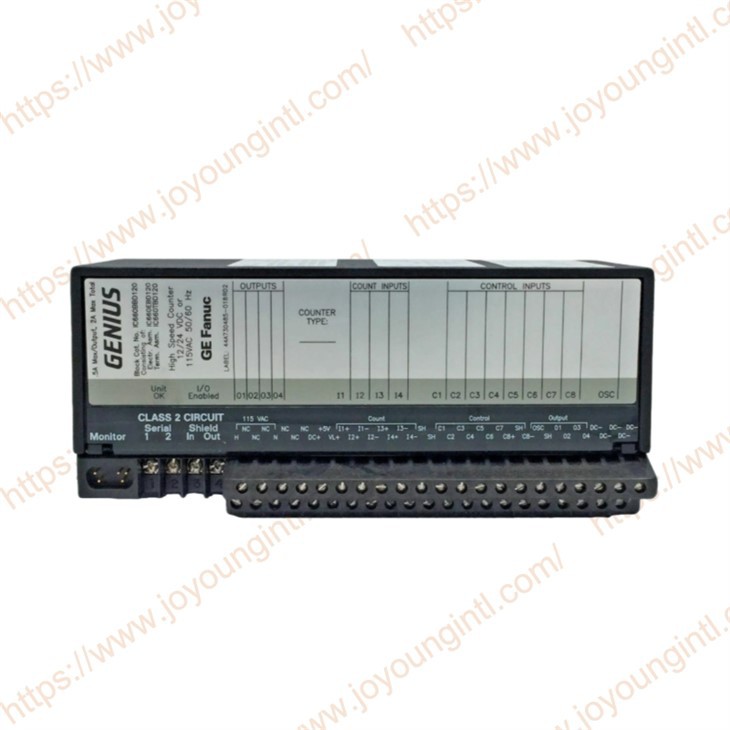

12 inputs and 4 outputs, plus a +5 volt DC output and an oscillator output
Counts per timebase register for each counter
Software configuration
Failed Switch diagnostic
Use of 115 VAC and/or 10 VDC to 30 VDC block power
External battery backup operation
Built-in protection against power surges on outputs
The High-speed Counter can easily be configured to count either up or down, to count both up and down, or to count the difference between two changing values.
The block provides 1, 2, or 4 counters of differing complexity:
Four identical, independent simple counters
Two identical independent counters of moderate complexity
One complex counter
Direct processing means that the block can sense inputs, count, and respond with outputs, without needing to communicate with a CPU.
This block requires Hand-held Monitor version 3.5 (IC66*HHM501D) or later. HHM version 4.0 or later is required to use all the features described in this datasheet.
For the IC600 series PLC, bus controller version IC66*CBB902G or IC66*CBB903G or later is required for blocks assigned to I/O references, to assure data coherency. For blocks assigned to register memory, earlier versions of bus controllers IC66*CBB902 and IC66*CBB903 can be used. Bus controllers IC66*CBB900 and IC66*CBB901 cannot be used with a High-speed Counter.
