Product Introduction

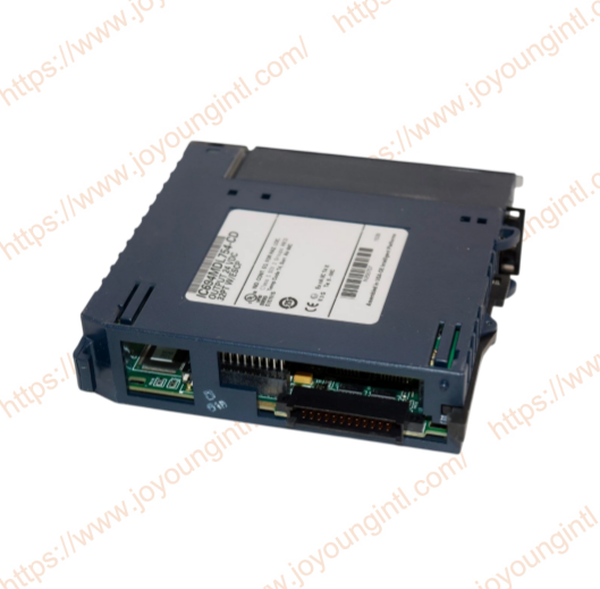

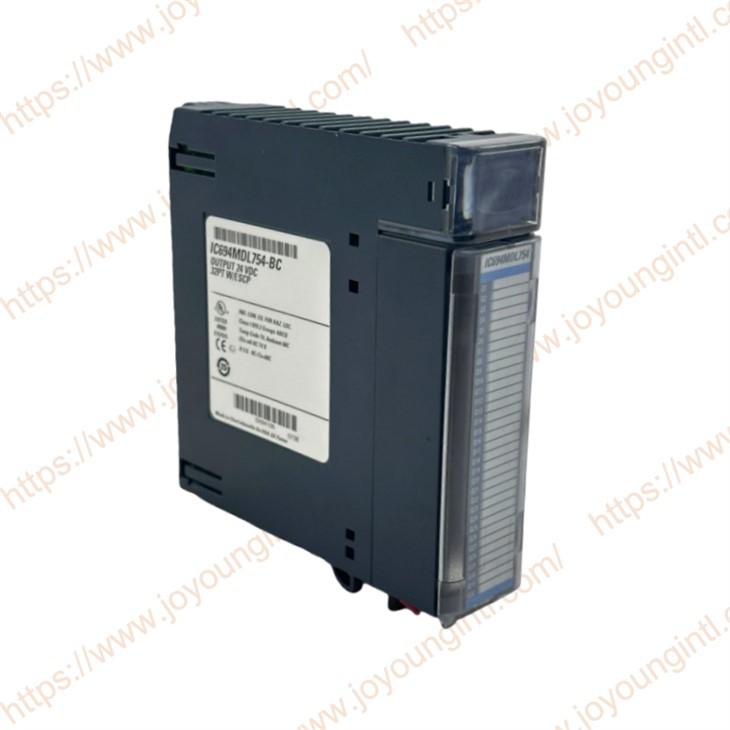

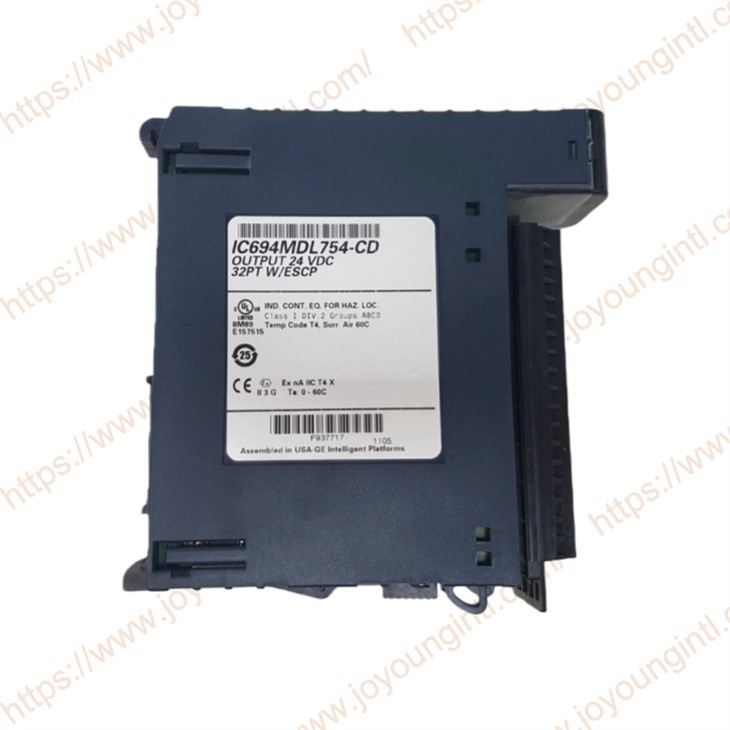

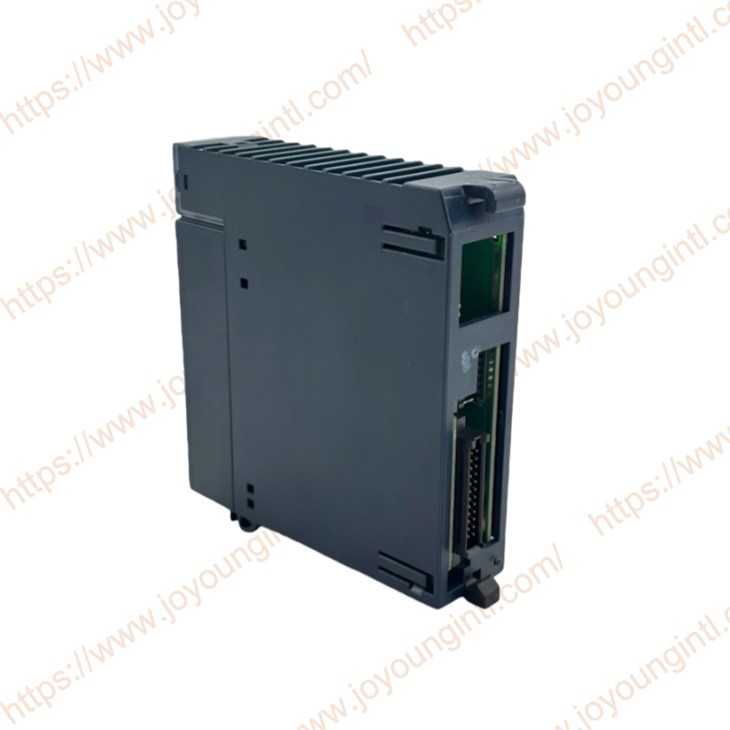

The IC694MDL754 output module is used to convert the logical results of the PLC controller into DC voltage signals, which can be used to drive the field control devices. This module is typically located in the I/O layer of the automation system, and it serves as a control signal execution interface.
Technical Specifications
|
Manufacture |
GE |
|
Model |
IC694MDL754 |
| Part Number |
IC694MDL754-ED |
|
Description |
OUTPUT MODULE |
|
Origin |
USA |
|
Dimension |
30*15*5cm |
|
Weight |
0.55kg |
Technical Features
Two 16-point output groups are isolated from each other, facilitating zone control and power management.
Industrial-grade DC output support
Compatible with common 12VDC and 24VDC control circuits, suitable for standard industrial environments.
Modular system integration
As a component of the RX3i platform, it facilitates system expansion and structural planning.
Engineering Advantages
1. Facilitates the planning of control cabinet space
The IC694MDL754 single module offers 32 points of output, which can reduce the number of I/O modules in medium and large-scale projects and is beneficial for:
Reduce slot occupancy
Simplify module arrangement
Improve the neatness of the internal structure of the control cabinet
It is particularly suitable for projects with limited space or for standardized cabinet designs.
2. Helps with the management of regional circuits
The dual 16-point output group structure can be implemented in engineering:
Independent control for different process sections
Different power circuits are connected separately.
Partitioned wiring for different load types
This grouping method is beneficial for later maintenance and circuit identification.
3. Facilitates large-scale I/O system expansion
In multi-site or multi-process segment control systems, output expansion can be achieved by adding modules without altering the overall control architecture, making it convenient for phased project construction.
4. Support standardized wiring design
The output structure is clear,r and the terminal distribution is highly regular. It is suitable for adopting standard wire numbers and wiring specifications, which is beneficial for:
Unify project construction standards
Improve the efficiency of electrical installation
Reduce the probability of wiring errors
5. Helps to Enhance Operational Continuity
The module is equipped with an electronic protection and status feedback mechanism. In the event of a single-point anomaly, it can reduce the impact range on other channels, which is beneficial for maintaining the stability of the system operation.
Typical Usage Description
IC694MDL754 output module is typically used in the following types of systems:
Automation production line control cabinet
Equipment-matched electrical control system
Process section zoning control system
Energy management and auxiliary equipment control
Discrete Executive Control in Process Industry
In engineering projects, it usually functions as the "on-site execution layer interface module", working in conjunction with the CPU, input module, and communication module to form a complete control architecture.
Technical Q&A
Frequently Asked Questions
Q1: What needs to be confirmed before installation?
+
-
A: It is necessary to confirm that the model of the baseboard and the CPU firmware version are compatible with the module.
Q2: What should be particularly noted when connecting the wires?
+
-
A: It is necessary to distinguish the common terminals of the two output groups to avoid accidental parallel connection of different power circuits.
Q3: What should be done before replacing the module?
+
-
A: It is recommended to first disconnect the system power supply and make a record of the output status.
Q4: What information should be verified during the procurement process?
+
-
A: The complete model, version number, and whether it includes front connection terminals should be verified.
Q5: What should be checked before using the long-term inventory module?
+
-
A: It is recommended to inspect the oxidation condition of the terminals and whether there are any signs of moisture on the surface.
