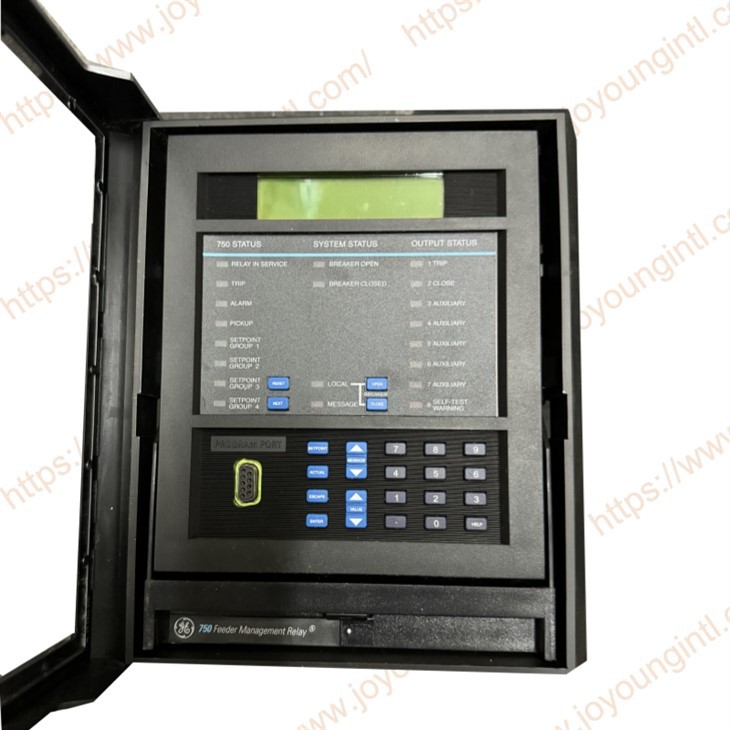

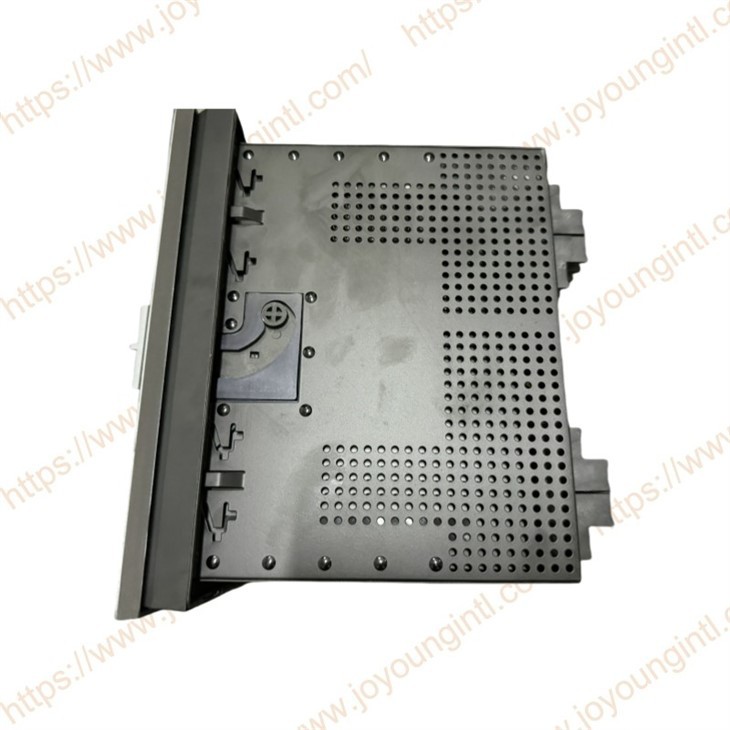

GE Multilin has released a new generation of enhanced 750-P5-G5-S5-HI-A20-G-E Feeder Management Relays featuring a large, easy-to-read backlit display, an improved menu navigation structure, and enhanced setup software via enerVista. The new Quick Start Guide and updated Instruction Manual complete the package offered to our customers. The enhanced relay has the same footprint as earlier versions and maintains the unique feature set that elevated the 750/760 relays to a leadership position in the industry. The new firmware revision is V6.00.
Technical Specifications
|
Manufacture |
GE Multilin SR750
|
|
Model |
750-P5-G5-S5-HI-A20-G-E |
| Part Number | 750-P5-G5-S5-HI-A20-G-E |
|
Description |
Multilin SR750 Feeder Management Relay |
|
Origin |
USA |
|
Dimension |
30*30*20cm |
|
Weight |
3.5kg |
Product Details
Software: the 750-P5-G5-S5-HI-A20-G-E includes new EnerVista 750/760 Setup software
The enerVista 750/760 Setup software for firmware version 6.00 is designed to allow customers to set up and monitor their relays in a faster and more reliable fashion. The software includes the following features:
* Enhanced Oscillography with: movable cursors, selectable zoom, ability to display cursor 1, cursor 2, and delta for all the displayed channels in the same window, and a playback feature with selectable sample rate that allows viewing a waveform exactly as it occurred.
*Full backward-compatibility with setting files created in previous versions of 750PC.
*A Menu option to turn ìONî and ìOFFî the front panel display.
*A Quick Connect feature to simplify serial connection to a 750/760 relay.
*The ability to set up multiple 750/760 relays from one view.
*Support for firmware versions from 3.0x to 6.0x.
*Multiple information windows can now be opened in a single view.
Enhanced 750/760 relay has been introduced.
The order code has changed to introduce the new LCD by indicating ì-Bî for the existing relay and ì-Eî for the new relay. The new order code is shown below:
| 750 ñ | |||
| -Phase Current Inputs |
P1 P5 |
1 A phase current input 5 A phase current inputs |
|
| -Zero-Sequence Current Inputs |
G1 G5 |
1 A zero-sequence current input 5 A zero-sequence current input |
|
| -Sensitive Ground Current Input |
S1 S5 |
1 A sensitive ground current input 5 A sensitive ground current input |
|
| -Control Power |
LO HI |
25 to 60 V DC; 20 to 48 V AC at 48 to 62 Hz HI | | | | | | 88 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz |
|
| -Analog Outputs |
A1 A5 A10 A20 |
Eight (8) 0 to 1 mA analog outputs Eight (8) 0 to 5 mA analog outputs, Eight (8) 0 to 10 mA analog outputs Eight (8) 4 to 20 mA analog outputs |
|
| -Breaker Closed LED |
R G |
Red LED for Breaker Closed indicator Green LED for Breaker Closed indicator |
|
| -Display |
E B |
Enhanced display, larger LCD Basic Display |
