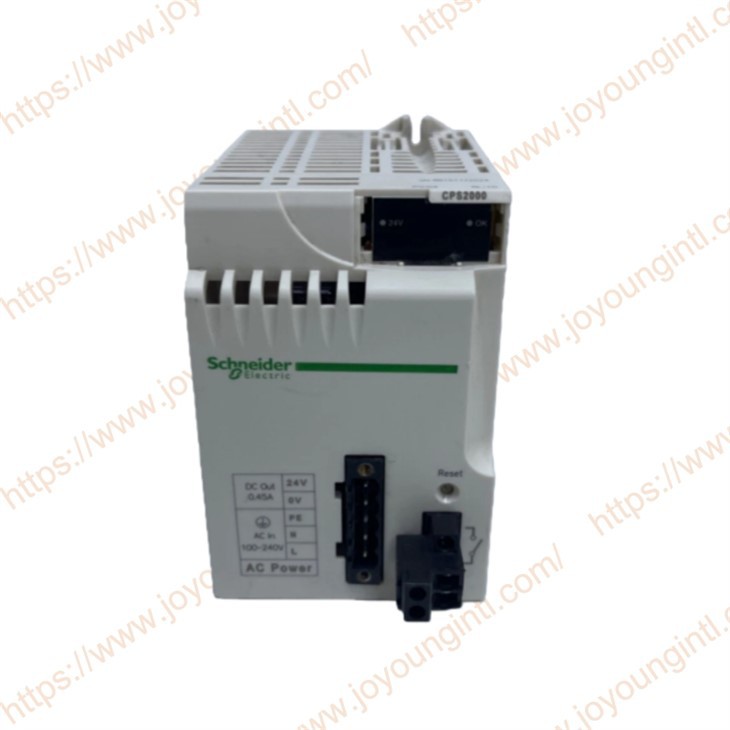

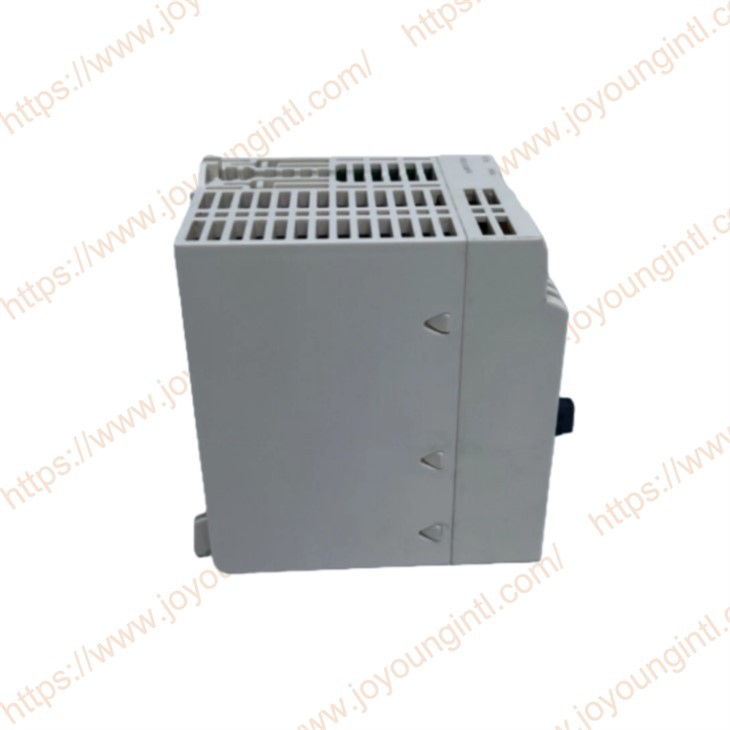

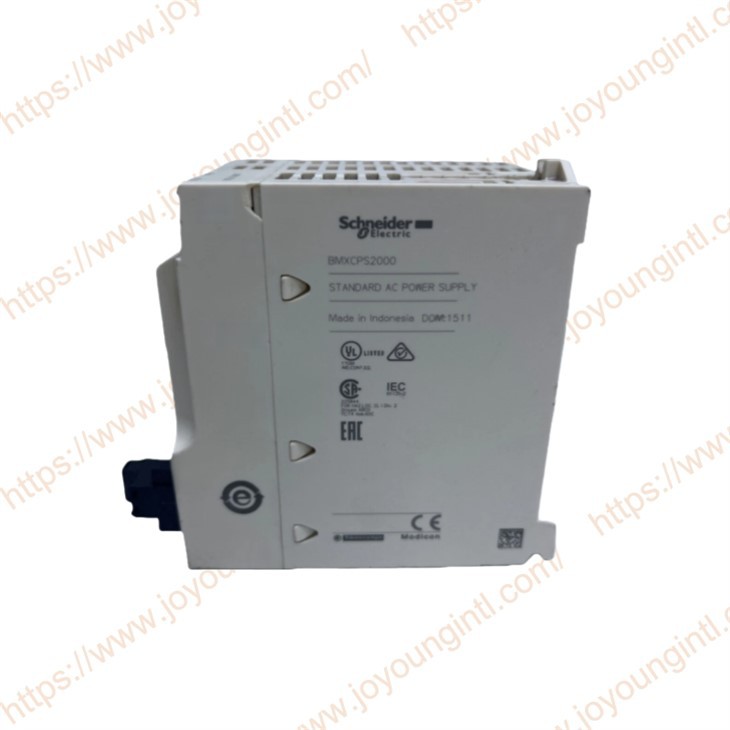

Schneider Electric BMXCPS2000 STANDARD AC POWER SUPPLY

BMXCPS2000 is a standard power module, mainly used to supply power to PACs (Programmable Automatic Controllers) such as Modicon M340 and M580, as well as related I/O modules. The main function provided by BMXCPS2000 is to convert the common 100–240 V AC input power from the industrial site into a DC output that meets the requirements of the PLC control system.

BMXCPS2000 belongs to the Modicon X80 series. This series is a universal module platform designed by Schneider for medium and large-scale industrial automation control systems, and it is closely integrated with Modicon M340 and M580 controllers. The X80 series modules share a unified mechanical interface, backplane bus, installation scheme, and supporting software, thereby significantly reducing maintenance difficulty, spare parts inventory, and training costs.

Wide Voltage and Frequency Range for Versatile Operation
The BMXCPS2000 standard AC power supply supports a broad voltage range, accommodating input voltages from 100 to 240 V AC and withstanding fluctuations within 85 to 264 V. This flexibility ensures the power module can operate reliably across different power supplies, making it suitable for diverse industrial environments. Additionally, it is designed for both 50 Hz and 60 Hz frequencies, with frequency limits from 47 to 63 Hz. This adaptability allows it to perform consistently regardless of the frequency variations in the power grid, providing peace of mind for users in areas with variable power conditions.

High Efficiency and Secondary Power Capabilities
The BMXCPS2000 standard AC power supply offers efficient power distribution with a power rating of 8.5 W, which allows it to minimize energy consumption while still delivering sufficient power to critical systems. It features a secondary power supply of 24 V DC for sensor power (10.8 W), I/O module power (16.8 W), and processor support, as well as a 3.3 V DC supply (8.3 W) for I/O module logic. This capability to provide secondary power to multiple components ensures that essential system parts remain powered independently, reducing downtime risk and enhancing system reliability during primary power fluctuations.

Safety and Protection Features
Designed with robust safety features, the BMXCPS2000 standard AC power supply provides insulation resistance of over 100 MOhm between primary and ground, which enhances user safety and protects the system from electrical faults. It is IP20-rated for protection against dust and accidental contact, making it suitable for use in controlled industrial environments. Additionally, the module is engineered to withstand shock resistance of up to 30 gn and vibration resistance of 3 gn, ensuring stable operation in environments subject to physical stress. This rugged design suits industries that need a resilient and stable power supply module.

Enhanced Durability and Operational Range
With an impressive MTBF (Mean Time Between Failures) of 4,638,000 hours, the BMXCPS2000 standard AC power supply demonstrates high reliability, promising long-term service with minimal risk of malfunction. It operates effectively across a wide temperature range of -40 to 85 °C and maintains full functionality at altitudes up to 2,000 meters, with a derating factor applied up to 5,000 meters. The power module's resistance to extreme temperatures and environmental stressors makes it an excellent choice for demanding industrial settings where durability is crucial.

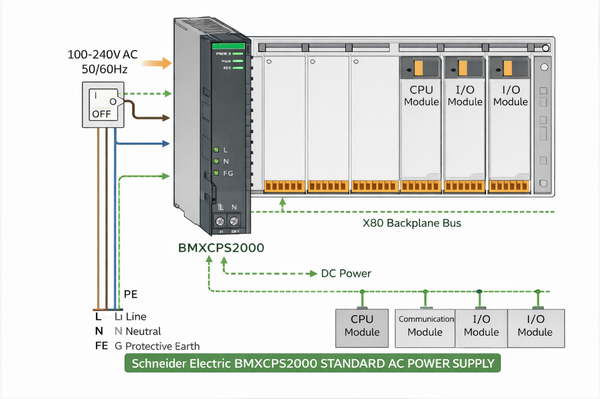

Wiring diagram of the BMXCPS2000 standard AC power supply

The product is usually equipped with LED indicators, which are used to display:
Power output status (e.g., "24 V OK")
Is the module functioning properly (for example, "Rack OK")
These LED indicators make it easier for on-site personnel to quickly determine the operating status of the module and assist in troubleshooting power or control issues.

Compared with similar industrial power supply modules, the advantages of BMXCPS2000 include:
Fully integrated with the Modicon X80 platform, it has high compatibility.
Wide application range: 100–240 V AC input, compatible worldwide;
Multiple output channels, providing a separate power supply for logic, I/O, and sensors.
Built-in protection and status indication enhance system security and maintainability.
Compared with some power modules that only provide a single 24 V DC output, BMXCPS2000 can better meet the demand of complex PLC systems for multiple voltage power supplies.
