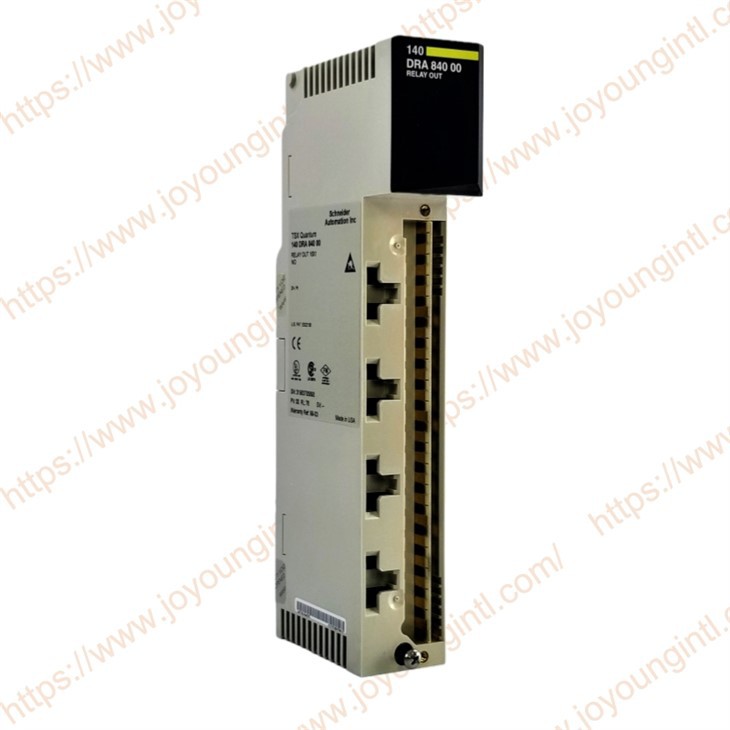

140DRA84000 Modicon Relay Discrete Output Module

Schneider 140DRA84000 is a discrete output module in the Modicon Quantum series. It is mainly used in industrial automation control systems to convert PLC control signals into relay contact outputs, thereby driving various field load devices. This module is connected to the PLC system via a standard Quantum backplane and is suitable for control scenarios that require electrical isolation, diverse load types, or flexible output forms.

Schneider Electric's 140DRA84000 is a discrete output module belonging to the Modicon Quantum series. It adopts a relay output form, with each point of output switching through relay contacts. It can control loads with large voltage and current, and has strong adaptability. Relay output is suitable for various types of loads, including AC loads, DC loads, inductive loads, and resistive loads, reducing the difficulty of adapting to on-site equipment.

140DRA84000 Discrete Output Module Main Function Description
1. Discrete relay output function

Provide a discrete output of multi-channel relays

After the PLC outputs the logic signal, the on-off control of the external circuit is achieved through the relay contact.s

Relay contacts can be used to control AC or DC loa.ds

2. Electrical isolation

Electrical isolation is achieved between the internal control circuit of the module and the on-site load circuit through a re.lay

It helps to reduce the impact of on-site interference on the PLC system

It is suitable for applications with inconsistent voltage levels or complex on-site environments

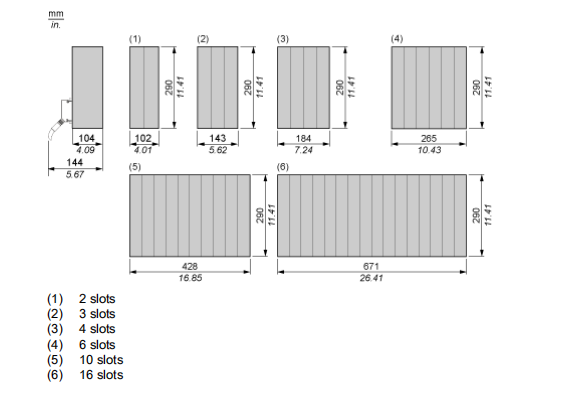

3. Integrate with the Modicon Quantum system

It can be directly installed on the backplane of the Modicon Quantum PLC

It works in coordination with Quantum series CPUs, power modules, and communication modules

Centralized control and management are carried out through PLC programs

4.Response Time and Durability
Featuring a fast response time of <= 20 ms on input opening 140DRA84000000 Discrete Output Module enables rapid switching between output states, enhancing control precision. With mechanical and electrical durability ratings of up to 10,000,000 and 500,000 cycles, respectively, this module ensures long-term reliability and performance in demanding industrial environments.

16-point output capability
This module integrates 16 independent digital output points, each of which is an independent relay contact. This multi-point output design effectively reduces the number of I/O slots, enhancing the density of the control system and the overall cost-effectiveness. In the control system, 16 different loads can be independently controlled through on/off operations, such as motor start/stop, indicator light control, and solenoid valve swiching, etc. This is a typical choice for discrete control outputs.

Technical Selection Suggestions and Precautions
When choosing the 140DRA84000, the following technical suggestions can be referred to:
1. Output load type matching
The output is relay contacts, so it is suitable for driving AC or DC loads. However, for pure electronic loads (such as high-speed thyristor drives), isolation and adaptation design should be done properly.
2. Output current and bus requirements
According to the size of the load current, reasonably allocate the module load to avoid exceeding the load capacity of a single point (2A); at the same time, pay attention to system-level parameters such as the backplane power supply bus capacity.
3. Field wiring and protection
To enhance reliability, external fuses or overcurrent protection devices can be equipped to avoid damage to the relay contacts due to faulty loads.
4. Environmental condition considerations
If the system operating environment has extreme temperatures, humidity, or corrosive gases, consider the environmental adaptation of the module or choose a version a with protective coating.
