Product Introduction
Technical Specifications
|
Manufacture |
ABB |
|
Model |
DI821 |
| Part Number | 3BSE008550R1 |
|
Description |
Digital Input 230V 8 ch |
|
Origin |
Sweden |
|
Dimension |
102*119*45mm |
|
Weight |
0.3kg |
Product Details

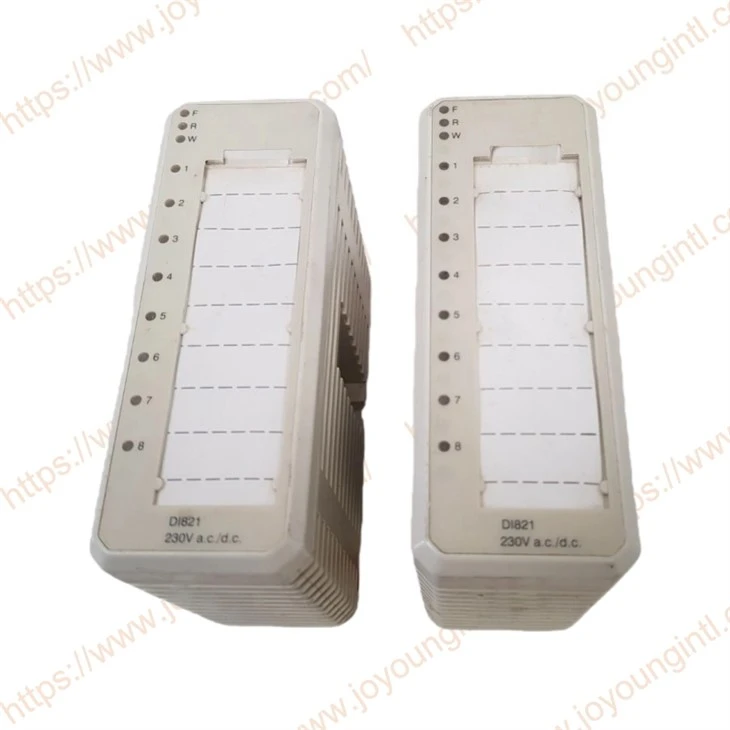

The DI821 is an 8-channel, 230 V a.c./d.c. Digital input module for the S800 I/O. This module has 8 digital inputs. The ac input voltage range is 164 to 264 V, and the input current is 11 mA at 230 V a.c. The d.c. The input voltage range is 175 to 275 volts, and the input current is 1.6 mA at 220 V d.c. The inputs are individually isolated.
Every input channel consists of current-limiting components, EMC protection components, an input state indication LED, an optical isolation barrier, and an analog filter (6 ms).
Channel 1 can be used as a voltage supervision input for channels 2 - 4, and channel 8 can be used as a voltage supervision input for channels 5 - 7. If the voltage connected to channel 1 or 8 disappears, the error inputs are activated, and the Warning LED turns on. The error signal can be read from the ModuleBus.
ABB DI821 Analog Input Module 3BSE008550R1 with HART Protocol Support for High-Precision Signal Acquisition Technical Specifications.
Attributes Detailed Parameters:
Product Model: DI821
ABB Order Number: 3BSE008550R1
Product Type: Analog Input Module
Number of Channels: 16 channels
Signal Type: 0/4-20 mA, ±1 V, ±5 V, ±10 V, etc. (Software configurable)
HART Support: Yes
Accuracy: Typical ±0.05%
Electrical Isolation: 500 V AC (between channel and system)
Resolution: 16-bit
Break Detection: Supported (current signal)
Power Consumption: Typical 1.8 W
Compatible Systems: ABB AC 800M, Freelance
Installation: Requires installation on an S800 I/O base unit (e.g., TU810, TU812, etc.)
