Product Introduction
Technical Specifications
|
Manufacture |
ABB |
|
Model |
DI830 |
| Part Number | 3BSE013210R1 |
|
Description |
Digital Input 24V SOE 16 ch |
|
Origin |
Sweden |
|
Dimension |
102*119*45mm |
|
Weight |
0.3kg |

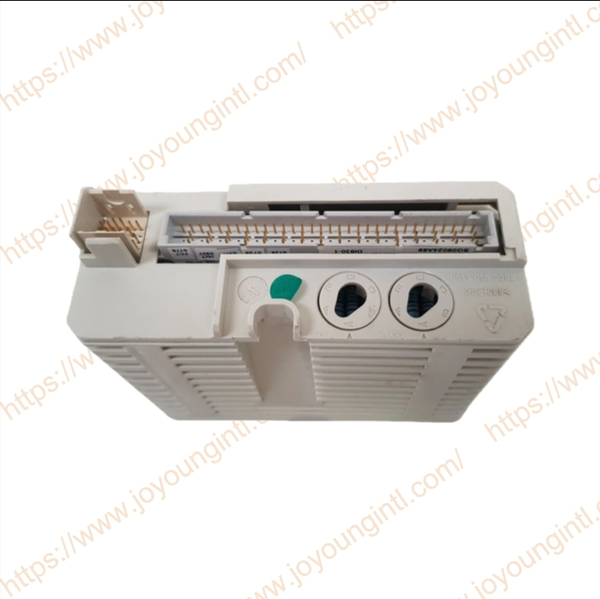

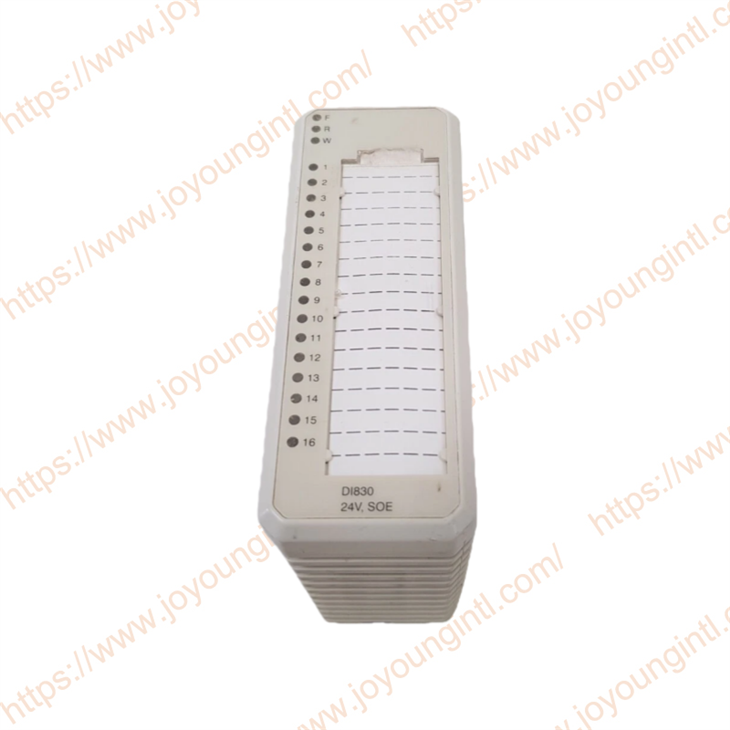

Product Details
The DI830 is a 16-channel 24 V d.c. Digital input module for the S800 I/O. The input voltage range is 18 to 30 V d.c., and the input current is 6 mA at 24 V d.c. Each input channel consists of current-limiting components, EMC protection components, an input state indication LED, and an optical isolation barrier. The module cyclically performs self-diagnostics. Module diagnostics include:
*Process power supply supervision (results in a module warning if detected).
*Event queue full.
*Time synchronization is missing.
The input signals can be digitally filtered. The filter time can be set in the range 0 to 100 ms. This means that pulses shorter than the filter time are filtered out, and pulses longer than the specified filter time get through the filter.
ABB DI830 Analog Input Module 3BSE013210R1 16-Channel High-Density Universal Signal Input.
Attributes & Detailed Specifications
Product Model: DI830
ABB Order Number: 3BSE013210R1
Product Type: General Purpose Analog Input Module
Number of Channels: 16 Channels
Supported Signal Types: Thermocouple (TC), Resistance Temperature Detector (RTD), Voltage (V), Current (mA), Resistance
HART Support: No (Note: The DI830 focuses on universal signal input, while HART functionality is typically found in specific modules such as the DI820/DI821)
Accuracy: Extremely High (Refer to the manual for details; typical values are better than ±0.1%)
Electrical Isolation: Yes (between channel and system)
Cold Junction Compensation: Yes (for thermocouple measurements)
Resolution: 16-bit
Compatible Systems: ABB AC 800M

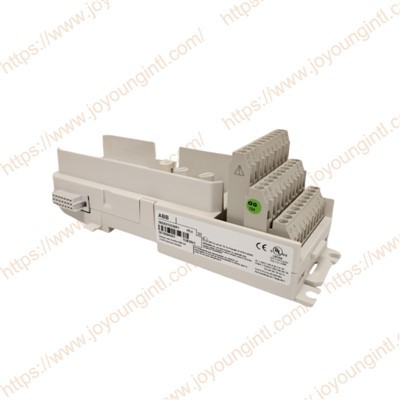

Use Module Termination Unit TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850
