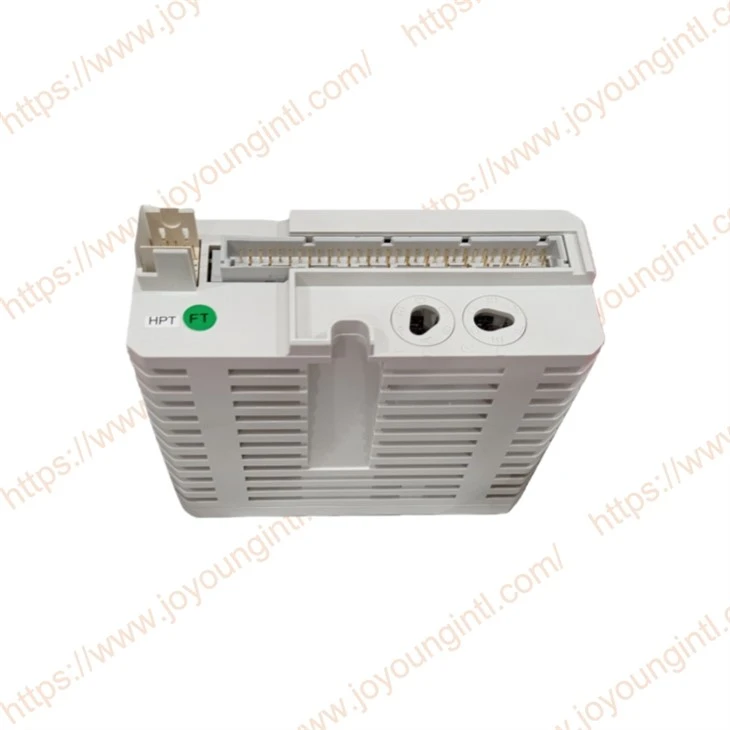

ABB AI810 3BSE008516R1

Key Product Features:

High-Precision Data Acquisition: Provides 8 high-resolution analog input channels for accurate acquisition of process signals from field sensors.

Wide Signal Compatibility: Supports various input signal types, including voltage (±50mV to ±10V), current (0/4-20mA), resistance (RTD), and thermocouple (T/C), offering extreme application flexibility.

Superior Channel Isolation: Provides high-level inter-channel and inter-group isolation, effectively preventing signal crosstalk and ground loop interference, ensuring measurement stability and system safety.

Intelligent Diagnostic Functions: Features disconnection detection and alarm functions, quickly identifying sensor or line faults for easy maintenance and troubleshooting.

Hot-Swap Maintenance: Supports module installation or removal during system operation, greatly facilitating system maintenance and expansion and reducing downtime.

Seamless System Integration: Designed specifically for ABB's S800 I/O series and AC 800M controllers, allowing seamless integration into ABB automation systems.

Clear status indication: The front of the module is equipped with multi-status LED indicators that display the module's operating status and communication activity in real time.

Technical Specifications

Attributes Specifications
Product Model AI810
Order Number 3BSE008516R1
Product Type Analog Input Module
Number of Channels 8
Input Signal Type: Voltage, Current, Resistance (RTD), Thermocouple (T/C)
Voltage Input Range ±50 mV, ±150 mV, ±1 V, ±5 V, ±10 V
Current Input Range 0 - 20 mA, 4 - 20 mA
Resolution 15 bits (including sign bit)
Accuracy ±0.1% (typical, depends on range and signal type)
Channel Isolation Yes (inter-channel and inter-group isolation)
Open Wire Detection Supported (for current signals)
Hot-Swapping Supported
Compatible Controllers ABB AC 800M, AC 700, etc.
I/O Series ABB S800 I/O
Electrical Connection via a removable front connector
