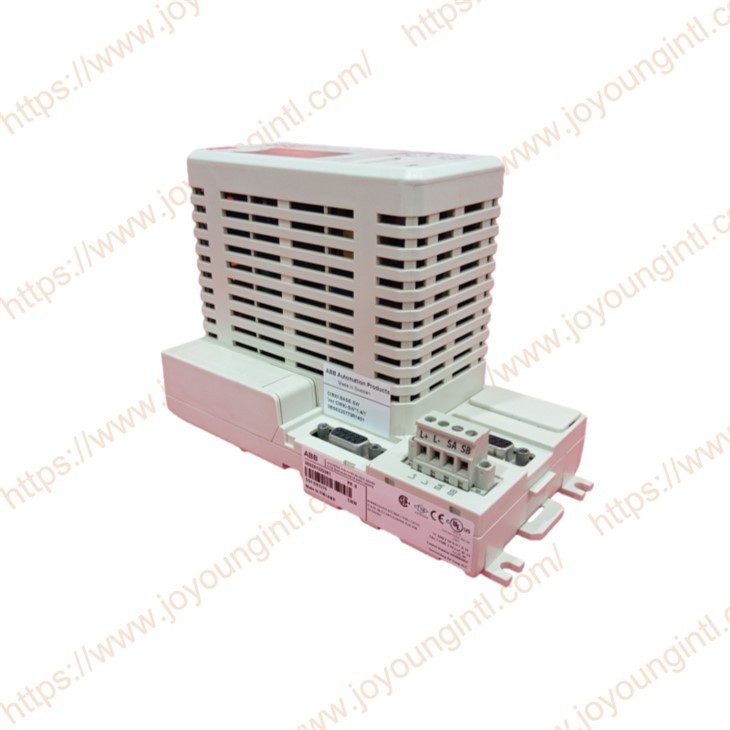

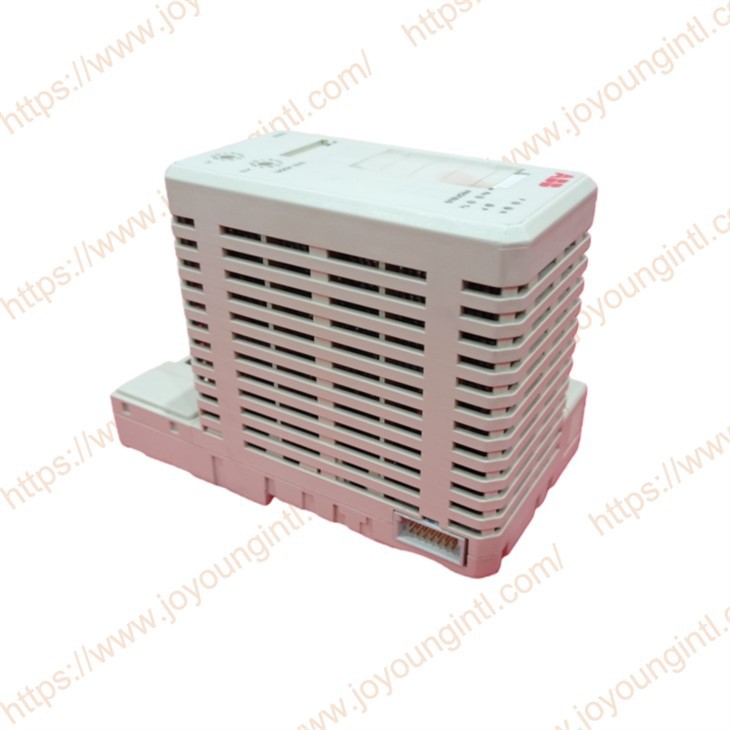

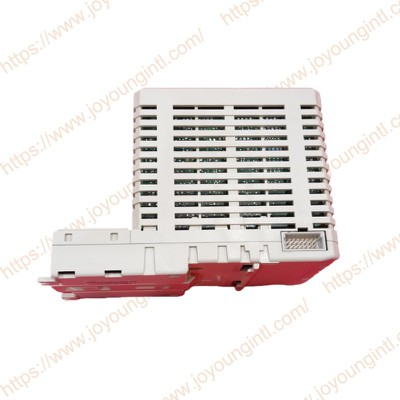

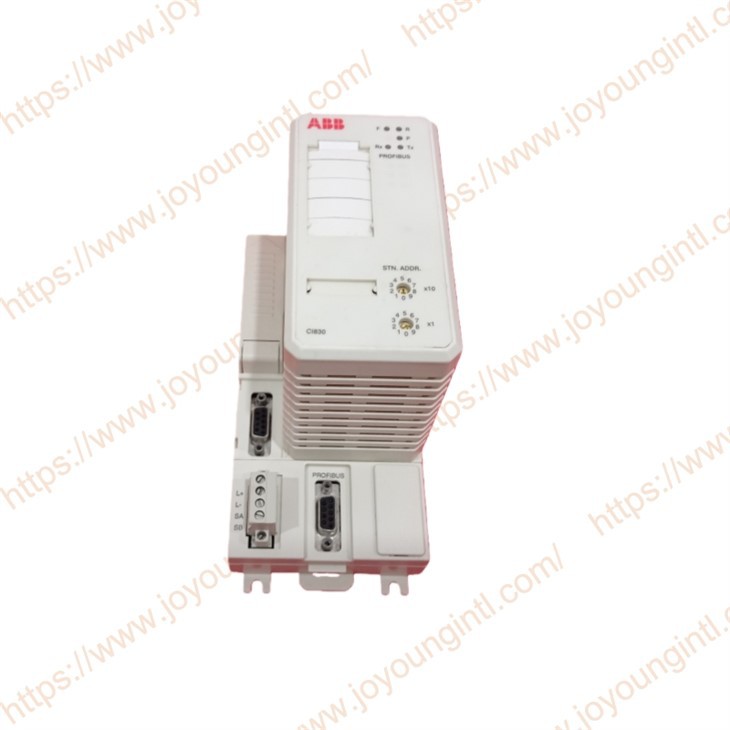

Product Introduction
Technical Specifications
|
Manufacture |
ABB |
|
Model |
CI830 |
| Part Number | 3BSE013252R1 |
|
Description |
PROFIBUS DP-V1Communication Interface
|
|
Origin |
Sweden |
|
Dimension |
10*13*18cm |
|
Weight |
0.6kg |
Product Details
Core Functions and Communication Performance
Dual Protocol Compatibility and High-Speed Transmission: Not only is it compatible with the PROFIBUS DP-V1 3BSE013252R1 protocol, but it is also backwards compatible with the DP-V0 protocol, offering data transmission rates up to 12Mbps, meeting the real-time data interaction needs of industrial scenarios. The module is equipped with a 9-pin D-type connector and uses twisted-pair cable as the transmission medium. A single network can support up to 126 nodes, and it can interface with various PROFIBUS DP devices such as PLCs, remote I/O modules, and smart sensors.
System Adaptation and Data Relay: Designed specifically for the ABB S800 I/O series modules, it can aggregate data from digital and analogue modules in this series and transmit it to master controllers such as PLCs. Simultaneously, it can send control commands from the master controller to field devices, achieving centralised management of distributed control systems.
Fault Diagnosis and Stability Assurance: It has comprehensive diagnostic functions, can monitor the communication link status in real time, and can quickly provide fault information when anomalies occur, facilitating problem localisation by personnel. Meanwhile, the module adopts an electrical isolation design to improve anti-interference capabilities, and combined with the redundancy characteristics of the PROFIBUS DP network, it further ensures communication continuity.
