Product Introduction

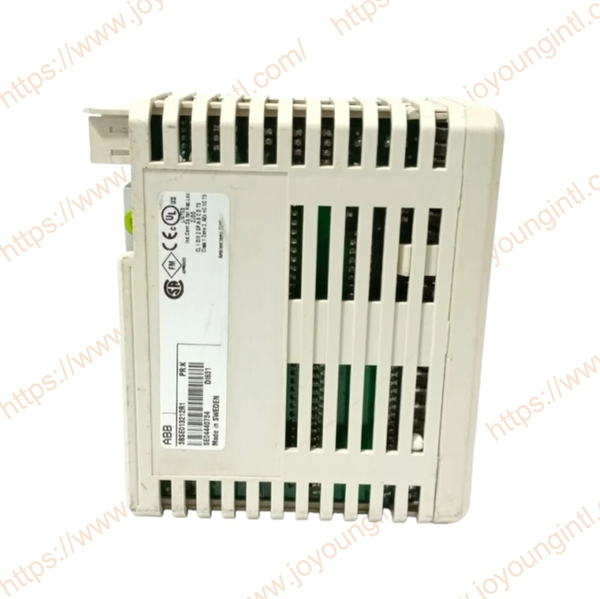

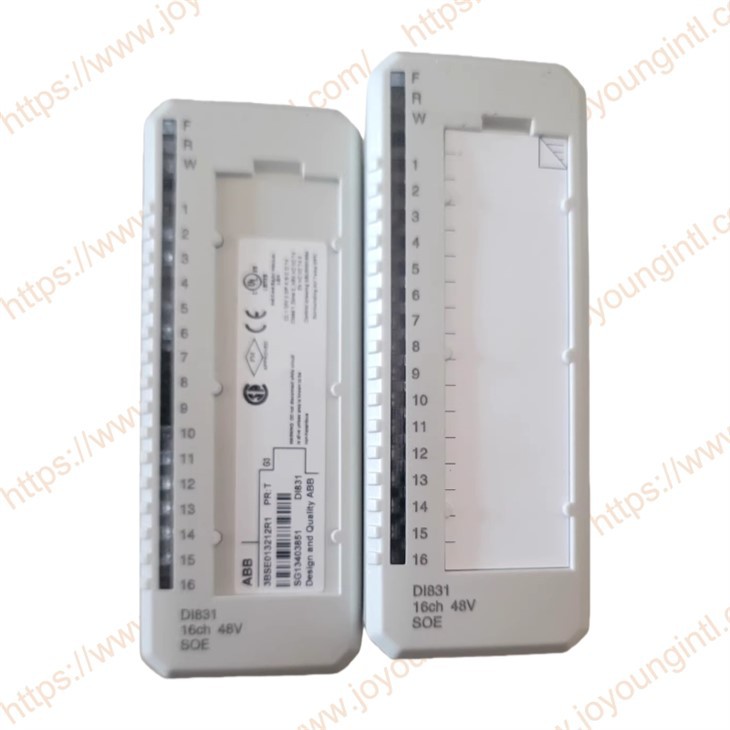

ABB DI831 3BSE013212R1 is a general-purpose analog input module in the ABB S800 I/O series, focusing on high precision and flexibility. It offers eight isolated input channels, each independently configurable for measuring thermocouple (TC), resistance temperature detector (RTD), voltage, and current signals. The DI831 is an eight-channel version of the DI830, maintaining the same universal signal input capability while providing optimized options for applications requiring higher channel isolation or different channel densities, making it particularly suitable for medium- to high-demand process measurement and control tasks.
Technical Specifications
|
Manufacture |
ABB |
|
Model |
DI831 |
| Part Number | 3BSE013212R1 |
|
Description |
Digital Input 48V SOE 16 ch |
|
Origin |
Sweden |
|
Dimension |
102*119*45mm |
|
Weight |
0.3kg |
Product Details
ABB DI831 Analog Input Module 3BSE013212R1 8-Channel Universal Input High-Precision Temperature Measurement.
Attributes & Detailed Parameters
Product Model: DI831
ABB Order Number: 3BSE013212R1
Product Type: General Purpose Analog Input Module
Number of Channels: 8 channels
Supported Signal Types: Thermocouple (TC), Resistance Temperature Detector (RTD), Voltage (V), Current (mA), Resistance
HART Support: No
Isolation: Channel-to-channel isolation, channel-to-system isolation
Cold Junction Compensation: Yes (for thermocouple measurements, high accuracy)
Accuracy: High (refer to the manual for specific values; typical values are better than ±0.1%)
Resolution: 16-bit
Compatible Systems: ABB AC 800M, Freelance

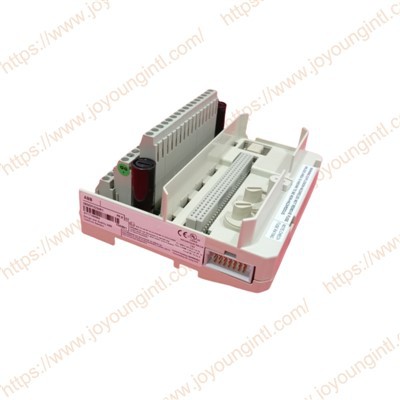

Use Module Termination Unit TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850.
