Product Introduction

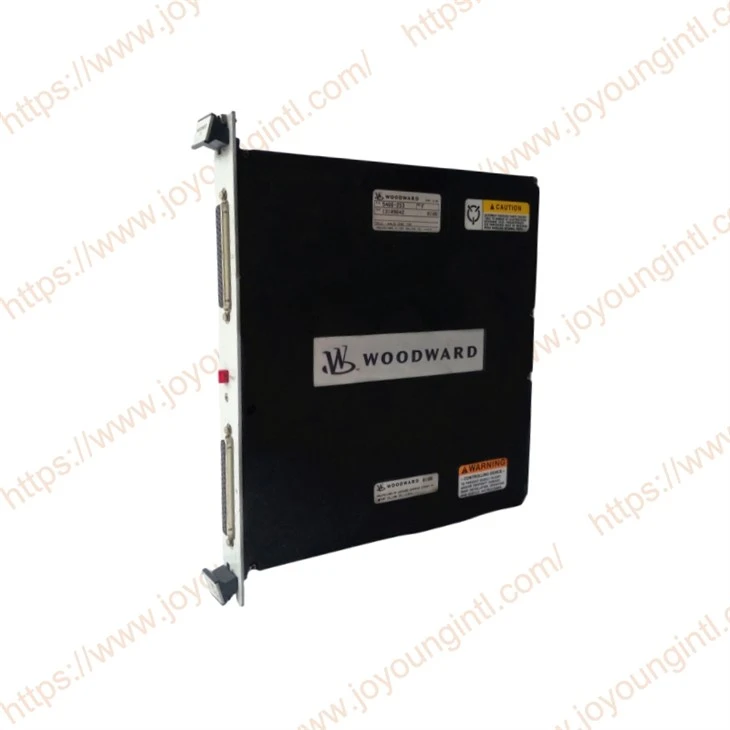

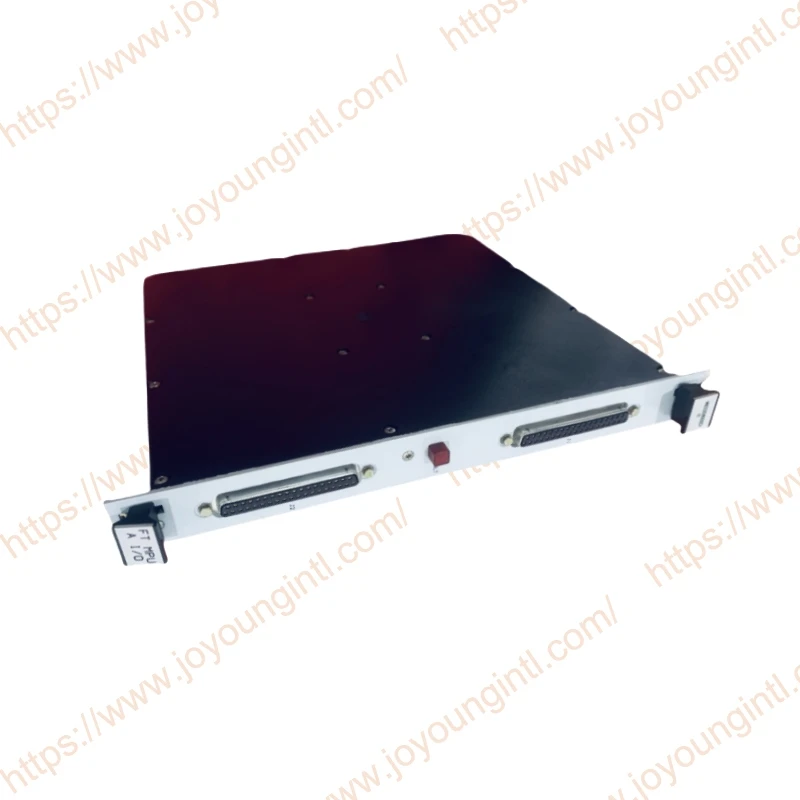

Woodward 5466-253 Analog Combo Module is used for on-site data signal acquisition and proportional control output in industrial automation control systems. It can be integrated into Woodward's control platforms (such as MicroNet TMR or 5009 systems), featuring multiple channel combinations including analog input, analog output, speed input, and proportional actuator output. It also has the Triple Modular Redundancy (TMR) feature and is suitable as the core signal acquisition module in redundant control systems.
Technical Specifications
|
Brand |
WOODWARD |
|
Model |
5466-253 |
|
Description |
Analog Combo |
| Analog input channel |
8：Receive industrial standard 4-20 mA signals and can be connected to various sensors |
| Speed sensing input | 4:Compatible with magnetic pickup and proximity probe, used for rotational equipment speed measurement |
| Simulation output | 4:The output can be configured as a standard analog signal, which can be used for control or feedback to the upper-level system. |
|
Origin |
USA |
|
Dimension |
37*31*7m |
|
Weight |
0.7kg |
Product Details
"5466" is a category within the Woodward standardized I/O module series, designed to expand the input/output channels of the control system and support various industrial signals such as analog quantities, speed sensing signals, and proportional actuators. The design goal of the 5466 series is to integrate multi-signal mixed processing capabilities, allowing it to replace multiple individual modules, thereby simplifying the system architecture, saving space, and reducing wiring complexity.
5466-253 Analog Combo module features:
8 industrial analog input channels: suitable for standard 4-20 mA type sensors or transmitters, used for measuring analog quantities such as temperature, pressure, and flow;
4 speed sensing inputs: specially designed for magnetic pickup or proximity switch type speed sensors, capable of collecting rotational mechanical speed information;
4 analog outputs: configurable to drive 4-20 mA output, used for downstream control or monitoring;
2 proportional actuator drive outputs: can provide driving current for proportional control valves, proportional actuators, etc. (configurable as 4-20 mA or 20-160 mA), used for precisely regulating the controlled object (such as valve opening); High-speed update performance: The signal update time can reach approximately 5 ms level, which can meet the requirements of rapid feedback control.
Input and Output Characteristics:
Analog Input Current Range: 0 - 25 mA (typical industrial 4-20 mA range), with excellent noise suppression capability;
Speed Signal Compatibility: Supports multiple speed sensor modes, including low-frequency magnetic pickup and high-frequency proximity probes;
Output Dynamic Response: The signal response and output refresh time of the overall module are within the range of approximately 5 ms, achieving a rapid control loop response.;
Output Configuration Flexible: Proportional output channels can be configured within the drive current range, suitable for different actuator types; Module redundancy support: It can function as a key high-density I/O unit in the TMR architecture to enhance the system's fault-tolerance capability
FAQ
Q: Why choose the WOODWARD modular system?
A: In traditional control systems, most I/O signals are designed in a decentralized manner: analog input modules, speed sensing modules, and proportional output modules are independent of each other. This leads to complex wiring, inefficient use of cabinet space, and a large number of modules. The 5466-253 integrates multiple functions onto a single module, significantly saving cabinet space; reducing potential failure points caused by intermediate connection components; unifying terminals and interfaces, making on-site installation and maintenance more convenient.
Q: How does the Analog Combo module 5466-253 work in conjunction with the control system?
A:1.Various sensor signals such as temperature, pressure, flow rate, and speed from the equipment site are aggregated at 5466-253. This device is responsible for digitization, filtering, and preprocessing, and then transmits the data to the upper-level controller to achieve real-time monitoring and control strategy determination.
2. When the control system needs to perform proportional control actions (such as adjusting the valve opening or activating the hydraulic actuator), the proportional output section of 5466-253 provides current output according to the controller's instructions, thereby driving the on-site actuators to complete the physical actions.
Q: Procurement Suggestions:
A: As an older model, its design architecture is based on the technological level of the 1990s. The new module (such as the Smart-Plus series) offers superior performance in terms of resolution, noise reduction, and the number of channels.
