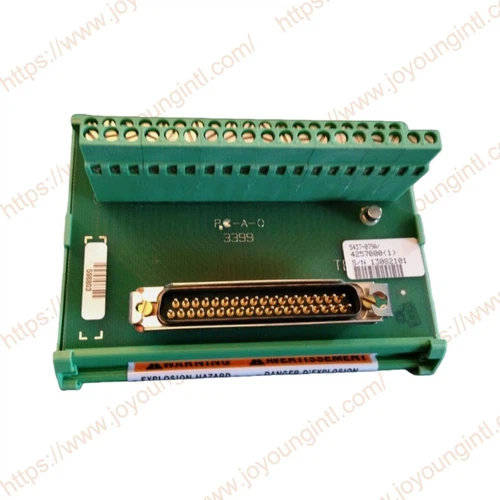

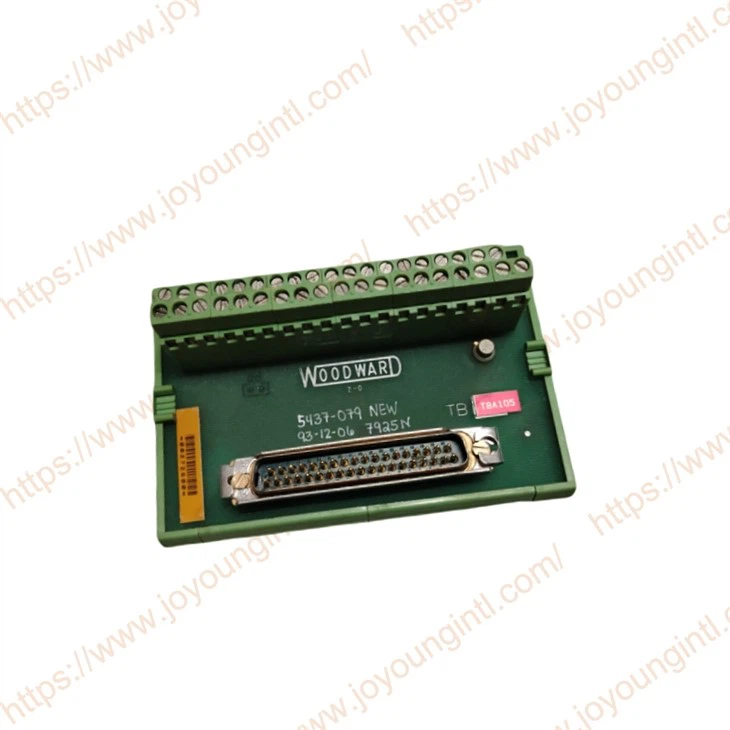

WOODWARD 5437-079 NETCON FIELD TERMINA

Fault phenomenon: The terminal module cannot communicate normally with other devices (such as controllers, host computers, etc.), and data transmission is interrupted, or errors occur.
Possible causes and solutions:
Communication line problem: Check whether the communication cable is firmly connected and whether there is any damage or a short circuit. If there is any damage, the communication cable needs to be replaced; ensure that the connecting plug and socket are in good contact, and re-plug to eliminate possible poor contact problems.
Communication parameter setting error: Check whether the communication parameters of the terminal module and the communication counterpart device are consistent, such as baud rate, data bit, stop bit, check bit, etc. If there is any discrepancy, the parameters of both parties need to be modified to be consistent.
Module failure: Try to replace a Woodward field terminal module of the same model to determine whether the original module itself has a fault. If the communication returns to normal after the replacement, it means that the original module needs to be repaired or replaced.
Interference problem: Strong electromagnetic interference on the site may affect the communication quality. Additional shielding measures can be taken, such as using shielded cables, laying communication lines separately from strong power lines, etc.; you can also check whether there are interference sources, such as frequent start and stop of large equipment, and try to stay away from interference sources or take anti-interference measures such as filtering.

Failure phenomenon: The input signal cannot be collected normally, or the output signal cannot drive the external device normally.
Possible causes and solutions:
Damage to input and output channels: Use professional detection tools or equipment to check whether the input and output channels are damaged bya short circuit, an open circuit, etc. For damaged channels, if the module is within the warranty period, you can contact the manufacturer for repair or replacement; if it is beyond the warranty period, you can consider having professional maintenance personnel repair or replace the problematic channel components.
External device failure: When the output signal is abnormal, it is necessary to check whether the connected external device is working properly. You can test whether it is damaged by directly applying power to the external device. If the external device fails, it needs to be repaired or replaced.
Wiring error: Carefully check whether the input and output wiring is correct, and whether there are problems such as reverse connection, missing connection, and virtual connection. Rewire according to the correct wiring diagram to ensure that the wiring is firm and reliable.

Failure phenomenon: The terminal module cannot be powered on normally, and the power indicator light is off or flashes abnormally.
Possible causes and solutions:
Power supply problem: Check whether the power supply is normally connected to the module, and measure whether the power supply voltage is within the operating voltage range specified by the module. If the power supply voltage is abnormal, check whether the power line, power adapter, etc., are damaged, and repair or replace the faulty parts in time.
Power module failure: The power module inside the Woodward field terminal module may be faulty. You can use a multimeter or other tools to detect the output voltage of the power module. If the output voltage is abnormal, you need to replace the power module.
Overcurrent protection triggering: If there is a short circuit or other fault inside the module, it may cause the overcurrent protection circuit to operate. At this time, you need to check whether there are obvious signs ofa short circuit inside the module. After eliminating the short circuit fault, you can try to power on again to see if it returns to normal.
