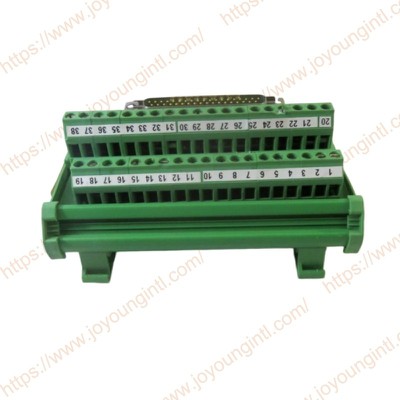

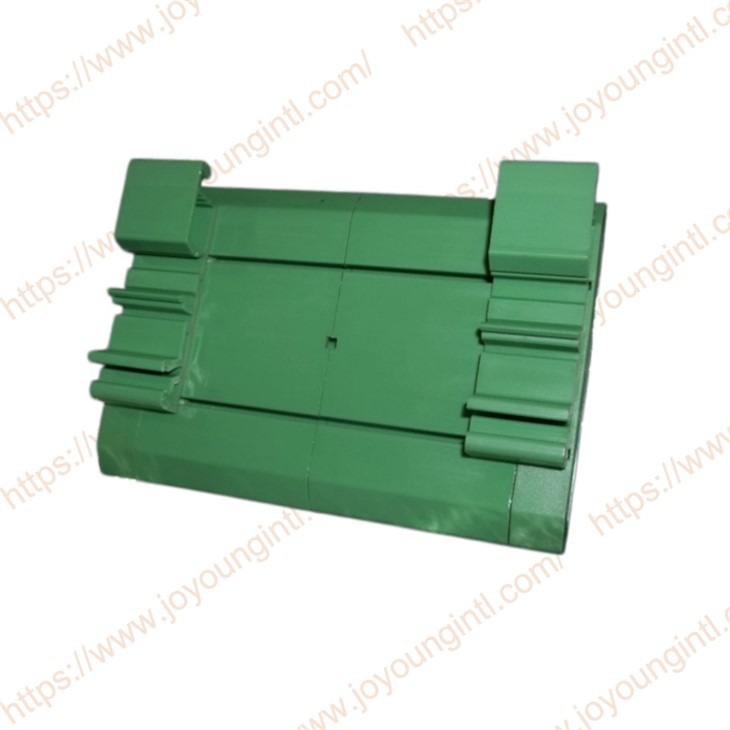

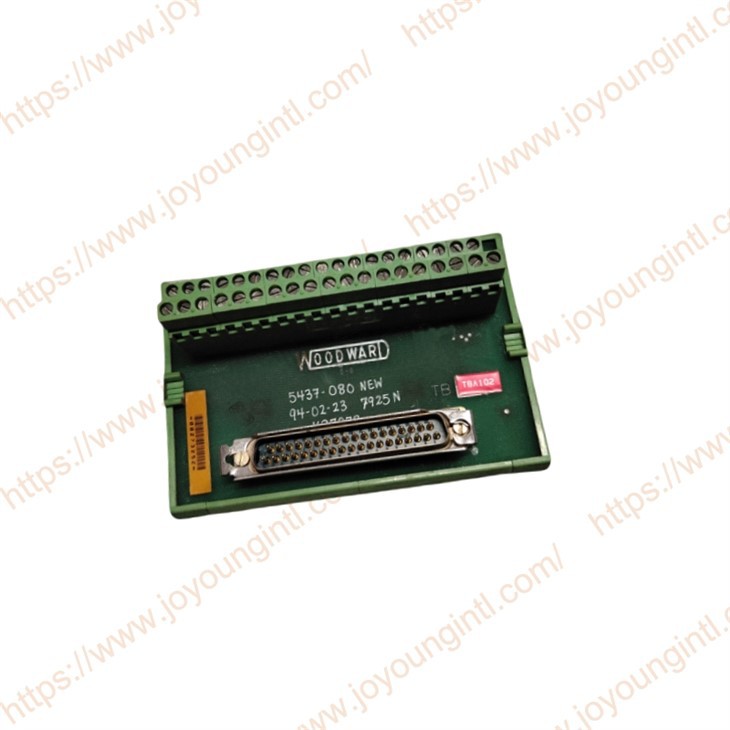

5437-080 NetCon Field Terminal Module is specifically designed for the WOODWARD 5400 series turbine control system. It plays a crucial role in the MicroNet control system architecture as a key signal connection and on-site wiring interface, serving to establish the signal channels between on-site devices (such as sensors, actuators, etc.) and the control system I/O modules.
In modern industrial control systems, especially in the fields of gas turbines, steam turbines, and diesel generator control, the control systems usually adopt a modular design.
On-site equipment → Terminal module (5437-080) → I/O module → Controller (MicroNet)
| Technical Specifications | |
|
Brand |
WOODWARD |
|
Model |
5437-080 |
| Description | NetCon Field Terminal Module |
|
Input voltage |
24V DC |
| Series | 5400 Series |
| Application system | MicroNet Control System |
|
Origin |
USA |
|
Dimension |
10*10*8cm |
|
Weight |
0.25kg |
Why choose 5437-080
The 5437-080 module is equipped with a standard 37-pin connection interface, which supports multiple signal inputs and enables the following functions:
Analog signals (such as 4-20mA)
Digital signals (switching quantities)
Control feedback signals
5437-080 adopts an industrial-grade terminal design and supports:
Cage Clamp terminal: Ensures secure and reliable wiring
Shield termination process: Reduces signal interference
Anti-vibration structural design: Suitable for harsh industrial environments
In industrial settings, electromagnetic interference (EMI) is a significant factor affecting signal quality. WOODWARD 5437-080 features:
Shielding grounding design
EMI protection structure
Signal isolation capability
Instruction for Use
Quick installation and disassembly
Saves cabinet space
Facilitates system expansion
Fix the module onto the DIN rail
Connect the on-site cables to the terminals
Connect the 37-pin interface to the I/O module
Check the wiring and grounding
Power on and test
Ensure voltage matching (24V DC)
Avoid overloading or incorrect wiring
Correctly ground to prevent interference
Regularly check the status of terminal connections
Procurement Instructions
Q: Is the WOODWARD 5437-080 an input module or an output module?
A: 5437-080 is a field terminal/interface module. It does not directly handle control logic, but is responsible for signal input, distribution, and transmission.
Q: What are the power supply requirements for WOODWARD 5437-080?
A: Usually, a 24V DC power supply is adopted.
Q: How to determine if a module is faulty?
A: Signal anomaly
LED status anomaly
System communication interruption
