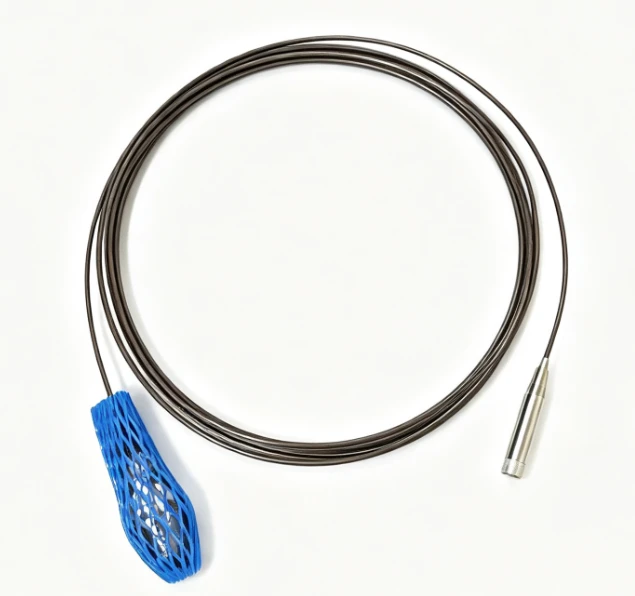

The CP216-143-216-000-251 piezoelectric dynamic pressure sensor is used to measure dynamic pressure signals such as pressure pulsation, transient pressure changes, and pressure oscillations. This model adopts the piezoelectric measurement principle and does not require an external excitation power supply. The output is a charge signal. Usually, it needs to be combined with charge conversion/signal conditioning equipment such as Vibro-Meter IPC704 for signal conversion before being connected to the back-end data acquisition or monitoring system. Its application focuses include gas turbines, engine test benches, and other scenarios involving high temperatures, high pressures, and dynamic pressure monitoring.
If you need to purchase CP216 143-216-000-251, it is recommended that you provide the following information when making the inquiry: Model: CP216
Part Number: 143-216-000-251
Quantity: Required Quantity
Destination: Shipping Country / City
We can further confirm: Current Stock → Price → Lead Time → Product Photos → Nameplate → Test → Shipping
| Model / Part Number / Status | |
|---|---|
| Model | CP216 |
| Ordering Number | 143-216-000-251 |
| Product Description | Piezoelectric Pressure Transducer |
| Measurement Principle | Compression-mode Piezoelectric |
| Measurement Type | Dynamic Pressure |
| Output Type | Charge Output |
| Cable | Integral Mineral-Insulated Cable |
| Connector Configuration | Vibro-Meter High-Temperature Connector Configuration |
| Warranty | 12 Months |
| Origin | Switzerland |
| Dimension | 17*17*7cm |
| Weight | 0.34kg |
| HS code | 9026900090 |
| Application Category | Vibration / Dynamic Pressure Monitoring |
| Typical Sensitivity | 200 pC/bar |
| Dynamic Measuring Range | Approximately 0.0005 to 250 bar |
| Overload Capability | Up to 350 bar |
| Frequency Response | Approximately 2 Hz to 15 kHz |
| Resonant Frequency | >80 kHz |
| Acceleration Sensitivity | ≤0.5 pC/g |
| Continuous Temperature Range | -54°C to +470°C |
| Extreme Temperature Range | -70°C to +520°C |
| Shock Capability | Up to 2000 g peak, depending on specified test conditions |
| Electrical Output | Charge Output |
| Input Power | None |
| Cable | Mineral-Insulated Twin-Conductor Cable |
| Signal Conditioning | Charge Converter / Signal Conditioner Required |
Special attention is required: 143-216-000-251 is a part of the complete order number and cannot be determined solely based on CP216. The CP216 series has different connector and cable configurations, so when replacing, the complete Part Number should be used as the basis. The original CP216 product documentation also distinguishes the order numbers according to LEMO and Vibro-Meter high-temperature connectors.
Product positioning
143-216-000-251 CP216 piezoelectric dynamic pressure sensor is designed for extreme industrial environments and high-demand dynamic pressure monitoring scenarios. It uses highly stable artificial piezoelectric materials and features an extremely wide temperature range, high pressure capacity, wide frequency response, and resistance to shock.
Unlike ordinary static pressure transmitters, the main function of the CP216 is not to continuously output the traditional industrial pressure 4–20 mA signal, but to capture: Pressure Pulsation
Dynamic Pressure
Transient Pressure
Pressure Oscillation
Combustion Pressure Fluctuation
Therefore, it is more suitable for high-speed dynamic pressure testing and condition monitoring.
The sensor uses piezoelectric materials, which generate charge outputs related to mechanical action when subjected to pressure changes. The back end requires the use of a suitable charge converter/signal conditioner to convert and condition the signals.
143-216-000-251 CP216 measures pressure based on the piezoelectric effect principle. When subjected to force or pressure, piezoelectric materials generate electric charges, and the magnitude of these charges is proportional to the applied pressure. The CP216 uses artificially synthesized piezoelectric ceramic materials, which have higher sensitivity and better frequency response characteristics, enabling the sensor to perform exceptionally well in dynamic pressure measurement.
CP216 with LEMO connector:
CP216 with Vibro-Meter high-temperature connector:
Piezoelectric PressureTransducer CP216 is equipped with an integral mineral-insulated cable. This cable features high temperature resistance, corrosion resistance, radiation resistance, and mechanical strength resistance.
Depending on the order number, the following options are available:
LEMO standard connector version
Vibro-Meter high-temperature-specific connector version
143-216-000-251 indicates a connector with a high-temperature version.
CP216 Related / Alternative Ordering Numbers
When making the selection, the following factors should be taken into consideration:
Working temperature range;
Installation space and cable length requirements;
Does the output interface type match the requirements of the on-site equipment?
To order, please specify:
|
Type |
Designation |
Cable length |
Ordering number |
|
CP216 |
Piezoelectric pressure transducer with |
Defined when ordering |
143-216-000-011 |
|
0.5 m |
143-216-000-021 |
||
|
1 m |
143-216-000-031 |
||
|
2 m |
143-216-000-041 |
||
|
3 m |
143-216-000-051 |
||
|
CP216 |
Piezoelectric pressure transducer with |
Defined when ordering |
143-216-000-111 |
|
0.5 m |
143-216-000-121 |
||
|
1 m |
143-216-000-131 |
||
|
2 m |
143-216-000-141 |
||
|
3 m |
143-216-000-151 |
||
|
5 m |
143-216-000-161 |
Installation Key Points and Techniques
Sensor installation location:
Ensure that the sensing points can truly reflect the changes in pressure.;
Avoid installing in areas with strong electromagnetic interference.
Proper welding or threaded installation, ensuring no leakage.
Cable wiring:
Mineral-insulated cables should be avoided from being subjected to severe bending.
Install guide pipes or protective pipes to prevent damage from external forces.
Signal conditioning:
Since the output is a piezoelectric charge signal, it is recommended to use dedicated charge amplifiers (IPC704/IPC705) and other devices for signal conversion, calibration, and noise suppression.
Although CP216 has the ability to withstand high temperatures, prolonged extreme operation will cause temperature drift. Suggestion:
Use a highly stable signal chain conditioner.;
Carry out on-site temperature calibration;
Perform software compensation for the influence of temperature.
Piezoelectric sensors have a certain sensitivity to mechanical vibrations. The CP216 incorporates an internal insulation structure and vibration suppression measures, but it is still recommended that:
Use the vibration-damping mounting base.
Avoid installation within the range of strong mechanical resonance frequencies.
FAQ
Q: What is the temperature capability of CP216?
A: Published CP216 information indicates a continuous operating range around -54°C to +470°C, with an extreme range of approximately -70°C to +520°C.
Q: What is the output of CP216?
A: The sensor provides a charge output, so an appropriate charge converter or signal-conditioning device is normally required.
Q: Can CP216 work with IPC704?
A: Yes. CP216 is designed to be used with appropriate charge conversion equipment, and public product information specifically identifies IPC704 as a compatible signal-conditioning device.
Q: Is 143-216-000-251 interchangeable with other CP216 models?
A: Not automatically. CP216 has multiple ordering configurations involving connector and cable arrangements. The complete Part Number should be checked before replacement.
Q: What should I provide when requesting a quotation?
A: Please provide:
CP216
143-216-000-251
Quantity
Destination
If replacement is involved, also provide the existing sensor photo, nameplate, cable length and connector photo.
