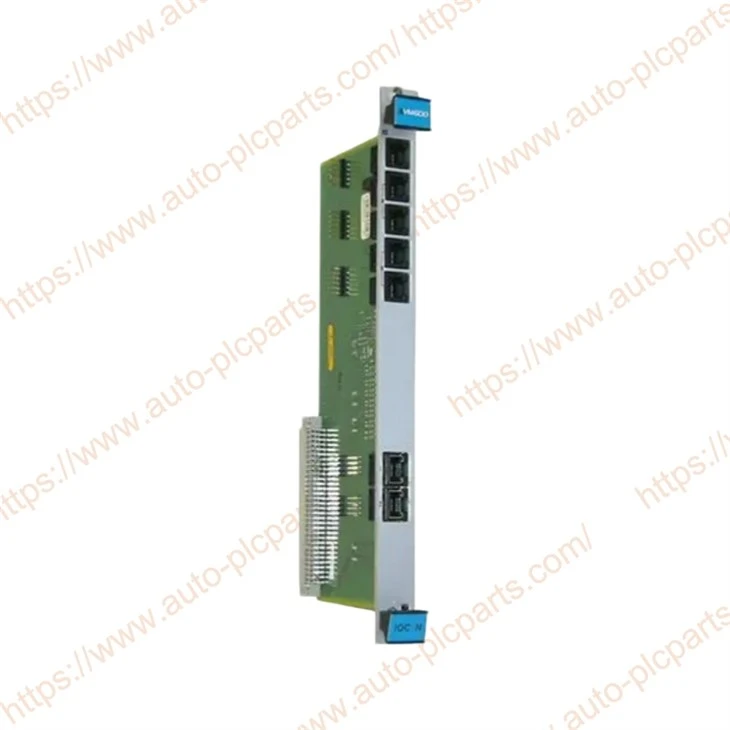

The IOCN 200-566-000-114 is a VM600 Input/Output Communication Module designed for use in the VM600 Machinery Protection System (MPS).
To enhance the accuracy of procurement, it is recommended to prepare the following information before ordering IOCN 200-566-000-114:
Product Model (Part Number)
CPU Module Model
VM600 Rack Model (ABE040 or ABE042)
VibroSight Software Version
System Firmware Version
Communication Protocol Type
Project Usage (Replacement of spare parts, New project establishment, or system upgrade)
Products Description
| Product Model | IOCN 200-566-000-114 |
| Product Type | Input/Output Communication Module |
| System Series | VM600 Machinery Protection System |
| Function | I/O Expansion and Communication Interface |
| Application | Machinery Condition Monitoring System |
| Installation | VM600 Rack Mounted |
| Mounting Method | Plug-in Module |
| Compatible System | VM600 MPS |
| Communication Interface | VM600 Internal Communication Bus |
| Power Supply | Supplied via VM600 Rack Backplane |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Approx. 160 × 40 × 160 mm |
| Net Weight | Approx. 0.45 kg |
| Country of Origin | Switzerland |
| HS Code |
8538909199 |
Key Features
The IOCN 200-566-000-114 is specifically developed for the VM600 MPS platform, ensuring compatibility with existing rack-based machinery monitoring systems.
It can be integrated into VM600 configurations requiring additional communication and I/O management functions.
This module provides additional I/O interface capability within the VM600 architecture.
It helps connect monitoring components and system devices while supporting signal exchange between different modules installed in the VM600 rack.
The IOCN module adopts a VM600 rack plug-in installation method.
The modular design allows easier replacement during system maintenance without requiring major modifications to the existing control cabinet configuration.
The module communicates through the VM600 internal communication bus, allowing coordinated operation with other VM600 system components.
This architecture supports centralized monitoring and data exchange within machinery protection applications.
The IOCN itself does not have the function of data collection. Instead, it is used as a communication expansion unit for the CPUM module. When the two are combined, they can accomplish functions such as system configuration management, network communication, alarm upload, event recording, and remote maintenance.
6. Applicable for system upgrades and module replacements
For the VM600 system that has been in operation for many years, IOCN 200-566-000-114 is commonly used for replacing faulty modules, system maintenance, and purchasing spare parts. Before the purchase, it is recommended to confirm the rack model, CPU module version, and system software configuration to ensure compatibility after installation.
Compatible With
--Compatible with VM600 Machinery Protection System(MPS)
IOCN 200-566-000-114 can be applied to the VM600 Machinery Protection System (MPS) as a system communication unit, enabling the exchange of monitoring data, alarm information, and equipment operation status with the upper-level control system.
In the mechanical protection system, IOCN works in conjunction with CPUM to uniformly transmit the data collected by each monitoring module to the PLC, DCS or SCADA platform, providing complete communication support for the protection of rotating machinery.
--Compatible with VM600 Condition Monitoring System(CMS)
In addition to the mechanical protection system, IOCN is also compatible with the VM600 Condition Monitoring System (CMS), which is used for equipment condition monitoring and operation data management.
In the CMS platform, the IOCN is responsible for transmitting the vibration, displacement, speed, and other status data collected by the monitoring module to the VibroSight software or the enterprise monitoring platform, facilitating maintenance personnel to conduct equipment status analysis, trend monitoring, historical data query, and fault diagnosis.
--Compatible with CPUM Modular CPU Module
IOCN 200-566-000-114 must be used in conjunction with the CPUM Modular CPU Module.
CPUM is the central processing module of the VM600 system, responsible for system configuration, data processing, logical operations, and module management; IOCN is responsible for data communication between the system and external devices.
The two are connected through the VM600 backplane and together form the system control and communication platform.
When purchasing IOCN, it is recommended to simultaneously confirm:
CPUM module model
Component number (Part Number)
Firmware version
System software version
--Compatible with VM600 ABE040 Rack
The IOCN can be installed in the VM600 ABE040 Rack and establish a communication connection with the CPU module through the backplane.
ABE040 is one of the common standard racks of the VM600 system, capable of accommodating multiple monitoring modules and communication modules. It is widely used in the fields of power generation, power supply, the petrochemical industry, and industrial manufacturing.
During installation, it is necessary to ensure that the IOCN is installed in the corresponding rear communication slot and is in one-to-one correspondence with the front CPU module.
--Compatible with VM600 ABE042 Rack
For systems equipped with the VM600 ABE042 Rack, the IOCN can also function normally.
ABE042 rack is suitable for projects that require more module capacity or special system configurations. Different types of monitoring modules and control modules can be installed according to on-site needs.
When making a purchase, it is recommended to confirm:
Current rack model
Module installation location
Backplane version
System configuration method
CPUM and IOCN modular CPU card and input/output card
In the VM600 online monitoring system, the IOCN (Input Output Communication Module) and the CPUM (Modular CPU Module) usually work together as a set of modules. Therefore, many purchasing personnel may mistakenly believe that they belong to the same product. In fact, the two undertake completely different responsibilities and together form the data processing and communication center of the VM600 system.
| Item | IOCN 200-566-000-114 | CPUM 200-595-067-114 |
|---|---|---|
| Product Type | Input Output Communication Module | Modular CPU Module |
| Primary Function | Communication and I/O interface | Central processing and system control |
| Main Responsibility | External communication and network connectivity | System management and data processing |
| Data Processing | No | Yes |
| System Control | No | Yes |
| Communication Interface | Yes | Works together with IOCN |
| Ethernet Ports | Dual Ethernet (RJ45) | Supported through IOCN |
| Serial Communication | RS-232 / RS-485 | Used together with IOCN |
| Modbus TCP | Supported | Supported through IOCN |
| PROFINET | Available depending on system configuration | Supported together with IOCN |
| Configuration Software | VibroSight | VibroSight |
| Standalone Operation | No | Designed to operate with IOCN |
| Installation Position | Communication module connected to CPUM | Main CPU module in VM600 rack |
| Typical Application | System communication, remote maintenance, data transmission | System control, module management, diagnostics, and configuration |
FAQ
IOCN 200-566-000-114 VM600 Input Output Communication Module
What role does the IOCN 200-566-000-114 play in the VM600 system?
This module is primarily responsible for input/output management and data communication between modules within the VM600 system. By working in conjunction with other VM600 modules, the IOCN 200-566-000-114 enables the system to perform equipment status data transmission and machinery protection functions.
What types of industrial equipment does the IOCN 200-566-000-114 primarily monitor?
This module is typically used with industrial equipment equipped with the VM600 machinery protection system, including steam turbines, gas turbines, compressors, pumps, electric motors, and other large rotating machinery. It is primarily used to support equipment operational status monitoring and fault early-warning systems.
How does the IOCN 200-566-000-114 work with other VM600 modules?
The IOCN module exchanges data with other modules in the system via the VM600 internal communication bus. It serves as an interface for system communication and signal expansion, enabling coordinated operation among different monitoring modules to collectively perform machinery condition monitoring tasks.
Why does the VM600 system require the IOCN 200-566-000-114?
In complex industrial equipment monitoring applications, a single module often cannot meet all signal management requirements. The IOCN 200-566-000-114 expands the system's input/output capabilities and enhances information exchange between modules, allowing the VM600 system to adapt to a wider range of industrial monitoring scenarios.
