Product Introduction

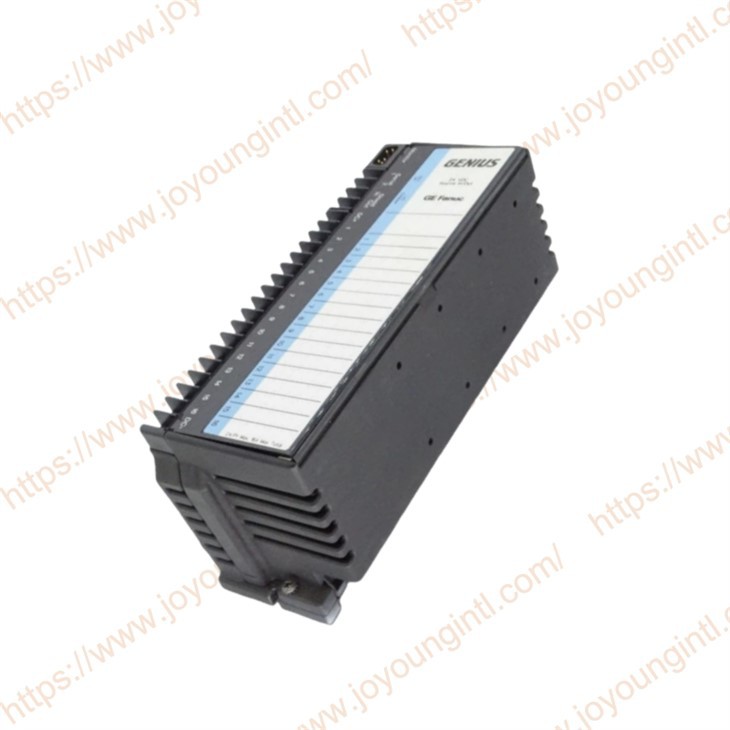

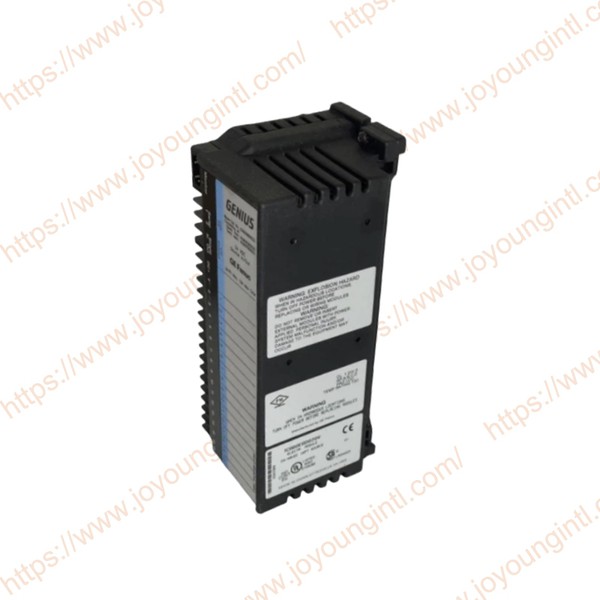

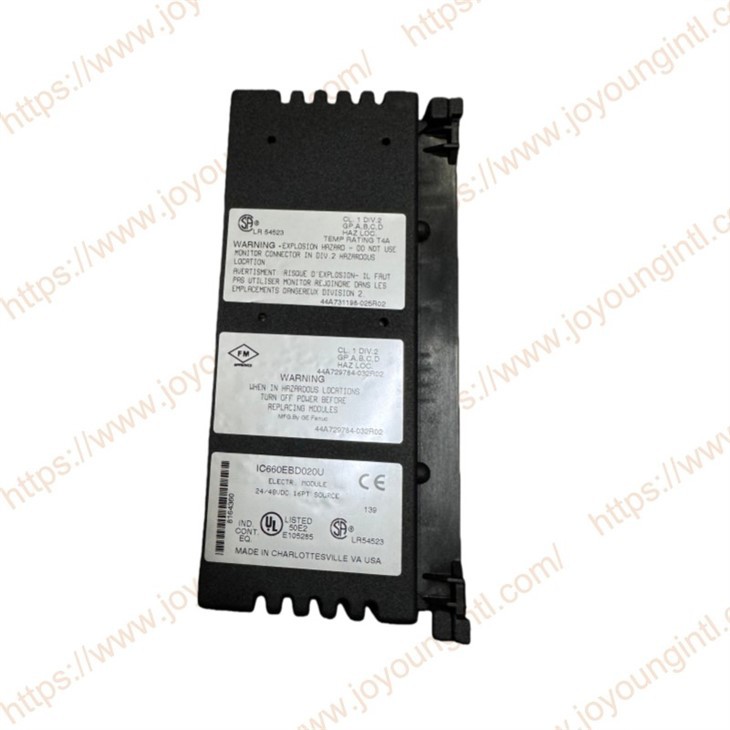

IC660BBD022 is a 16-circuit sourcing I/O module from GE Fanuc, part of the Genius I/O Block series. Each circuit can be easily configured as an input, a three-state input, or an output, and output circuits can be directly connected to input circuits. Configurable features include an output pulse test function, selectable input filter time (10 ms to 100 ms), output power-up default value, and output hold last state or default value.
Technical Specifications
|
Manufacture |
General Electric(GE) |
|
Model |
IC660BBD022 |
| Part Number | IC660BBD022 |
|
Description |
Block 24/48Vdc Source I/O 16 Circuits, 2/3 Wire Sensor Compatible |
|
Origin |
USA |
|
Dimension |
23*9*10cm |
|
Weight |
1.8kg |
Product Details
IC660BBD022 Installation Instructions：
Carefully inspect all shipping containers for damage. If any equipment is damaged, notify the delivery service immediately. Save the damaged shipping container for inspection by the delivery service. After unpacking the equipment, record all serial numbers. Save the shipping containers and packing material in case it is necessary to transport or ship any part of the system.
Block Mounting： Genius I/O blocks are considered "open equipment" and therefore must be installed within a protective enclosure. They should be located in an area that is clean and free of airborne contaminants. There should be adequate cooling airflow.
The block can be mounted right side u, or upside down. Leave at least 2 inches of space between blocks. Mount the block by drilling two screw or bolt holes for 8-32 hardware. Position the block so that the notches in the upper and lower flanges line up with the mounting holes. Mount the block using 8-32 screws. Use star washers to provide ground integrity.
The block's mounting screws must not be used as the only means of grounding the block. Connect the green ground screw on the block to a reliable ground system using a short wire lead, minimum size AWG #12 (avg 3.3mm2 in cross-section).
Block Wiring：
All terminals accept one AWG #12 wire (avg 3.3mm2 cross-section) or two AWG #14 wires (each avg 2.1mm2 in cross-section). The minimum recommended wire size is AWG #22 (avg .36mm2 in cross-section).
Block terminals can also accommodate spade or ring terminals up to 0.27 inch (6.85mm) wide with a minimum opening for a #6 screw, and up to 0.20 inch (5.1mm) depth from the screw center to the back barrier. Be sure unshielded wire ends are not longer than 2 inches (5 cm). Do not overtorque the terminal screws. Recommended torque for all terminals is 6 in/lb (.678 N/M).
Serial Bus Wiring：

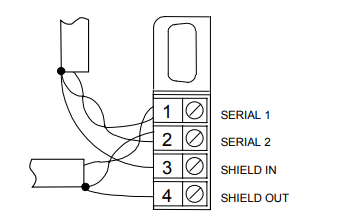

Using one of the cable types recommended in the System and Communications User's Manual, connect the serial bus to terminals 1- 4. (If a Bus Switching Module will be connected directly to the block, see below instead.)

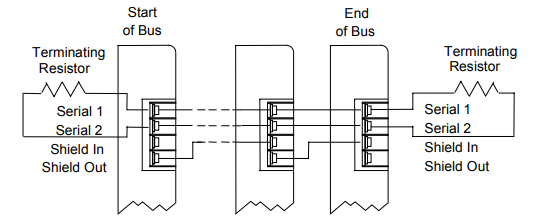

If the block is at either end of the bus, connect a terminating resistor of the appropriate type (see the System and Communications User's Manual for details) across its Serial 1 and Serial 2 terminals.
Wiring for a Bus Switching Module：
If the block will be a BSM Controller, attach the Bus Switching Module to the block's serial bus terminals. Attach the serial bus cables to the BSM as described in the Bus Switching Module datasheet. Wire the BSM like a load to circuit 1. Connect either BSM pigtail wire to terminal 6. For a DC Sink block, connect the other BSM wire to DC+. For a DC Source block, connect the other BSM wire to the DC
Power Connections：
Connect a DC power source to the DC+ terminal (5) and the return to the DC- terminal (22). Depending on the layout and current loads, positive and negative connections can be bussed and made by individual wires back to the block or power source.
