Products Description

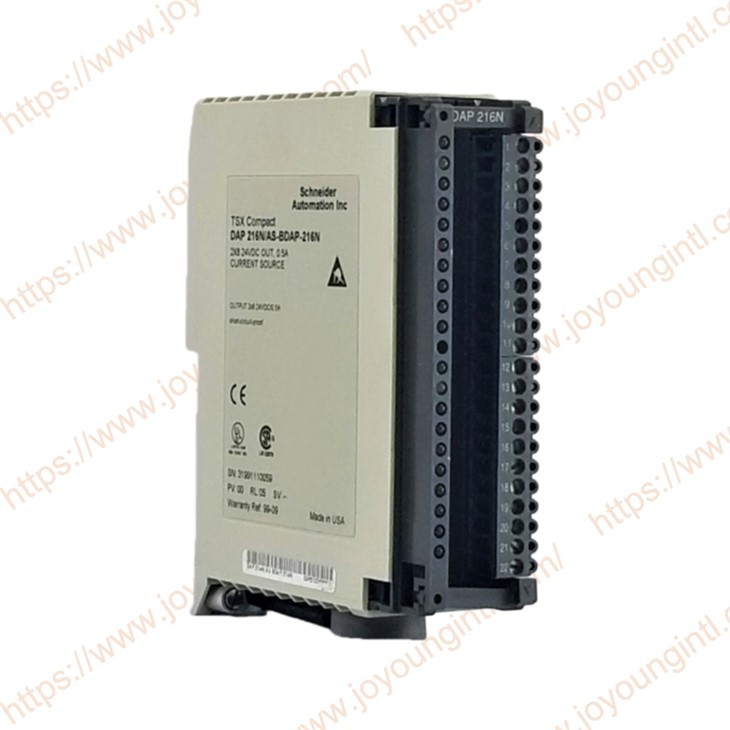

AS-BDAP-216N is a digital output module designed for industrial control systems, playing a pivotal role in the execution of control commands within automation systems. It serves as a critical interface between the decision-making layer of the PLC and the operational layer of field devices, enabling program logic to be applied accurately and reliably to relays, solenoid valves, and various types of switching loads.
Technical Specifications
|
Brand |
Modicon |
|
Model |
AS-BDAP-216N |
|
Part Number |
AS-BDAP-216N |
|
Description |
Digital Output Module |
|
Origin |
France / USA |
|
Dimension |
35*20*10cm |
|
Weight |
0.3kg |
Module Function Description
The AS-BDAP-216N is primarily designed to convert the logical outputs from a PLC into actual digital control signals for driving external devices such as relays, contactors, indicator lights, motor starter coils, and similar equipment. It offers the following key features: 16 discrete output points (typically configured in a 2 x 8 channel arrangement); Transistor-based output type, ideal for high-speed digital signal control; Support for standard industrial control voltage levels; Compatibility with the Modicon TSX Compact PLC bus interface.
Installation method: Backplate insert type integrated module;
Terminal points: Generally, there are 22 screw terminals (corresponding to I/O channel allocation and power/bus connection).
Debugging suggestions:
1. Conduct a no-load test first: Ensure that the module communicates normally with the PLC;
2. Verify the output channel by channel: Check through the PLC software whether the output bits respond logically;
3. Incorporate software and hardware protection logic: Avoid incorrect actions or load short circuits.
Explanation of the operation mechanism of the standard direct current digital output form
In AS-BDAP-216N, the digital output is not simply a "presence or absence" of voltage, but is accomplished through a complete control process that involves the control logic within the module, the driving circuit, and the output interface working together.
When the PLC program generates output instructions during the scanning cycle, these instructions are first transmitted through the system bus to the AS-BDAP-216N module. The internal control logic of the module then evaluates the instructions and converts them into switch control signals for the corresponding channels. At this point, the output drive circuit is activated, causing the channel to be in an on or off state, thereby forming a stable and recognizable DC digital signal at the output terminal.
The output circuit adopts a dedicated DC drive structure to ensure that it can provide continuous and stable voltage and current during the conducting state, and achieve clear electrical isolation during the disconnection state. This "deterministic output" design enables the field equipment to clearly distinguish between the action and stop states, avoiding misjudgment due to edge levels or fluctuations.
During the signal transmission process, the module maintains stable control over the output state. Even if the PLC program is frequently refreshed or multiple channels are switched simultaneously, the output signal remains consistent and repeatable. This mechanism ensures that the digital output is not directly affected by program jitter or load changes, thereby guaranteeing that the control instructions can be accurately executed.
Advantages of AS-BDAP-216N
Stable and Reliable Output
AS-BDAP-216N Digital Output Module employs a mature digital output driving architecture, ensuring stable output signals that maintain consistent electrical performance even under frequent start-stop cycles and prolonged continuous operation. With excellent electromagnetic interference immunity, the module is well-suited for industrial environments characterized by complex electromagnetic conditions, such as those involving motors and variable frequency drives.
Enhanced System Integration Efficiency
The AS-BDAP-216N Digital Output Module provides multiple digital output channels, enabling centralized control of several execution units within a single module. This reduces the number of required modules and minimizes cabinet space occupancy. The centralized output design simplifies system wiring, thereby improving the overall integration level and maintainability of the control system.
Fast Response Speed
The module's output is synchronized with the PLC scan cycle, resulting in minimal command execution delay and rapid response to changes in control logic. It delivers reliable real-time output performance, making it ideal for applications requiring precise timing control, such as equipment start-stop sequences, interlocking operations, and dynamic mode switching.
