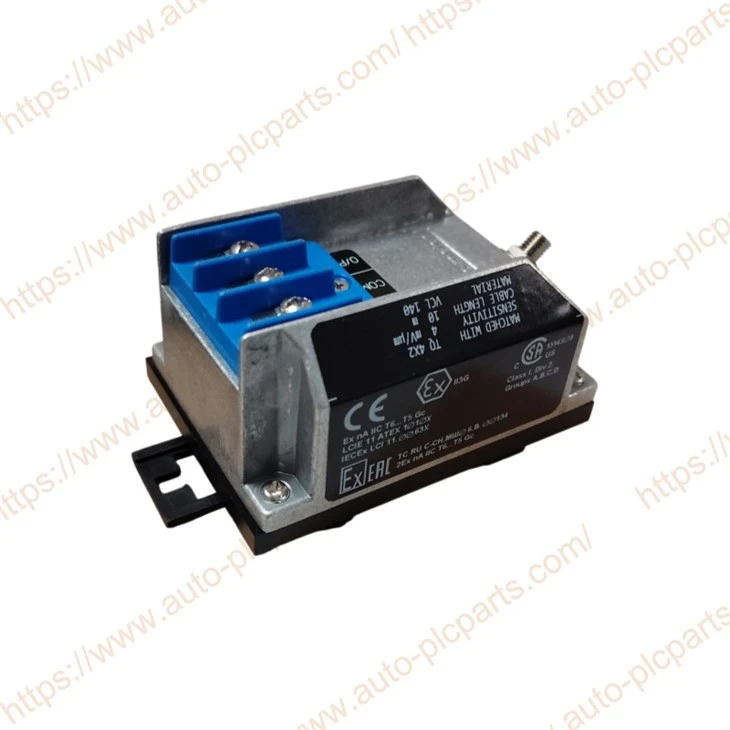

IQS450 204-450-000-001 A1-B23-H05-I0 Signal Conditioner is a signal conditioner developed for proximity measurement systems, where it operates with compatible TQ series proximity transducers and extension cables to form a complete measurement chain. Using eddy-current measurement technology, it converts probe signals into conditioned outputs for continuous monitoring of shaft vibration, shaft displacement, axial position, eccentricity, and differential expansion. The module is widely used in steam turbines, gas turbines, compressors, generators, pumps, and other critical rotating equipment, and can be integrated into VM600 machinery monitoring systems for condition monitoring and machine protection applications.
For maintenance engineers and industrial spare parts buyers, the IQS450 204-450-000-001 A1-B23-H05-I0 is commonly selected for scheduled maintenance, system upgrades, and replacement of existing signal conditioners. Before purchasing, customers typically focus on configuration code compatibility, matching TQ proximity transducers, system integration, and product availability. Each unit supplied by us is visually inspected before shipment, with product photos and testing support available upon request. We provide worldwide shipping, a 12-month warranty, and technical assistance for model verification, compatibility confirmation, and after-sales support, helping customers simplify procurement and installation.
RFQ: Contact us for current price, stock availability and delivery time
IQS450 / 204-450-000-001 / A1-B23-H05-I0
The complete configuration should be confirmed before purchasing because different IQS450 configuration codes can represent different measuring ranges, sensitivities, output types, and system lengths.
Exact Product Identification
The product offered on this page is identified as:
Part Number: 204-450-000-001
Configuration: A1-B23-H05-I0
The configuration can be interpreted as follows:
A1: Standard environment configuration.
B23: 4 mm measuring range with 4 mV/μm sensitivity and voltage output configuration.
H05: 5 m total system length option.

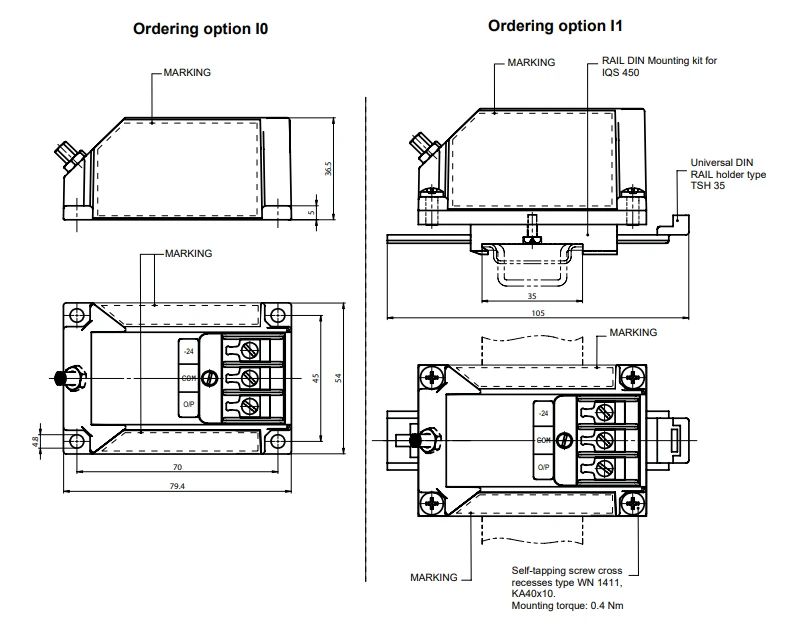

I0: Signal conditioner only, without the optional mounting adaptor.
These configuration details are important when replacing an existing IQS450 because the same IQS450 family can be supplied with different electrical and mechanical configurations.
IQS450 Model and Configuration Information
| Product Name | Signal Conditioner |
| Model | IQS450 |
| Part Number | 204-450-000-001 |
| Configuration Code | A1-B23-H05-I0 |
| Series | Proximity Measurement System |
| Product Type | Eddy-Current Signal Conditioner |
| Measurement Principle | Non-contact Eddy-Current Technology |
| Compatible Probe | TQ Series Proximity Transducers |
| Compatible Extension Cable | EA Series Extension Cables |
| Compatible Monitoring System | VM600 Machinery Monitoring System |
| Measured Parameters | Shaft Vibration, Shaft Displacement, Axial Position, Eccentricity, Differential Expansion, Gap Measurement |
| Application | Continuous condition monitoring and machinery protection for rotating equipment |
| Installation Method | Control cabinet installation |
| Electrical Connection | Terminal block connection |
| Housing Type | Industrial-grade enclosure |
| Mounting | DIN rail mounting |
| Operating Environment | Industrial indoor control cabinet |
| Quality Inspection | Visual inspection and functional verification before shipment |
| Condition | New / Surplus in Original Package (Subject to Stock Availability) |
| Country of Origin | Switzerland |
|
Dimension |
15*14*5cm |
|
Weight |
0.35kg |
| HS CODE | 8529905000 |
| Warranty | 12 Months |
| Packaging | Anti-static bag, protective bubble wrap, and reinforced export carton |
| Shipping Methods | DHL, FedEx, UPS, TNT, or customer-designated carrier |
| Lead Time | In Stock or Subject to Current Inventory |
Function of the IQS450 in an Industrial Automation System
The IQS450 performs signal-conditioning functions between the proximity transducer and the machinery monitoring system.
Its position within the system can be described as:
Proximity Measurement
The TQ 402 or TQ 412 measures the distance between the probe and the conductive shaft or target.
Signal Conditioning
The IQS450 provides the required transducer excitation and processes the measurement signal.
Monitoring
The conditioned signal can then be connected to suitable machinery monitoring or protection equipment.
Control / Plant System
Depending on the overall installation, measurement information can subsequently be used by a machinery protection system, monitoring platform, DCS, PLC or other plant-level system.
The IQS450 therefore functions as an interface component within the complete machinery monitoring architecture.
Compatible With
The IQS450 204-450-000-001 A1-B23-H05-I0 Signal Conditioner is designed to operate as part of a complete Vibro-Meter proximity measurement system. It is not intended for standalone use and should be installed with compatible proximity transducers, extension cables, and monitoring modules to ensure proper measurement accuracy and system performance. Before installation or replacement, verify that the product model and configuration code match the existing system.
Machine Shaft / Conductive Target → TQ 402 or TQ 412 → EA 402 Extension Cable → IQS450 → Monitoring or Protection System
TQ Series Proximity Transducers
The IQS450 is compatible with Vibro-Meter TQ series proximity transducers, which detect the distance between the probe tip and a conductive target using non-contact eddy-current technology. Together with the signal conditioner, the probe forms the primary sensing element for shaft vibration, shaft displacement, axial position, and eccentricity measurements.
EA Series Extension Cables
The signal conditioner is designed to work with EA series extension cables, which connect the TQ proximity transducer to the IQS450. The probe, extension cable, and signal conditioner are calibrated as a complete measurement chain, making it important to use the specified cable type and length for the selected configuration.
VM600 Machinery Monitoring System
The IQS450 is widely used in the Vibro-Meter VM600 Machinery Monitoring System, where conditioned sensor signals are transmitted to monitoring modules for continuous machinery condition monitoring, alarm processing, and machine protection. The VM600 platform is commonly applied in critical rotating equipment across power generation, oil and gas, petrochemical,l and other industrial sectors.
MPC4 Machinery Protection Card
The conditioned output from the IQS450 can be used with the MPC4 Machinery Protection Card, enabling continuous monitoring of vibration and displacement parameters. The monitoring module evaluates sensor signals, generates alarm and trip functions, and communicates measurement data to higher-level control systems.
CPUM System Controller
Within a VM600 rack, the CPUM (Central Processing Unit Module) manages system communication, configuration, and data processing. When used together with the IQS450 and monitoring modules, the CPUM provides centralized management of machinery monitoring data and system diagnostics.
IOCN Communication Module
The IOCN communication module provides communication and data exchange between the VM600 monitoring system and plant control systems such as DCS, PLC, or SCADA platforms. The IQS450 supplies conditioned measurement signals that can be processed and transmitted through the VM600 architecture.
Typical Rotating Machinery
The IQS450 is commonly installed in machinery requiring continuous condition monitoring, including:
Steam Turbines
Gas Turbines
Hydroelectric Generators
Centrifugal Compressors
Pumps
Electric Motors
Industrial Fans
Turbo Expanders
Blowers
Large Rotating Process Equipment
System Compatibility Recommendations
Before purchasing or replacing an IQS450 signal conditioner, it is recommended to verify:
Complete product model and ordering code
Compatible TQ series proximity transducer
Matching EA series extension cable
VM600 monitoring module configuration
Existing machinery protection system
Installation drawings and wiring configuration
Confirming the compatibility of the complete measurement chain helps reduce commissioning time, minimizes replacement risks, and ensures the signal conditioner operates correctly within the existing monitoring system.
Related and Alternative Models
IQS450 204-450-000-001 A1-B22-H05-I0
IQS450 204-450-000-001 A1-B23-H10-I0
IQS450 204-450-000-001 A1-B23-H05-I0
IQS450 204-450-000-002
TQ 402
TQ 412
EA 402
FAQ
Q: What information needs to be confirmed when replacing the IQS450?
A: Please confirm the following items:
Complete product model
Configuration code
TQ series probe model
EA series extension cable model and length
The VM600 module in use
Original product wiring method
These pieces of information are helpful in ensuring that the new product can directly replace the original equipment.
Q: What are the necessary precautions to take before installing the IQS450?
A: Pre-installation recommendations:
Verify the product model and configuration code;
Confirm the compatibility of the probe and extension cable;
Install according to the wiring diagram;
Cut off the power supply to the equipment;
Check whether the installation environment of the control cabinet meets the requirements.
Q: Can B23 replace B21?
A: Do not assume that it can.
B21 and B23 have different measurement characteristics. The existing system configuration should be verified before replacement.
Q: Does H05 mean the IQS450 includes a 5 m cable?
A: No.
H05 identifies the total system length option. The actual cable arrangement should be checked together with the TQ probe and EA extension cable.
Q: What information should I provide when requesting a quotation?
A: Please provide the complete part number, configuration, quantity, destination, and required delivery date.
The recommended RFQ reference is:
Vibro-Meter IQS450 204-450-000-001 A1-B23-H05-I0
Q: What is the warranty period?
A: The standard warranty offered for the product is 12 months, subject to the agreed sales terms.
