Product Introduction
As part of the Vibro-Meter product line, the RPS6U DC power supply is compatible with other components and modules of the VM600 series and can be installed in the frame to work with sensors, monitoring cards and other equipment to form a complete and effective machinery protection and monitoring solution.
Technical Specifications
|
Model |
RPS6U |
|
PN Number |
200-582-200-021 |
|
Description |
rack power supplies |
|
Origin |
Switzerland |
|
Dimension |
35*25*8cm |
|
Weight |
2.45kg |
Product Details
Rack power supply units
To order please specify the type, designation and ordering number

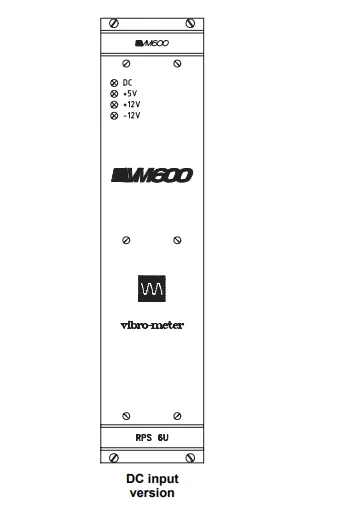

Type: RPS6U rack power supply unit.
Ordering number:
| Power supply | DC input versions | AC input version | |||
| Type | RPS6U 24 DC | RPS6U 48 DC | RPS6U 72 DC | RPS6U 110 DC | RPS6U AC |
| Ordering number (1) | 200-582-200-01h | 200-582-300-01h | 200-582-400-01h | 200-582-600-01h | 200-582-500-01h |
| Rated supply voltage | 24 VDC | 48 VDC | 72 VDC | 110 VDC | 120 / 230 VAC |
| Input voltage range (Ui nom) | 18 to 32 VDC | 38.4 to 57.6 VDC | 57.6 to 100 VDC | 80 to 145 VDC | 90 to 264 VAC (auto-ranging) |
| Mains frequency variations | Not applicable | 48 to 65 Hz | |||
| Efficiency | >70% | >75% | |||
