Product Introduction
Technical Specifications
|
Manufacture |
Allen Bradley |
|
Model |
1746-OA16 |
| Number of channels | 16 channels |
| Output type | Digital AC |
| Output voltage | 120-240VAC (adjustable), voltage range 85-265VAC |
| Output frequency | 47-63Hz |
| Operating temperature | 0-60°C |
|
Description |
Output Module |
|
Origin |
USA |
|
Dimension |
25*20*6cm |
|
Weight |
0.3kg |

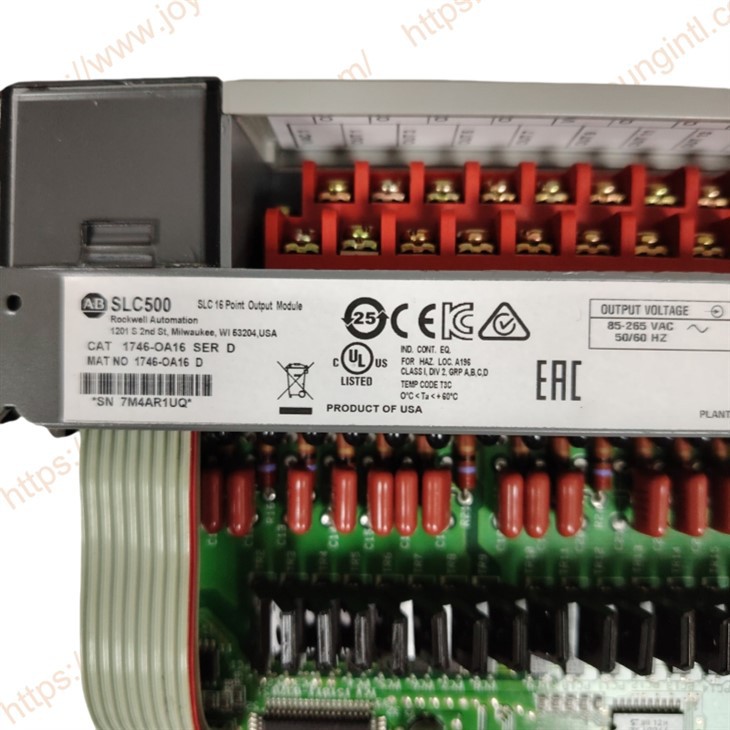

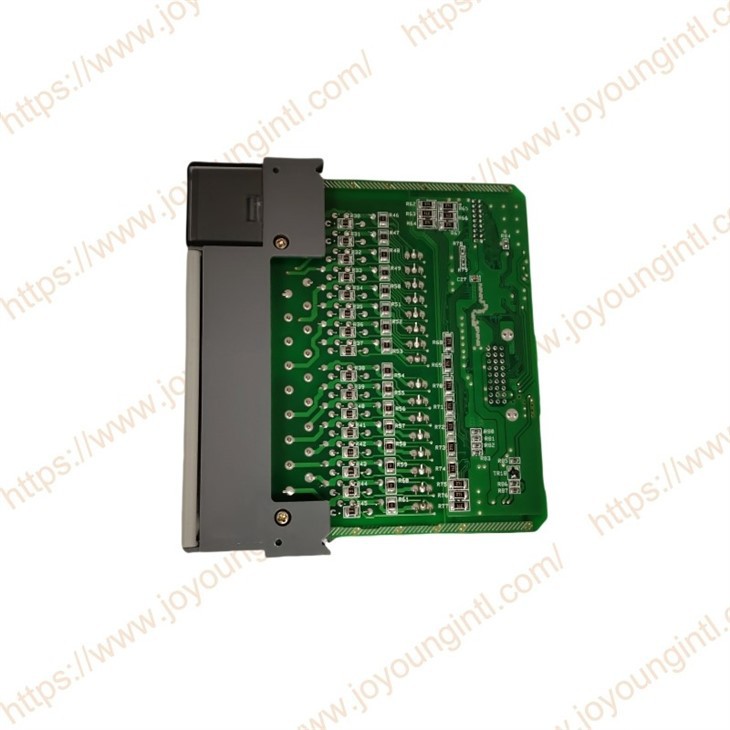

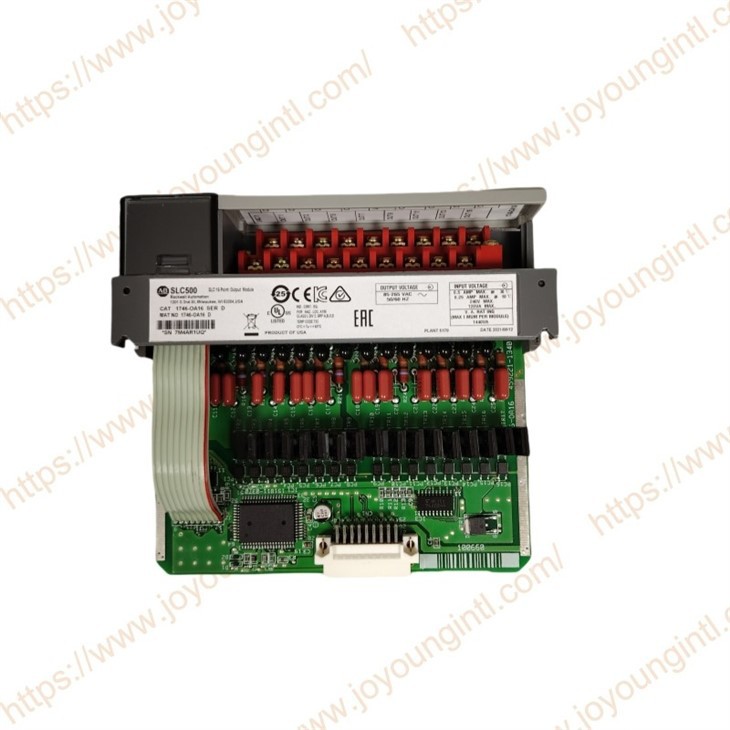

Product Details
As a module of the old SLC 500 series, 1746-OA16 was officially discontinued in December 2022. Rockwell Automation suggests that new design plans should consider alternative products, such as using more modern CompactLogix or ControlLogix platforms' AC output modules.
1746-OA16 can be installed in the local or remote I/O rack of SLC 500, and can be compatible with various Allen-Bradley processors, such as the 1747 series PLC, or can be used through an adapter for modern CompactLogix and ControlLogix systems.
Installation and Maintenance Recommendations：
√ Safe installation
Before installation or disassembly, the PLC power supply should be disconnected to avoid the risks of electric shock or short circuit.
Insert the module firmly into the designated slot of the 1746 chassis, ensuring that the backplane pins make good contact.
The output terminal is equipped with sturdy screw terminals, and an appropriate amount of play is reserved to prevent loosening due to vibration.

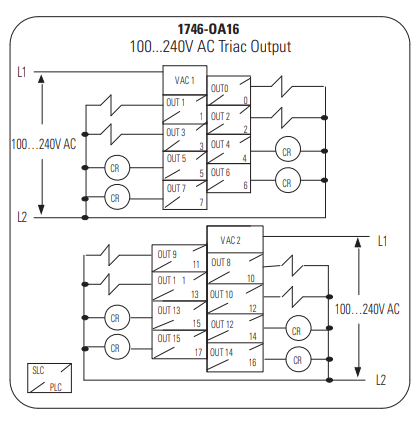

√ Circuit Wiring Specifications
Different output groups should follow the isolation principle and clearly distinguish the wire numbers to avoid confusion.
Ensure that the operating voltage and rated current of the communication load are within the allowable range of the module.
For sensitive loads (such as relay coils), it is recommended to add a surge suppressor on the load side.
√ Product Maintenance
Regularly check the status indicator light of the LED output.
Clean the dust inside the cabinet to prevent heat accumulation.
If the output points fail to respond multiple times, it is necessary to consider replacing the module or checking the backplane connection.
Allen-Bradley 1746-OA16 product advantages
If you want to know more about the products, please feel free to contact info@htechplc.com at any time.
why choose 1746-OA16 Output Module
Multi-channel design: 16 output channels, can control multiple AC loads at the same time, and can meet the control needs of various industrial automation scenarios.
Adjustable voltage: The output voltage range is wide and can be adjusted between 120-240VAC to meet the voltage requirements of different loads.
Modular design: Easy to install and maintain, can be easily inserted into the chassis of the SLC 500 series PLC, supports hot swapping, and the module can also be replaced while the system is running.
Strong compatibility: Compatible with other modules of the SLC 500 series, and can work with different input and output modules, processor modules, etc., of the PLC to build a complete automation control system.
High reliability: Using high-quality materials and manufacturing processes, it has good anti-interference ability and stability, and is suitable for harsh industrial environments.
Self-contained diagnostic function: Usually equipped with LED indicators, which can be used to indicate the status of each output channel, which it convenient for users to diagnose and troubleshoot faults.
1746-OA16 is widely used in factory automation production lines, mechanical processing equipment, material handling systems, and other fields to control the operation of motors, relays, solenoid valves, and other equipment. In the process control fields of chemical, petroleum, water treatment, and other fields, it is used to control pumps, valves, flow meters, and other equipment to achieve control of the process flow.
