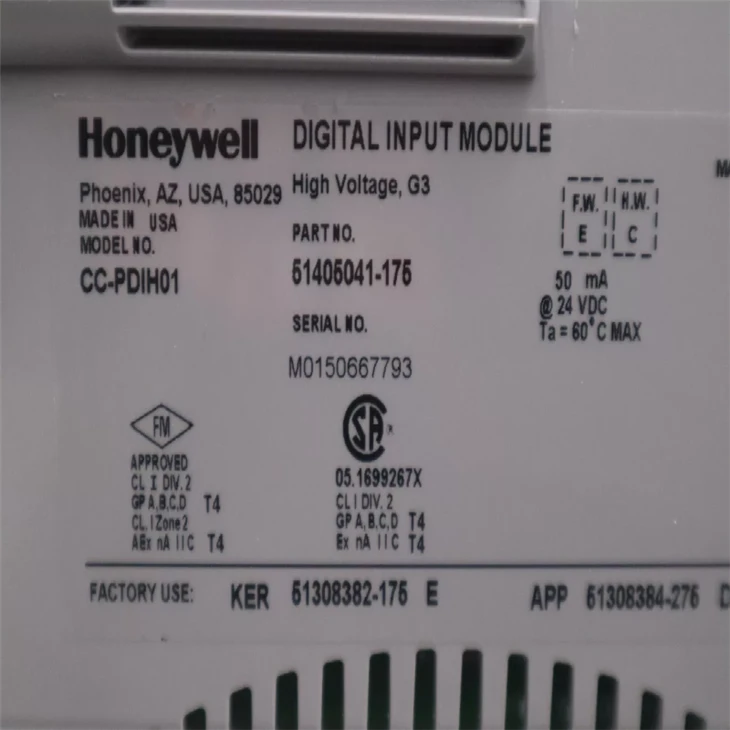

Honeywell CC-PDIH01 Digital Input Module 51405041-175

1️⃣Multi-channel digital input structure
51405041-175 CC-PDIH01 Digital Input Module provides multiple digital input interfaces (commonly designed with 32 channels), enabling the connection of multiple on-site switch signals within a single module, which helps optimize the cabinet layout.
2️⃣ Input with Isolation Design from the System Side
An electrical isolation structure is adopted between the input end of the site and the system backplane, which helps to reduce the impact of common ground interference, voltage fluctuations, and other factors on the system operation.
3️⃣ Compatible with common industrial voltage levels
Supports typical 24VDC industrial discrete signal input, suitable for most standard field instruments and switchgear.
4️⃣ With status indication function
51405041-175 CC-PDIH01 Digital Input Module is equipped with channel status indicator lights, which facilitate quick on-site determination of input status and basic diagnosis.
5️⃣ Applicable to industrial environments
The CC-PDIH01 Digital Input Module structure design takes into account industrial site factors such as temperature, humidity, and electromagnetic interference, and is suitable for operation in conventional industrial control environments.





✔ It helps to enhance the stability of the system's signal acquisition.
By adopting isolation structures and standardized input circuit designs, the module can maintain a relatively stable signal transmission state in complex electrical environments, thereby reducing the risk of erroneous triggering caused by interference.
✔ Supports centralized signal management
The multi-channel integrated design helps to centrally manage discrete signal input points within the same rack, simplifies the system structure planning, and facilitates later maintenance.
✔ Reduce the complexity of wiring
The CC-PDIH01 Digital Input Module access method enables the on-site signals to be uniformly connected according to the system standards, which helps to reduce wiring chaos and improve the maintainability and readability.
✔ Facilitates system expansion
When expanding the control system, the input points can be increased by adding modules of the same series while maintaining the consistency of the system structure.
✔ Helps in maintenance and troubleshooting
The channel status indication and modular structure design make it easier for on-site technicians to perform status confirmation or fault troubleshooting, as the operation is more intuitive.
