Product Introduction

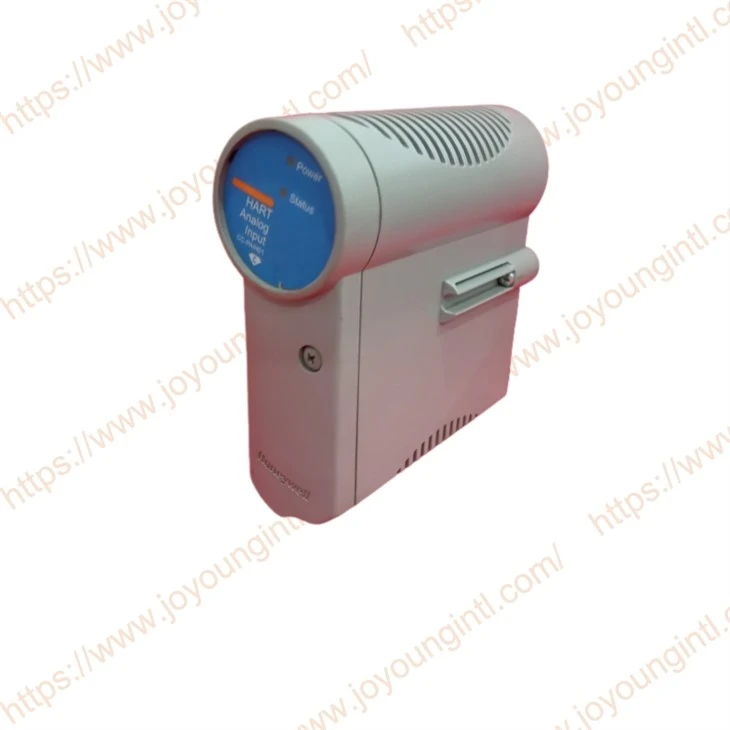

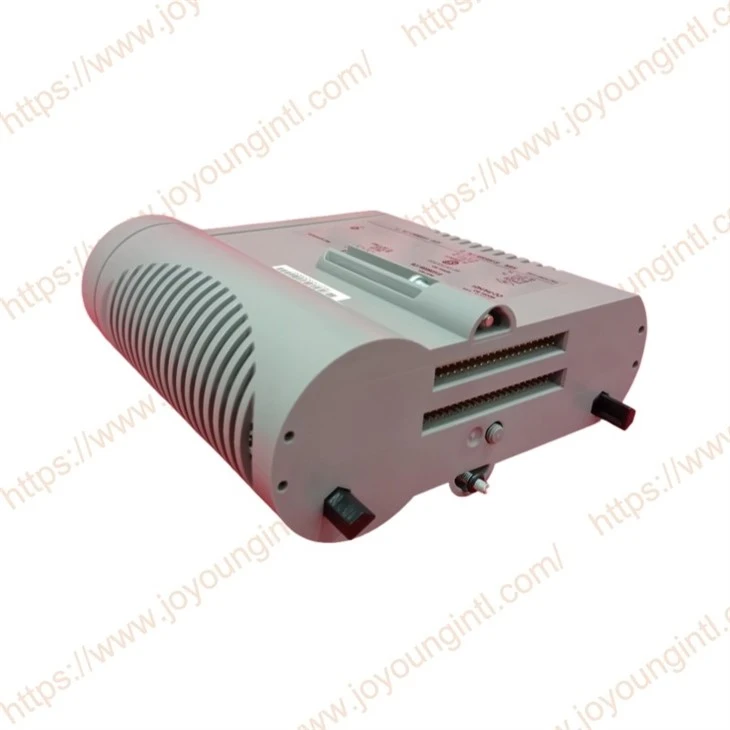

CC-PAIH01 and CC-PAIH02 both belong to the High-Level Analog Input with HART modules, which are used to convert the analog signals from field instruments into digital data that can be used by the control system, and support the HART communication protocol, achieving deep integration with on-site intelligent devices. Honeywell, as a global leading supplier of automation and control systems, has its Experion PKS / C300 series I/O modules widely used in industrial process control systems.
Technical Specifications
|
Manufacture |
HONEYWELL |
|
Model |
CC-PAIH01 & CC-PAIH02 |
|
Part Number |
51405038-175 & 51405038-375 |
|
Description |
Analog Input with HART
|
|
Origin |
USA |
|
Dimension |
20*20*10cm |
|
Weight |
0.65kg |
Product Details
Both CC-PAIH01 and CC-PAIH02 have the following basic functions:
1.16 Channel Analog Input: It can be connected to multiple field instruments, such as pressure transmitters, flow meters, current/voltage sensors, etc., enabling the collection of multiple process variables.
2. HART communication protocol support: Supports the HART (Highway Addressable Remote Transducer) protocol, enabling two-way digital communication between on-site intelligent devices and control systems. 3. Redundancy Support: In critical system applications, modules can be paired with redundant modules.
1.16 Channel Analog Input: It can be connected to multiple field instruments, such as pressure transmitters, flow meters, current/voltage sensors, etc., enabling the collection of multiple process variables.
2. HART communication protocol support: Supports the HART (Highway Addressable Remote Transducer) protocol, enabling two-way digital communication between on-site intelligent devices and control systems. 3. Redundancy Support: In critical system applications, modules can be paired with redundant modules.
CC-PAIH02 is an enhanced version of CC-PAIH01. Besides inheriting its main functions, it has also improved in terms of precision, signal processing capability, and communication capability:
Supports higher precision ADC
Higher isolation voltage and stronger noise immunity
Equipped with HART 7 protocol support and enhanced on-site diagnostic functions
Fast sampling and higher measurement stability
Supports higher precision ADC
Higher isolation voltage and stronger noise immunity
Equipped with HART 7 protocol support and enhanced on-site diagnostic functions
Fast sampling and higher measurement stability
Detail Specifications – Analog Input with HART：
|
Parameter
|
Specification
|
|
|
Input / Output Model
|
CC-PAIH01 & CC-PAIH02- High-Level Analog Input with HART
|
|
|
IOTA Model
|
Non-Redundant
|
Redundan
|
|
CC-TAIX01
|
CC-TAIX11
|
|
|
CC-GAIX21
|
CC-GAIX11
|
|
|
CC-TAID01
|
CC-TAID11
|
|
|
Input Type
|
Voltage, current (2-wire or self-powered transmitters)
|
|
|
Input Channels 1
|
16 Channels (12 Single Ended / 4 Differential )
|
|
|
Common Mode Rejection Ratio, dc to 60 Hz (500
source imbalance)
|
70 dB
|
|
|
Common Mode Voltage, dc to 60 Hz
|
-6 to +5 V peak
|
|
|
A/D Converter Resolution
|
16 bits
|
|
|
Input Range 1
|
0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω)
|
|
|
Normal Mode Rejection Ratio, at 60 Hz
|
19 dB
|
|
|
Normal Mode Filter Response
|
Single-pole RC, -3 dB @ 6.5 Hz
|
|
|
Maximum Normal Mode Input (differential inputs, no damage)
|
± 30 Volts
|
|
|
Crosstalk, dc to 60 Hz (channel-to-channel)
|
-60 dB
|
|
|
Input Impedance (voltage inputs)
|
> 10 M Ω powered
|
|
|
Input Scan Rate
|
50 ms
|
|
|
Hardware Accuracy (@ CMV = 0 V)
|
± 0.075% of full-scale (23.5°± 2°C)
± 0.15% of full-scale (0 to 60°C)
|
|
|
Transmitter Field Power Conditioning
|
Individually Protected Current Limiting Circuits for Class 1, Div 2 non-incendive interfacing. No fusing required
|
|
|
Note 1: CC-PAIH01 supports voltage inputs for channels 13-1.6. CC-PAIH02 supports voltage inputs for channels 1-16 when used with CC-TAIDx1 IOTA. Each channel's 250-Ohm load resistor is connected to the input terminal through a wire jumper on the IOTA. This jumper should be cut by the user on channels to be used with voltage transmitters. For channels 13-,1,6, the low-side input connection is normally connected to system common by a wire jumper on the IOTA. This jumper may be cut by the user to enable different operations, subject to operating within the CMV specification.
|
||
