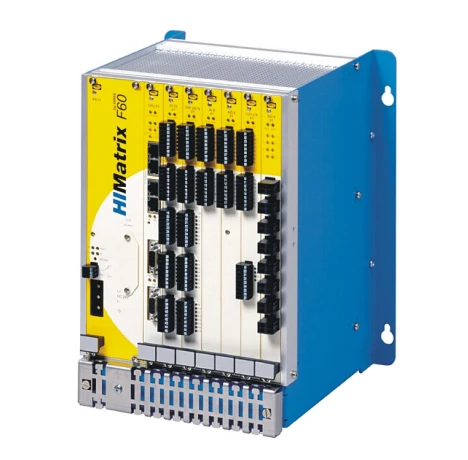

HIMA HIMatrix F60 MI 24 01

The MI 24 01 is a module for the modular F60 HIMatrix system. The MI 24 01 module has 24 digital input channels. The analog inputs AI are inputs for measuring currents of 0/4...20 mA. The digital inputs DI can be used with proximity switches in accordance with EN 60947-5-6, safety proximity switches or contacts (wired with resistors).

HIMatrix F60 MI2401 Installation and Mounting：

The module is mounted in the subrack of the modular HIMatrix F60 system. When laying cables (long cables, in particular), take appropriate measures to avoid interference, e.g., by separating the signal lines from the power lines. When dimensioning the cables, ensure that their electrical properties have no negative impact on the measuring circuit.

Mounting and Removing the Modules：

To mount and remove the modules, the connection cable clamp terminals must be unplugged. Additionally, personnel must be protected from electrostatic discharge

To mount a module into the subrack

1. Insert the module as far as it can go – without jamming it – into the two guiding rails which are located on the housing's upper and lower part.

2. Apply pressure to the upper and lower extremity of the front plate until the module plugs snap into the backplane socket.

3. Secure the module with the screws located on upper and lower extremity of the front plate.

The module is mounted.

To remove a module from the subrack

1. Remove the plugs from the module front plate.

2. Release the locking screws located on the upper and lower extremity of the front plate.

3. Loosen the module using the handle located on the lower part of the front plate and remove it from the guiding rails.

The module is removed.
