Product Introduction
Technical Specifications
|
Manufacture |
BENTLY NEVADA
|
|
Model |
TP100, TP500 |
| Part Number | TP100, TP500 |
|
Description |
General Purpose Accelerometer |
|
Origin |
USA |
|
Dimension |
10*10*5cm |
|
Weight |
0.3kg |
Product Details
The sensor TP100, TP500 has a standardized output voltage proportional to the level of acceleration, which can interface to a variety of condition monitoring solutions. The range of vibration frequencies detected by these sensors spans from 0.2 - 14,000 Hz.
Features
*Rugged design
*Corrosion resistant
*Hermetic seal
*Case isolated
Benefits
*Clear signals at low vibration levels
*Extended low-end frequency response
*Improved signal-to-noise ratio vs. other general-purpose accelerometers
*A single sensor can detect both low- and high-speed vibrations
*Optimized for monitoring slow-turning machinery such as cooling tower fans and slow-speed gearboxes

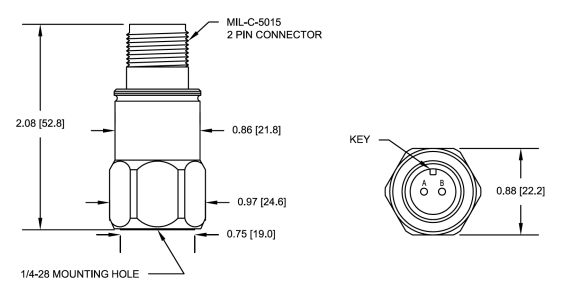

| TP100 | 1/4-28 to 1/4-28 and 1/4-28 to M8 mounting studs and box supplied. |
| TP500 | No mounting stud supplied. Includes calibration data. |
| Interconnection Cables | |
| 9571 | Cable with 2-pin straight connector |
| 84661 | Cable with 2-pin straight connector with armor |
| 89477 | Cable with 2-pin 90-degree connector |
Custom Cable Part Numbers:
| Part Number | Description |
| 9571-NN |
Two-conductor twisted, shielded 22 AWG cable with a two-socket moisture-resistant female connector at one end, terminal lugs at the other end. Used with monitors. Not for use with 21128 Velocity Transducer Housing. Min. length: 2.0 ft (0.6 m) Max. length: 99 ft (30 m) |
| 84661-NN |
Two-conductor twisted, shielded 22 AWG armored cable with a two-socket moisture-resistant female connector at one end, terminal lugs at the other end. Used with monitors. Not for use with 21128 Velocity Transducer Housing. Min. length: 3.0 ft (0.9 m) Max. length: 96 ft (29 m) |

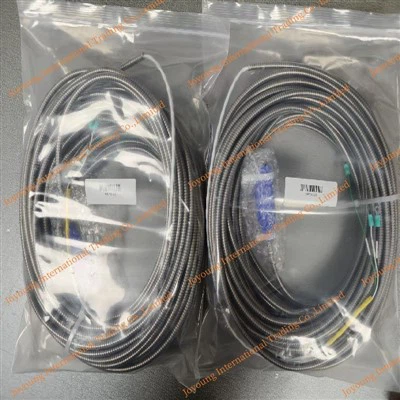

| 106765-NN |
Two-conductor 22 AWG twisted, shielded cable with a two-socket plug and fluorosilicone elastomer boot at one end, terminal lugs at the other. Used with monitors. Not for use with 21128 Velocity Transducer Housing. Min. length: 2.0 ft (0.6 m) Max. length: 99 ft (30 m) Order in Increments of 3 meters. |
To avail our best deals for TP100 and TP500, contact us and we will get back to you within 24 hours.
