Galvanic separation

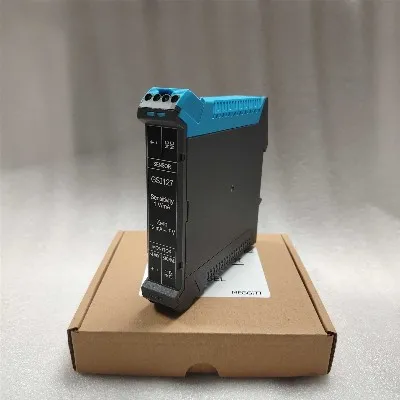

GSI127 new version with improved performance, PNR change from 017 to 021.
GSI127 244-127-000-021
Shipment of the remaining stock (mostly A02, ex version) and automatic confirmation to the new version once all stock is consumed. Already delivering new versions depending on the ordered configuration.
Improvements:
Suitable for use in safety-related applications: SIL 2 "by design" in accordance with the IEC 61508 functional safety standard.
Increased dynamic operating and output signal ranges to be able to support the output levels from our SIL 2 sensors /measurement chains with diagnostics, without saturating.
A new sensitivity variant, defined by the ordering option code B11, that is compatible with our new IQS910 signal conditioner("transmitter") for proximity measurement chains, and with industry-standard 4 to 20 mA loop-powered sensors/transmitters such as the CE687 and PV685 vibration sensors.
Better overall noise performance: lower noise on output, and increased power supply noise rejection (PSRR) and frame-voltage rejection
(CMRR).
Extended operating temperature range of −20 to 70°C (−4 to 158°F).
(For reference, it is 0 to 70°C (32 to 158°F) for the current version.)
Part Number:
GSI127 244-127-000-017 A2-B01
GSI127 244-127-000-011 A2-B2
GSI127 244-127-000-017 A2-B03
GSI127 244-127-000-017-A2-B5
GSI127-021 244-127-000-021 A2-B01
GSI127-021 244-127-000-021 A2-B02
GSI127-021 244-127-000-021 A2-B05
