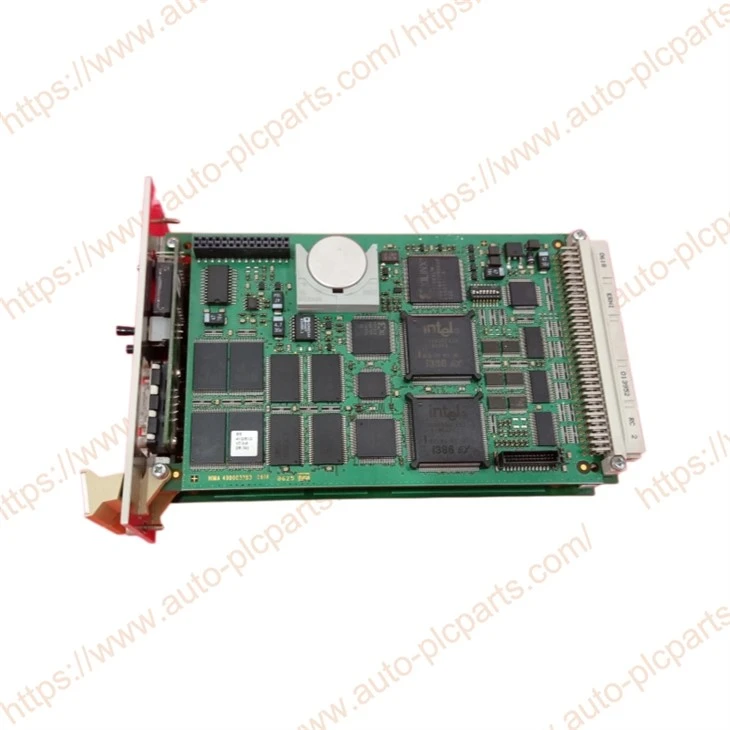

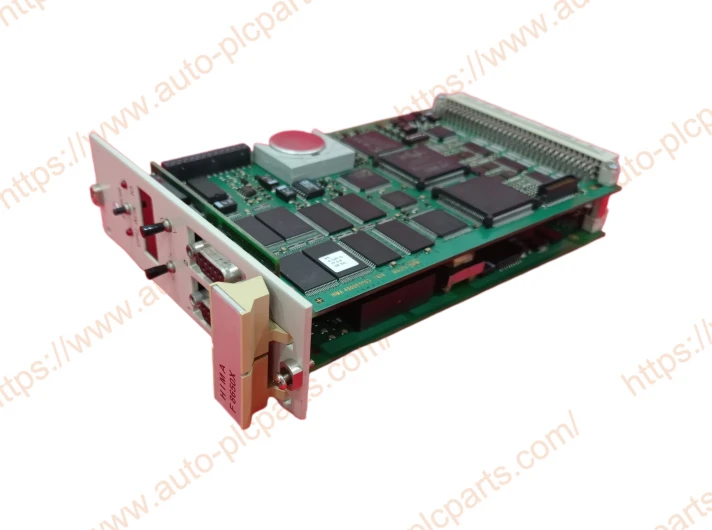

HIMA F8650X is a Central CPU Module (Central Processing Unit) designed for HIMA safety-related control systems. As the core processing unit of HIMA PES (Programmable Electronic Safety System), the F8650X performs application program execution, safety logic processing, system diagnostics, and communication management within the controller architecture.
How can I request a quotation?
Please provide:
Model number: F8650X
Quantity
Shipping destination
Required delivery schedule
We will provide RFQ feedback with price and availability.
Product Availability
| Item | Information |
|---|---|
| Product | HIMA F8650X Central CPU Module |
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Part Number | F8650X / F 8650 X |
| Product Type | Central Processor Module |
| Series | HIQuad / H51q Safety System |
| Application | Safety Instrumented System (SIS) |
| Processor Architecture | Dual synchronized processor |
| Processor Type | Intel 386EX 32-bit |
| Clock Frequency | 25 MHz |
| Diagnostic Interface | 4-digit matrix display |
| Communication Interface | RS485 serial interfaces |
| Power Supply | 5 VDC |
| Installation Type | HIMA rack-based safety controller |
| Condition | New Original / Refurbished Available (Confirm Before Order) |
| Stock Status | Available for RFQ |
| Lead Time | Subject to inventory confirmation |
| Warranty | 12 Months |
| Shipping | DHL / FedEx / UPS / TNT |
| Origin | Germany |
| Dimension | 21*15*7m |
| Weight | 0.4kg |
| HS code | 8473301000 |
Product Series & Version Information
HIMA F8650X Product Family
| Model | Description | Status |
|---|---|---|
| F8650 | Original HIMA central processor module | Legacy |
| F8650A | Enhanced central module version | Legacy |
| F8650E | Extended version | Legacy |
| F8650X | X-series central CPU module | Active replacement / spare supply |
| F8651X | X-series CPU-related module | Related model |
| F8652X | X-series central processing module | Related model |
| F8653X | X-series controller module | Related model |
HIMA F8650X CPU Module Function
What Does F8650X Central Module Do?
The HIMA F8650X CPU Module works as the main processing unit inside the safety controller system.
Its main functions include:
1. Safety Logic Processing
The module executes safety application programs created through HIMA engineering tools and manages:
Emergency shutdown logic
Burner management sequences
Interlock control
Safety monitoring functions
2. System Control Management
The CPU module coordinates:
I/O processing modules
Communication modules
Safety diagnostics
Application execution cycle
3. Fault Monitoring & Diagnostics
The integrated diagnostic functions support:
Hardware status monitoring
Processor synchronization checking
System fault detection
Maintenance troubleshooting
4. Communication Management
The F8650X can operate with compatible communication modules for connection with:
Engineering workstation
HIMA communication modules
Higher-level control systems
HIQuad X systems support communication through modules such as F-COM 01 and safety protocols including SafeEthernet.
F8650X Hardware Installation
The F8650X module can be installed via standard 35mm DIN rails or rack slots:
1. Confirm that the rack contains the designated CPU slots (usually labeled with CPU/central module tags).
2. Gently align the module with the slot, and after confirming that the rear connector is correctly aligned, insert the module into the backplate until the front panel latch catches (hear the "click" sound).
3. The I/O signals of F8650X are usually transmitted through the backplane to other I/O expansion modules. The input (sensor) and output (actuator) signals should be connected with shielded twisted-pair cables and be shielded and grounded at the controller end.
4. The logic program and configuration of F8650X are usually completed using the engineering software provided by HIMA, such as SILworX or Safety Matrix.
5. Download the settings and logic program to the CPU, and complete the safety verification as prompted.
Related & Replacement Models
| Model | Relationship | Application |
|---|---|---|
| F8650 | Previous generation CPU | H51q system spare |
| F8650A | Related CPU version | Legacy replacement |
| F8650E | Extended CPU version | Existing installations |
| F8650X | Current X-series CPU | Main replacement target |
| F8627X | Communication module | Used with CPU systems |
| F8628X | Related communication/control module | System expansion |
FAQ
Q: Is F8650X a PLC CPU?
A: F8650X is a safety controller CPU module rather than a standard PLC processor. It is designed for safety-related automation applications.
Q: Which systems use HIMA F8650X?
A: It is mainly used in HIMA H51q-MS, H51q-HS, H51q-HRS systems and related safety control configurations.
Q: How to perform self-diagnosis and fault handling for F8650X
A: The F8650X is equipped with a comprehensive self-checking mechanism that continuously monitors the status of core components such as the CPU, memory, and communication:
Watchdog mechanism: Executes predefined safety actions when the program goes out of control or the system malfunctions.
Hardware and software self-check: promptly detects faults and triggers alarms or performs switching.
Online log and status display: The system status and diagnostic information are displayed through LEDs and a four-digit matrix display screen.
Remote Diagnosis: It is possible to remotely access the device logs and status information through a secure communication protocol.
Q: What programming platforms does the F8650X use?
A: The HIMA specialized engineering software SILworX serves as the primary development and configuration platform for F8650X:
Support for multiple languages for IEC 61131-3: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Sequential Function Chart (SFC), etc.
Provide a security logic template library, verification tools, and the function of automatically generating security documentation.
Support engineering processes such as simulation, version management, security verification report generation, etc.
Q: What is the difference between F8650 and F8650X?
A: F8650X belongs to the later X-series product family with updated system compatibility and architecture support.
Q: What is the delivery time?
A: Delivery depends on current inventory status. Contact us with quantity and destination for confirmation.
