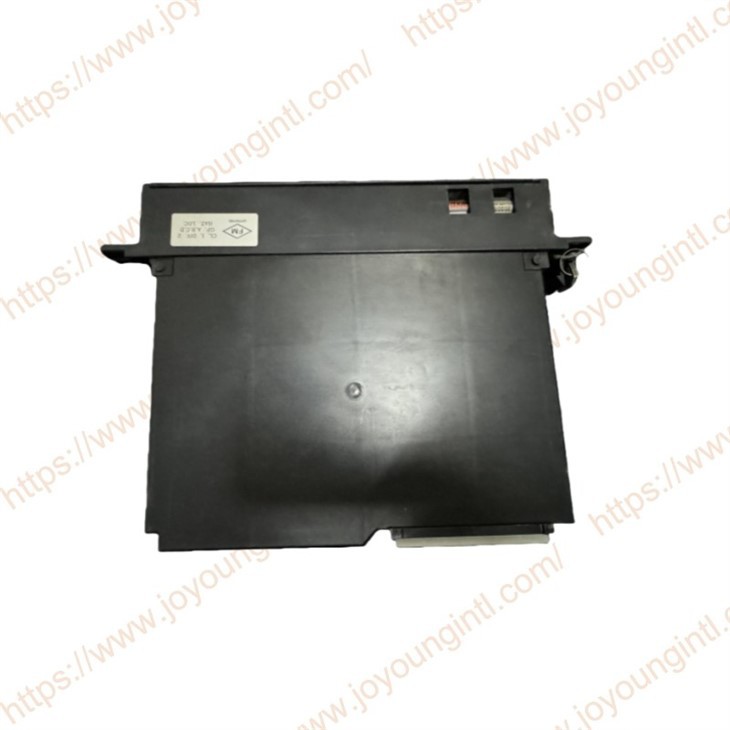

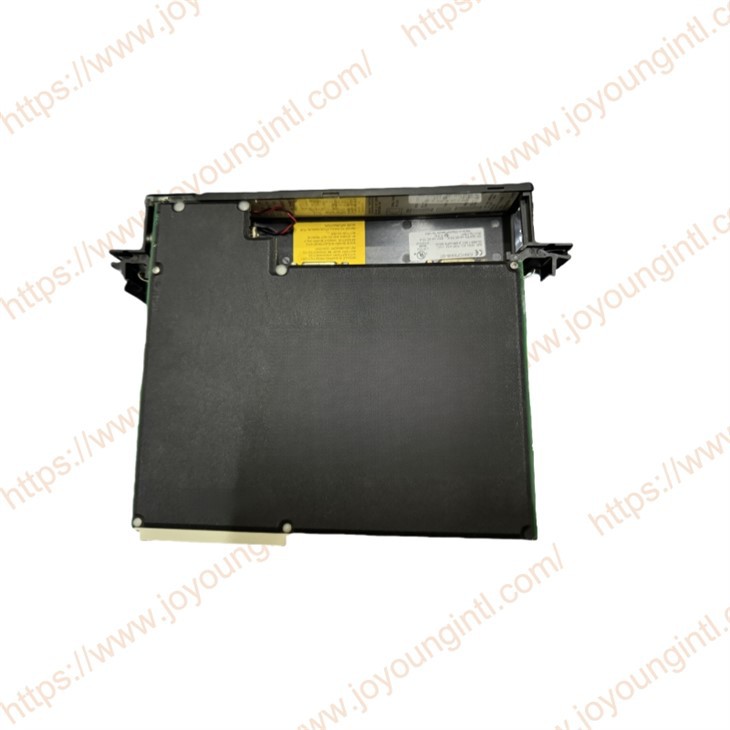

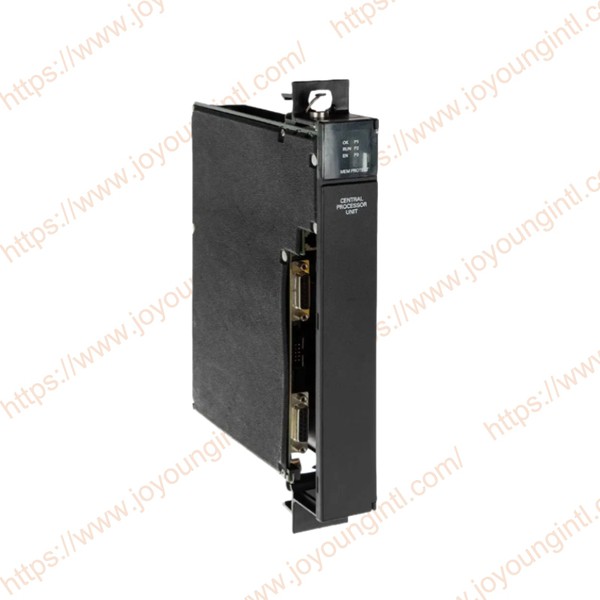

GE IC697CPX935 Central Processing Unit

 The IC697CPX935 features three serial ports: one RS-232 port and two RS-485 ports. Only ports 1 and 2 support SNP slave and non-disruptive SNP slave modes, enabling stable data exchange with other industrial equipment. It also conforms to the VME C.1 standard format, allowing communication with various modules via the rack backplane.

Supported option modules include LAN Interface modules, Programmable Coprocessor, Alphanumeric Display Coprocessor, Bus Controller for IC660/661 I/O products, Communications modules, I/O Link Interface, and all of the IC697 family of discrete and analog I/O modules.

1. User RAM Memory

The IC697CPX935 has a built-in memory board with 1 Mbyte of battery-backed Fast CMOS RAM for user data (program, configuration, and register data) storage.

2. User Flash Memory

The IC697CPX935 has 256K of built-in, non-volatile flash memory for user data (program, configuration, and register data) storage. Use of this flash memory is optional.

3 . Firmware Storage in Flash Memory

IC697CPX935 uses non-volatile flash memory for storing the operating system firmware. This allows firmware to be updated without disassembling the module or replacing EPROMs. The operating system firmware is updated by connecting a PC compatible computer to the module's serial port and running the software included with the firmware upgrade kit.

Connecting your programmer via an Ethernet TCP/IP network requires installation of an Ethernet Interface module in the PLC. This can be either the Ethernet Controller, IC697CMM741, or Ethernet Interface (Type 2), IC697CMM742. Before connecting your programmer and PLC to the Ethernet TCP/IP network, you must set the IP address in the Ethernet Interface. After setting the IP address, connect the PLC and the programmer running Windows software to the Ethernet Interface.

The IC697 CPU and I/O system is configured with MS-DOS or orWindows-basedd programming software, although the MS-DOS software does not support all features, such as Bulk Memory Area (BMA), which requires the Windows software version 2.2 or later. See the IPI shipped with this module for programming software feature support details. There are no DIP switches or jumpers used to configure the system. The CPU verifies the actual module and rack configuration at power-up and periodically during operation. The actual configuration must be the same as the programmed configuration. Deviations are reported to the CPU alarm processor function for configured fault response. Refer to the applicable Programming Software User's Manual for a description of configuration functions.
