GE IS220PPRFH1B Master Gateway I/O Module

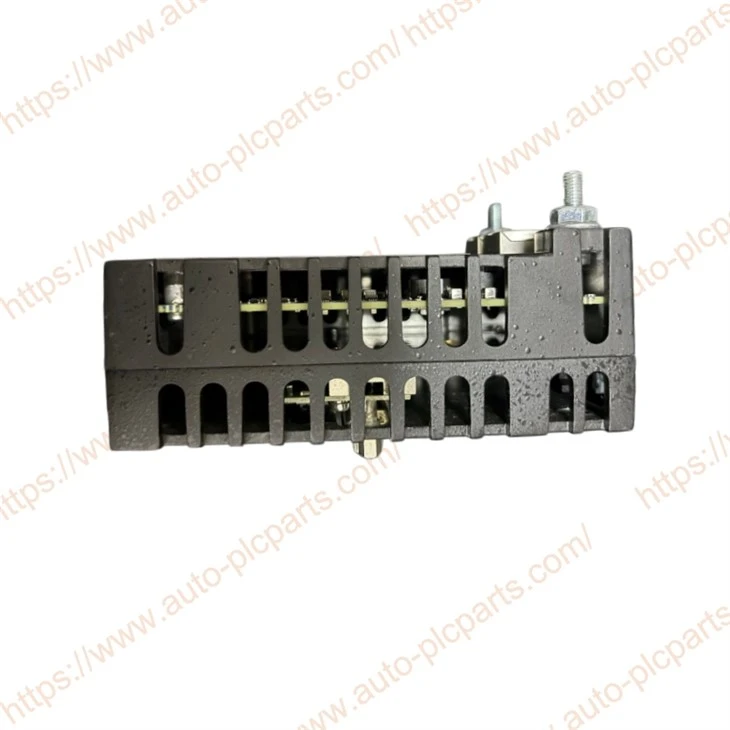

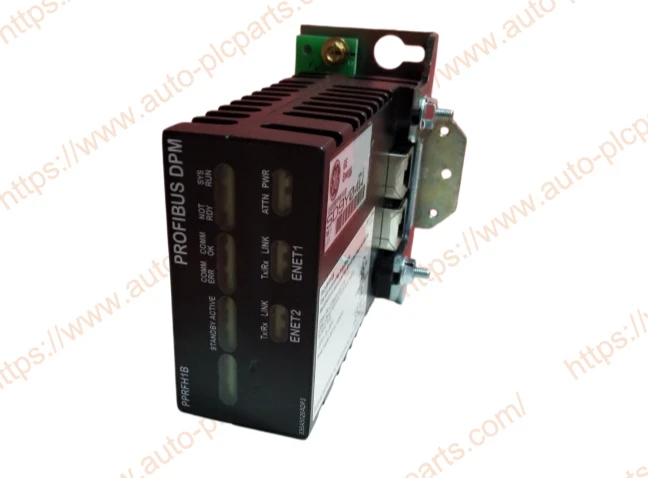

GE IS220PPRFH1B Master Gateway I/O Module is a PROFIBUS DP master communication module in the GE Mark VIe control system, used to facilitate data exchange between the controller and PROFIBUS network devices. This module supports the DPV0 Class 1 master station protocol, can manage up to 125 PROFIBUS slave devices, and supports communication rates ranging from 9.6 Kbaud to 12 Mbaud. It is suitable for fieldbus integration applications in gas turbine control systems, power plant automation systems, and industrial process control projects.

For users who need to purchase IS220PPRFH1B, compatibility, inventory status, test results, and delivery cycle are usually the key points of concern. We can provide pre-delivery power-on testing, appearance inspection, and label verification services, and according to requirements, we can also provide product photos and packing materials. We have a regular stock of GE Mark VIe series, which can be used to supply related modules such as IS220PAICH1A, IS220PDIAH1B, IS220PRTDH1B, and IS220UCSAH1A, facilitating users' system maintenance, downtime maintenance, and spare parts reserves.

One of the key communication specifications of the GE IS220PPRFH1B Master Gateway I/O Module is its ability to support up to 125 PROFIBUS slave devices on a single network segment. This allows the gateway to communicate with remote I/O stations, variable frequency drives, motor control centers, transmitters, analyzers, and other PROFIBUS-compatible field devices through a unified communication architecture.

For engineering teams and maintenance departments, this means additional field devices can be integrated into the existing Mark VIe control system without introducing extra communication gateways. During plant expansions, equipment upgrades,s or system modernization projects, the available network capacity helps reduce hardware additions and simplifies overall system architecture. It also allows spare parts planning to be standardized around a single PROFIBUS Master Gateway module rather than deploying multiple communication interfaces across different process areas.

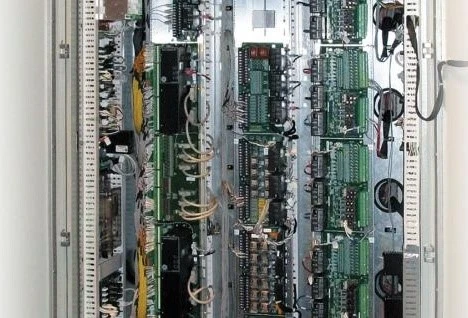

The IS220PPRFH1B is usually used in conjunction with the IS200SPIDG1A Terminal Board.

During the installation process, it is recommended to check:
Is the input voltage of the power supply within the range of 27.4–28.6VDC?
Configuration of PROFIBUS network terminal resistors;
Status of I/O Ethernet connection;
Consistency of configuration files between the controller and the gateway;
Allocation of slave station addresses;
Setting of PROFIBUS baud rate.

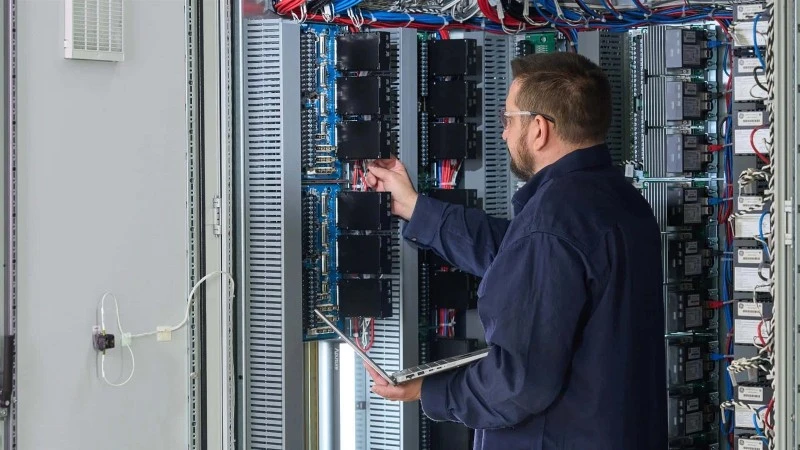

After the installation is completed, you can check the operation status of the gateway and the communication status of the slave stations through the system diagnosis interface.



Factory Testing Process



Visual inspection
Model label verification
Power-on test
PROFIBUS communication test
Ethernet port test
LED diagnostic test
Long-term operation test
Final inspection before packaging







When purchasing personnel are looking for IS220PPRFH1B, what issues do they usually pay attention to?

Is it compatible with the existing Mark VIe system?

Does it support the PROFIBUS DP network?

Is it the Revision B version?

Can it replace the damaged module?

Does it have on-site inventory?

Does it provide test reports?

Does it support international transportation?

Does it offer warranty service?





Typical Applications



Gas Turbine Control Systems

For use in the fieldbus communication of the GE Mark VIe gas turbine control system, to enable data exchange between the controller and PROFIBUS network devices.



Steam Turbine Automation

Suitable for steam turbine speed control systems, auxiliary machine control systems, and unit monitoring systems.



Power Generation Plants

Used for on-site equipment communication in thermal power plants, gas-fired power plants, combined cycle power plants, and energy control systems.



Industrial Process Control

Suitable for PROFIBUS network integration in automation projects of the chemical industry, water treatment, metallurgy, papermaking, and manufacturing industries.



Frequently Asked Questions







Q1: What is the operating voltage?

+

-

A: The rated input voltage is 28VDC, and the operating range is 27.4–28.6VDC.

Q2: What communication protocol does it support?

+

-

A: Supports the PROFIBUS DPV0 Class 1 master station protocol.

Q3: What operating system does it use?

+

-

A: It runs on the QNX Neutrino Real-Time Operating System (RTOS).

Q4: Is it suitable for hazardous locations?

+

-

A: Supports ATEX Zone 2 Group IIC certification environment.

Q5: Is the B suffix a revision identifier?

+

-

A: Yes, the "B" at the end of the model number indicates a revised version of the product. The model that has been discontinued is IS220PPRFH1A. You can replace it with IS220PPRFH1B.
