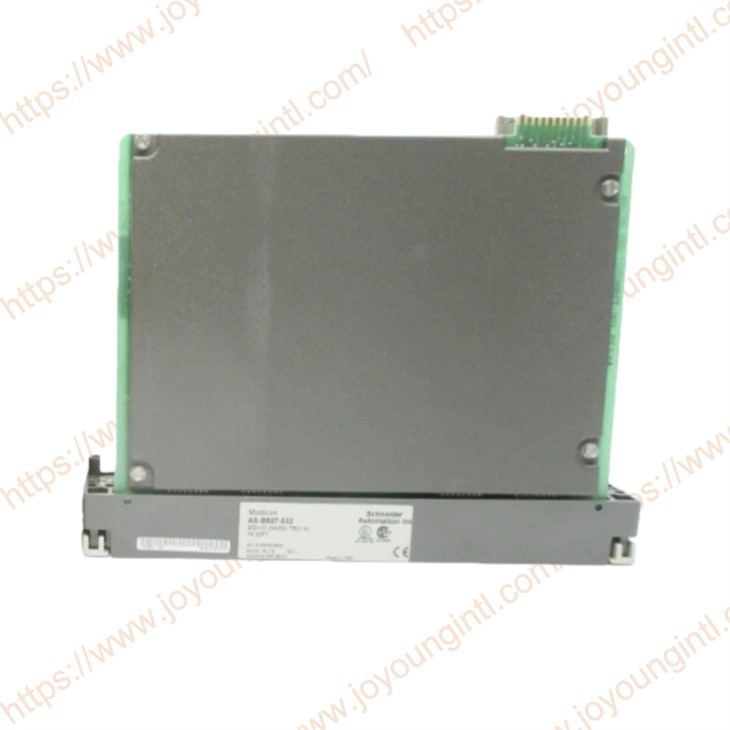

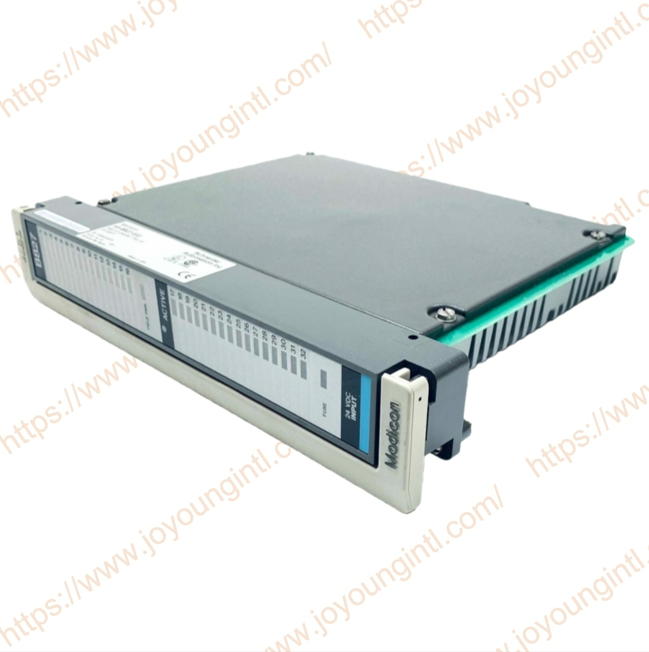

Modicon AS-B827-032 DISCRETE INPUT MODULE

AS-B827-032 is an input module designed for Modicon 800 series programmable logic controller systems. The module provides 32 digital input channels and is intended for industrial automation applications requiring reliable 24 VDC signal acquisition. It is typically installed in a Modicon 800 series I/O base and communicates input status directly to the PLC processor through the system backplane.





Brand	Modicon
Model	AS-B827-032
Part Number	AS-B827-032
Description	Input Module
Origin	France / USA
Dimension	35*20*10cm
Weight	0.3kg



Overview of the Overall Structure

The AS-B827-032 input module adopts a modular hierarchical structure design. Its internal structure can be divided into the following main functional units:

On-site input interface unit

Input signal conditioning and isolation unit

Logical judgment and data shaping unit

Communication and backplane interface unit

Status indication and self-check unit

Each functional unit works independently yet collaboratively to ensure that the module can achieve stable and accurate input signal collection in complex industrial environments.



On-site Input Interface Structure

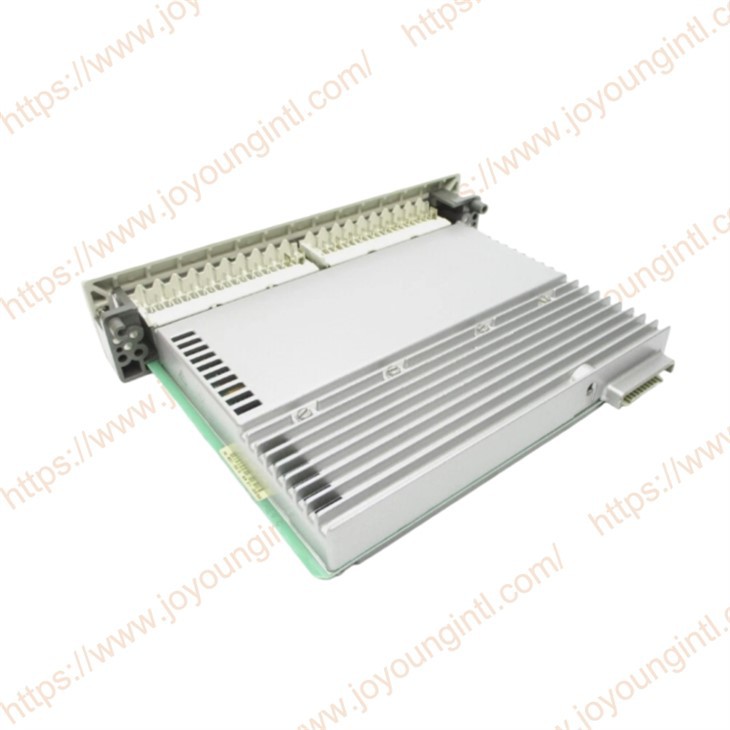

The front end of the module is equipped with a detachable terminal block, which serves as the physical interface between the field signal and the internal circuit of the module.

Structural features include:

Each input channel corresponds to an independent terminal position

The terminal block is connected to the internal circuit through a reliable plug-in structure

The layout of the input ports is clear, facilitating quick identification and wiring

This interface structure allows on-site wiring to be completed without disassembling the module body, improving installation and maintenance efficiency.



Input Signal Conditioning Unit

The input signal conditioning unit is one of the core functional areas of the module, and its main function is to preprocess the 24VDC signals from the site.

This unit mainly realizes the following functions:

Limit the current and protect the input voltage

Filter the input signal to suppress transient interference

Eliminate malfunctions caused by line jitter or contact jitter



Input channel grouping and internal management

AS-B827-032 input module divides the 32 input channels into two independent management areas, and each management area collects and processes its input status.

The advantages brought by group management include:

Improve the efficiency of data processing

It is convenient for system diagnosis and status location

Reduce the impact of a single-channel anomaly on other channels

This structure is particularly important in high-density input applications and helps enhance the overall reliability of the system.



Data cache and backplane communication structure

The input state after the logical conversion is temporarily stored in the data cache area inside the module and sent to the PLC controller through the backplane interface.

This communication process has the following characteristics:

Data transmission is accomplished through the PLC backplane bus

No additional communication cables are required

The input status is updated synchronously according to the system scanning cycle

The backplane interface structure ensures that the input data remains consistent with the PLC program execution.



Status indication and self-check structure

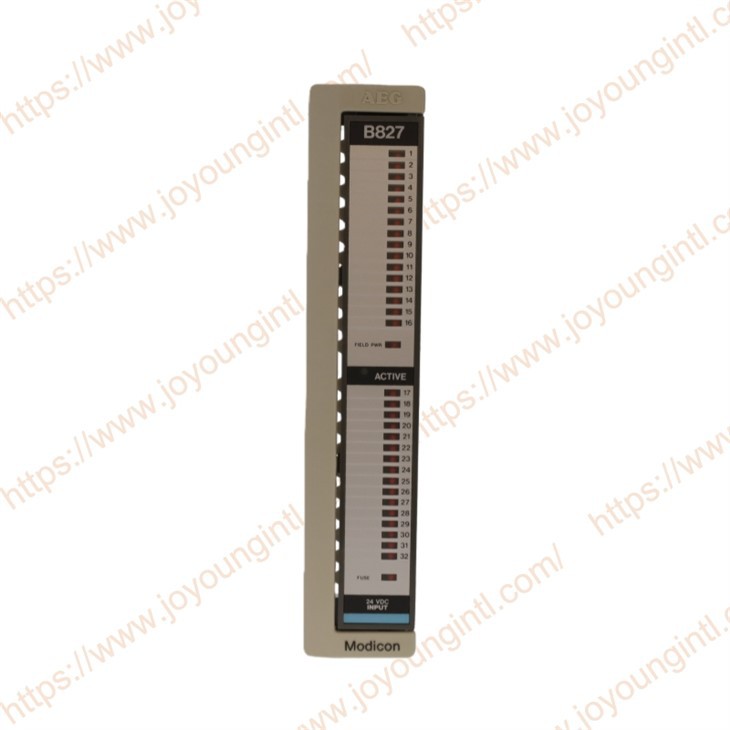

The front panel of the AS-B827-032 input module integrates a status indication and self-check circuit to reflect the current operating condition of the module.

The relevant functions include

The module self-checks upon power-on

Input channel status indication

Internal abnormal status prompt

Through these indication functions, maintenance personnel can quickly determine whether the module is in a normal working state.



Summary of the module operation process

The overall workflow of the AS-B827-032 input module can be summarized AS the following steps:

The on-site equipment outputs a 24VDC switch signal

The signal enters the module through the terminal block

The input conditioning and filtering circuit processes the signal

The isolation circuit separates the field side from the logic side

The logic determination circuit generates digital states

The status data is sent to the PLC through the backplane

PLC programs perform logical operations using input data

This process is executed in a loop within each PLC scanning cycle.
