Product Introduction

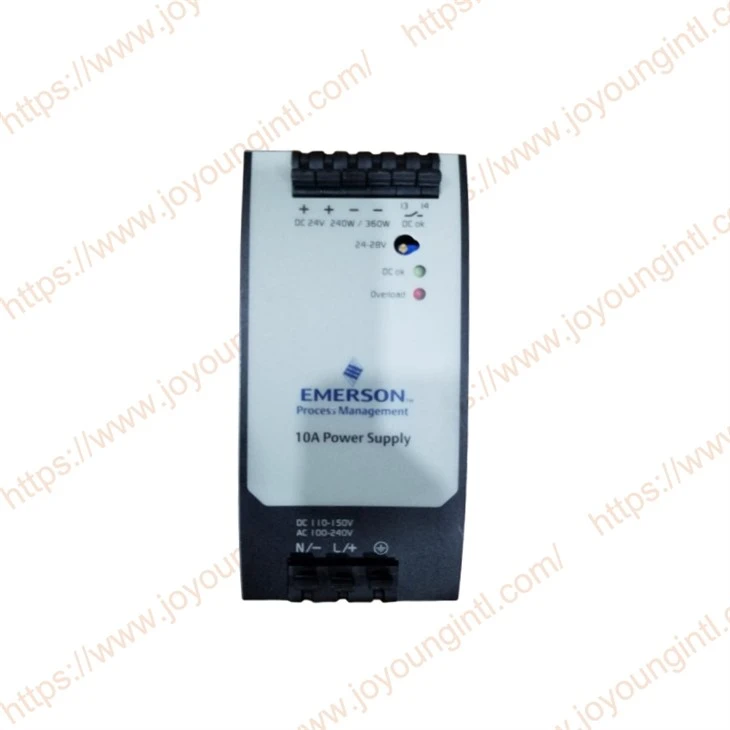

Emerson's 1X00781H01L DIN rail power module uses a stable power converter that can convert input power into the required output power, providing reliable power support for industrial automation control systems. The heat dissipation design can effectively reduce the internal temperature and extend the service life of the equipment.
Technical Specifications
|
Manufacture |
EMERSON |
|
Model |
1X00781H01L |
|
Part Number |
1X00781H01L |
|
Description |
OVATION DIN-RAIL POWER SUPPLY, 24VDC, 10A |
|
Origin |
China |
|
Dimension |
24*17*6cm |
|
Weight |
0.3kg |
Product Details
Emerson has developed a DIN-rail mounted power supply incorporating four modular fanless powering systems to provide reliable and stable power to the Ovation™ controller and I/O modules.
Ovation™ Power Supply System Features:
▪ Redundant power configurations, each with separate external wide-range AC or DC feeds
▪ Separate main and auxiliary supplies in both the primary and secondary configurations
▪ Dual wide-range input capabilities
▪ Diode auctioneered power feeds
▪ High-efficiency power supplies
▪ Modular fanless systems
▪ Redundant power feeds to each controller chassis and to the I/O modules
▪ Continuous system monitoring
The Ovation controller powering system uses redundant configurations, each with separate, external wide-range AC and/or DC input feeds. Dual diode auctioneered 24 VDC outputs are used to power each controller chassis and associated I/O modules, as well as loops and contact wetting to the I/O modules. If required a 48 VDC auxiliary power for loops and contact wetting can also be provided.
Two separate output schemes are available:
▪ 24 VDC / 10 A / 240 W main and 24 VDC / 10 A / 240 W auxiliary power
▪ 24 VDC / 20 A / 480 W main and 24 VDC / 20 A / 480 W auxiliary power
RELATED PRODUCTS
Powering Module Characteristics
| 10 A, 24 VDC Powering Module Characteristics (1X01046) | |
| AC and DC Inputs | |
| Nominal AC Input Voltage | 100 - 240 VAC |
| AC Input Voltage Range | 85 to 264 VAC |
| DC Input Voltage Range | 90 to 375 VDC |
| Frequency | 43 to 67 Hz |
| Nominal Current | 3.2 – 1.0 A |
| Efficiency | > 90% typ. (24 W) |
| Inrush Current (max) | Typ. < 30 A |
| Power Factor Correction | Active power factor correction to better than 0.92 |
| Voltage Phase Type | Single phase (AC voltage) |
| DC Outputs | |
| Nominal Voltage | 24 V (23.5 ~ 28.5 VDC adjustable) |
| Tolerance | < ±2% overall |
| Initial Voltage Setting | 24.5 V ± 1% |
| Output Ripple | < 50 mVpp (20 MHz, 50 Ω) |
| Overvoltage Protection | > 30.5 but < 33 VDC, auto recovery |
