BENTLY NEVADA 133300-01 3500/15 DC I/O Module

BENTLY NEVADA 133300-01 3500/15 DC I/O Module

Item Number:133300-01
Brand: BENTLY NEVADA
Price: $600
Lead Time: In stock
Condition: New
Payment: T/T
Shipping Port: Fujian, China
Send Inquiry
Description
Technical Parameters
133300-01 BENTLY


133300-01 3500/15 Low-voltage DC Power Supply Input Module, used for Bently Nevada 3500 series mechanical protection system. 133300-01 is mainly composed of the following core components:
--Input Interface Unit --Filtering and Protection Circuit
--DC/DC Conversion Unit (Conversion Stage)
--Monitoring and Feedback Circuit



 Single power supply mode
A 133300-01 + power module combination



 Dual power supply redundancy mode
Installation with dual slots on top and bottom
Automatic primary and backup switching



Technical Specifications



Manufacture

BENTLY NEVADA

Model

3500/15

Part Number

133300-01

Description

Low Voltage DC Power Supply Module

Module structure Half-height module
Installation method Left side of the rack

Origin

USA

Dimension

16*16*12cm

Weight

0.34kg





Installation

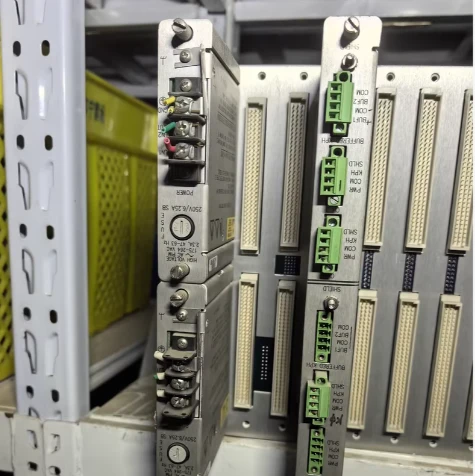

The 133300-01 Low Voltage DC Power Supply Module is a half-height module and must be installed in the designated slot on the left side of the rack. When two power supplies are installed, the power supply in the lower slot acts as the primary power supply, and the power supply in the upper slot acts as the backup power supply.


01


The 3500 system supports a dual power supply redundancy configuration:
The lower power supply is the main power supply.
The upper power supply is the backup power supply.


02


Half-height modular design
Half-height structural design
Installed in the dedicated slot on the left side of the rack
Supports hot swapping (in redundant mode)
