Product Introduction
ABB YPQ112B DDCS circuit board has RS-485 interface and supports Modbus RTU communication protocol, which is convenient for data exchange with other devices. It can monitor various variables in industrial production process, such as temperature, pressure, flow, etc.
Technical Specifications
|
Manufacture |
ABB |
|
Model |
YPQ 112B |
| Part Number | 63986780 |
|
Description |

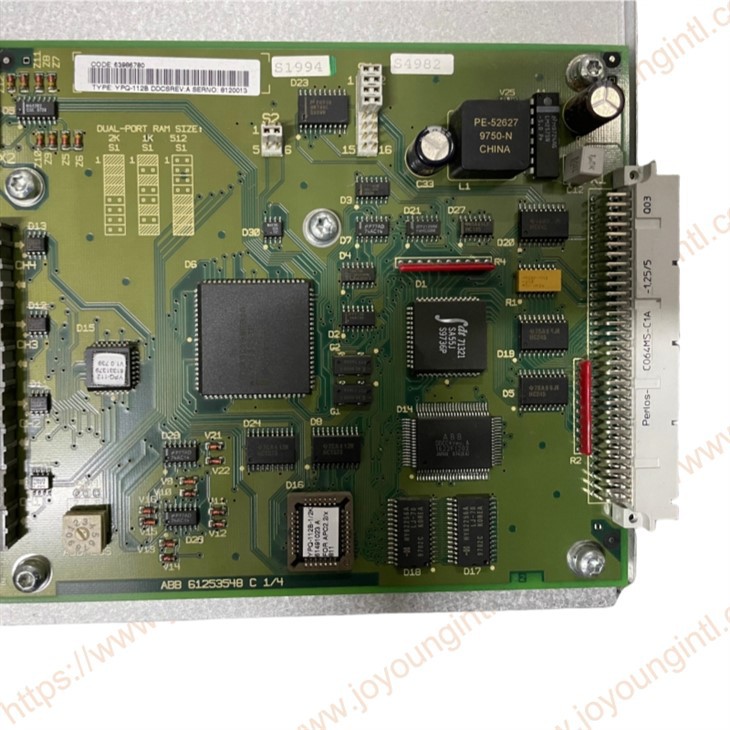

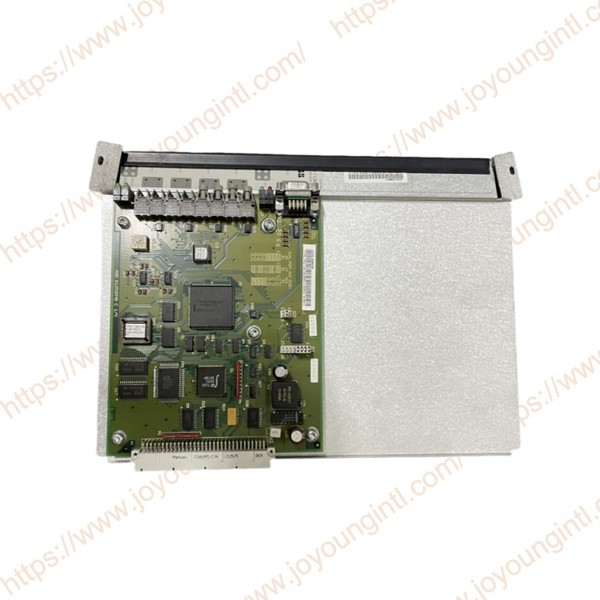

DDCS CARD |
|
Origin |
England |
|
Dimension |
25*18*5cm |
|
Weight |
0.35kg |
Product Details

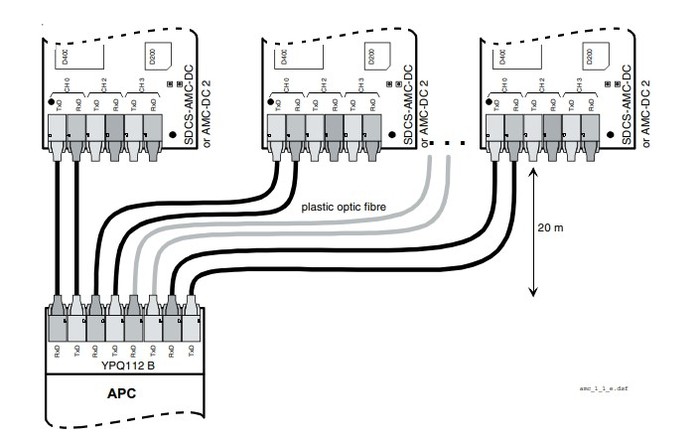

ABB YPQ112B is used for ACS880 DDCS drive system.Communication protocol is different in ACV700 than ACS880. ACV700 uses Drive Link and ACS880 DDCS. Due to different protocol an additional YPQ112B DDCS communication interface board is needed to add to existing APC2 hardware. One board includes four optic channels for drives.
YPQ board must be connected to existing APC rack and due to that there must be an empty slot available. If not, the APC rack must be replaced with a larger one. There are APC racks with 1-5 slots available.
Note that APC2 cannot control the ACS880 as such. The APC2 SW needs also reprogramming by APC application specialist. Communication blocks, handling of command-, status-, fault word etc. must be changed to correspond ACS880 SW. Additionally new YPQ112B board must be configured into the APC program.
Control system
The existing types of the control systems are mentioned below. It is strongly recommended that the control systems in obsolete or limited life cycle phase to be replaced with a new control system.
· SELMA(with SAMI STAR)
·APC (with ACV700 drive units).
· AC80 & AC800M(with ACS600 drive units)
· Fieldbus Interface：All latest fieldbus communication modules are available and possible for ACS880 retrofit solution. Needed type must be defined according to the used Fieldbus protocol by LABB or customer. Fieldbus adapters are attached onto an empty slot of ZCU/BCU control board. Please note that the older N-type options and R-type used with ACS600/ACS800 are not compatible with ACS880.
· I/O control：If extra Digital I/O or Analog I/O extension modules are required, needed type and amount are to be defined by LABB or customer. Extension modules are usually attached onto an empty slot of ZCU/BCU control board.
