Technical Specifications
|
Manufacture |
ABB |
|
Model |

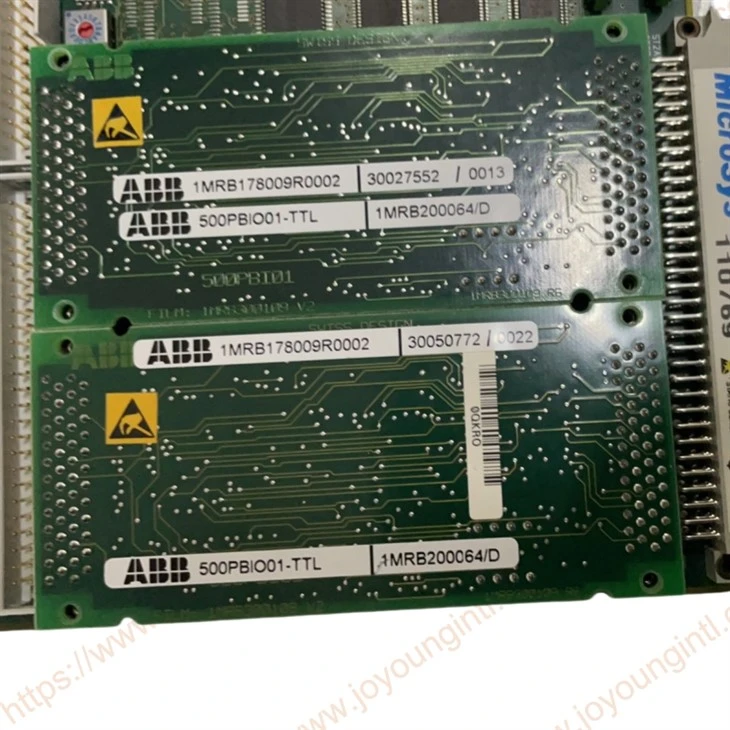

500CPU03 1HDF700003R5122 |
| Part Number | 500PBIO01-TTL 1MRB178009R002 |
|
Description |
Processor module |
|
Origin |
Switzerland |
|
Dimension |
35*30*8cm |
|
Weight |
0.55kg |
Product Details
REC 580 is a numerical multifunction control terminal for the automation of gas-insulated switchgear and complex outdoor high-voltage substations. It performs control and automation functions for the High Voltage switchgear bays. Simple configurable standard functions and macros enable specific user requirements to be implemented quickly and reliably. The terminal is configured using a graphical programming language conforming to IEC 61131.
A REC 580 is also a cost-effective replacement for logic modules, control contactors, interlocking relays, control boards and alarm tables in conventional switchgear bay control systems. It also eliminates the associated wiring on a massive scale.
The terminal is able to communicate with other bay control units, protection relays in the bay, telemetering stations or other devices via the station bus interface, providing they are also equipped with the same interfaces as the REC 580. It can also be fully integrated in a central substation control system.
The REC 580 bay control terminal supports the connection to process interfaces with advanced sensors and actuators (PISA), and conventional sensors (CT and PT) and operating mechanisms.
The command sequences and the correct operation of the switchgear are performed with supervision and safety according to industry standard requirements for personnel and equipment security.
The primary system variables current, voltage, active and reactive power, power factor and frequency are available for load measurements. Provision is also made for transmitting metered power values or power counting impulses to the central substation control system.
The bay control terminal REC 580 is an integral part of the PANORAMA station automation system.

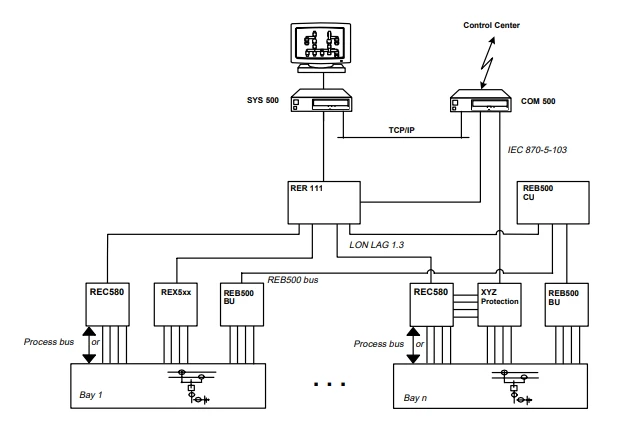

The integration of the bay control terminal in the PANORAMA substation automation system
COM Communication unit
REB/CU Busbar protection/central unit
REB/BU Busbar protection/bay unit
REC Bay control unit
RER Optical Star Coupler
REx 5xx ABB bay-related protection
SYS Station computer
XYZ protection non-ABB bay-related protection
(non-ABB protection may be connected either via parallel wires or via IEC 870-5-103 interface)
