Product Introduction
Technical Specifications
|
Manufacture |
ABB |
|

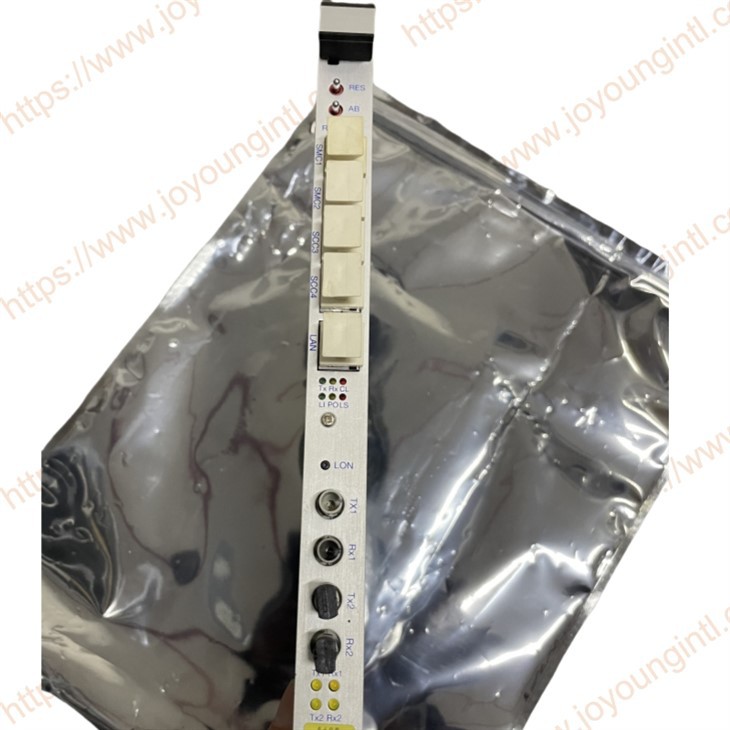

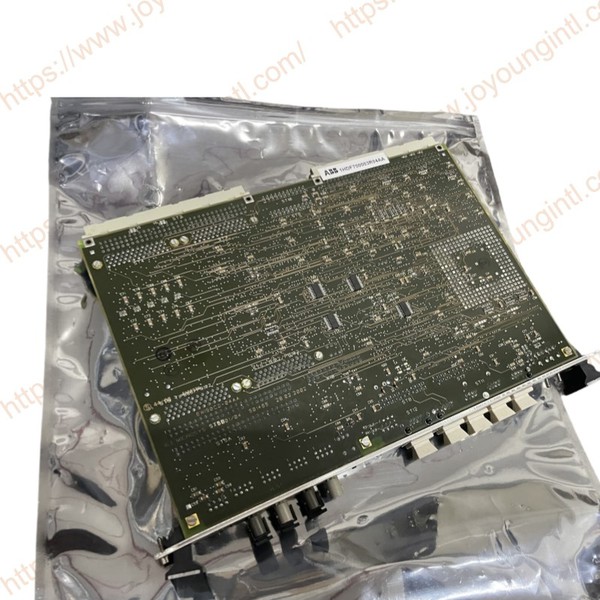

Model |
500CPU03 |
| Part Number |
1HDF700003R5122 500PBIO01-TTL/500LBI02 |
|
Description |
Processor module |
|
Origin |
Switzerland |
|
Dimension |
35*30*8cm |
|
Weight |
0.55kg |
Product Details

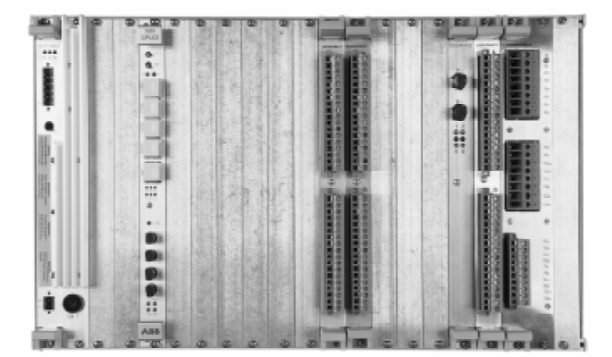

The bay control terminal REC 580 is a numerical control device for the automation of complex high-voltage substations. It is a product in the ABB PANORAMA station automation system.
Because of its modular structure, the unit can be adapted to suit the specific station layout and the modular architecture is designed for parallel processing. The unit has a station bus (LON) and a process bus (MVB) interface. Actuators and sensors can be connected via the process bus.
Application
• Suitable for all types of substations, gasinsulated switchgear (GIS) and outdoor substations (AIS)
• Intended for new substations or modernisation of existing substations
• For installation in the bay cubicles or in separate control cubicles remote from the bay, with or without local control display
• Effective replacement for conventional control circuits using logic modules, relays and associated wiring, control board and alarm annunciator
• Connection to the process via direct I/O's in the bay unit or advanced sensors and actuators integrated in the switchgear via the process bus.
Control functions
• Control of circuit-breakers, isolators, earthing switches and fast earthing switches
• Automation of
- Tap-changers and power transformer regulators for parallel transformers, grounding inductors (Petersen coils) and capacitor banks
- Switching sequences, e.g. switching between busbars
- Implementation of specific user functions
• Determination of status and supervision of plausibility
• Monitoring and forcing of signals • Duplicate or single output signals
• Generation of set-points
• Supervision of switchgear operating times
• Internal bay interlocking
• Interlocking between bays with exchange of signals via the station bus (LON).
